The Functions in `gamlss.ggplots`

Authors

Affiliations

De Bastiani, F.

Federal University of Pernambuco, Brazil

Heller, G.

University of Syndey, Austalia

Kneib, T.

University of Gottigan, Gernany

Mayr, A.

University of Marburg, Gernany

Julian Merder

University of Canterbury, New Zealand

Rigby, R. A.

University of Greenwich, UK

Stasinopoulos, M. D.

University of Greenwich, UK

Stauffer, Reto

University of Innsbruck, Austria

Umlauf, N,

University of Innsbruck, Austria

Zeileis, A.

University of Innsbruck, Austria

Introduction

Packages

This booklet provides an overview of the R package gamlss.ggplots and its functions, focusing on their use and the output they generate.

The gamlss.ggplots package offers a set of ggplot2-based visual tools for diagnostic and exploratory plots specifically tailored for models fitted using gamlss() and gamlss2(). Most of the functions in this package are compatible with both model types, making them broadly useful across the Generalized Additive Models for Location, Scale and Shape framework.

Supported Model Objects

gamlss — the original modeling interface for GAMLSS
gamlss2 — a modern interface with cleaner formula syntax and streamlined model handling

Versions

The latest versions of the key packages are:

rm(list=ls())
#getRversion()
library(gamlss)
library(gamlss2)
library(ggplot2)
library(gamlss.ggplots)
library("dplyr")
packageVersion("gamlss")

[1] '5.5.1'

packageVersion("gamlss2")

[1] '0.1.0'

packageVersion("gamlss.ggplots")

[1] '2.1.22'

Overview

Originally, the package gamlss.ggplots included all the functionality currently split between gamlss.ggplots and gamlss.prepdata. Due to maintenance challenges caused by the growing size and complexity of the package, it was divided into two separate components:

- `gamlss.ggplots` — visualization and diagnostics

- `gamlss.prepdata` — data preparation utilities

At this stage, gamlss.ggplots is experimental. Some functions are not yet exported (i.e., “hidden”) to allow for further testing and validation. These hidden functions can still be accessed using the triple-colon syntax:

gamlss.ggplots:::function_name()

Function Categories

Functions in gamlss.ggplots can be broadly classified into three categories:

1. Before-fitting a model functions

Most if the before-fitting a model functions are moved to gamlss.prepdata package but few visualizing distribution families are remaining. Distribution relatated function names begin with family_Name() - Example: family_pdf(NO) which plots the density distribution from the Normal GAMLSS family.

2. After-fitting a model functions

These functions are used after a model has been fitted, providing diagnostics, interpretation aids, and predictions.

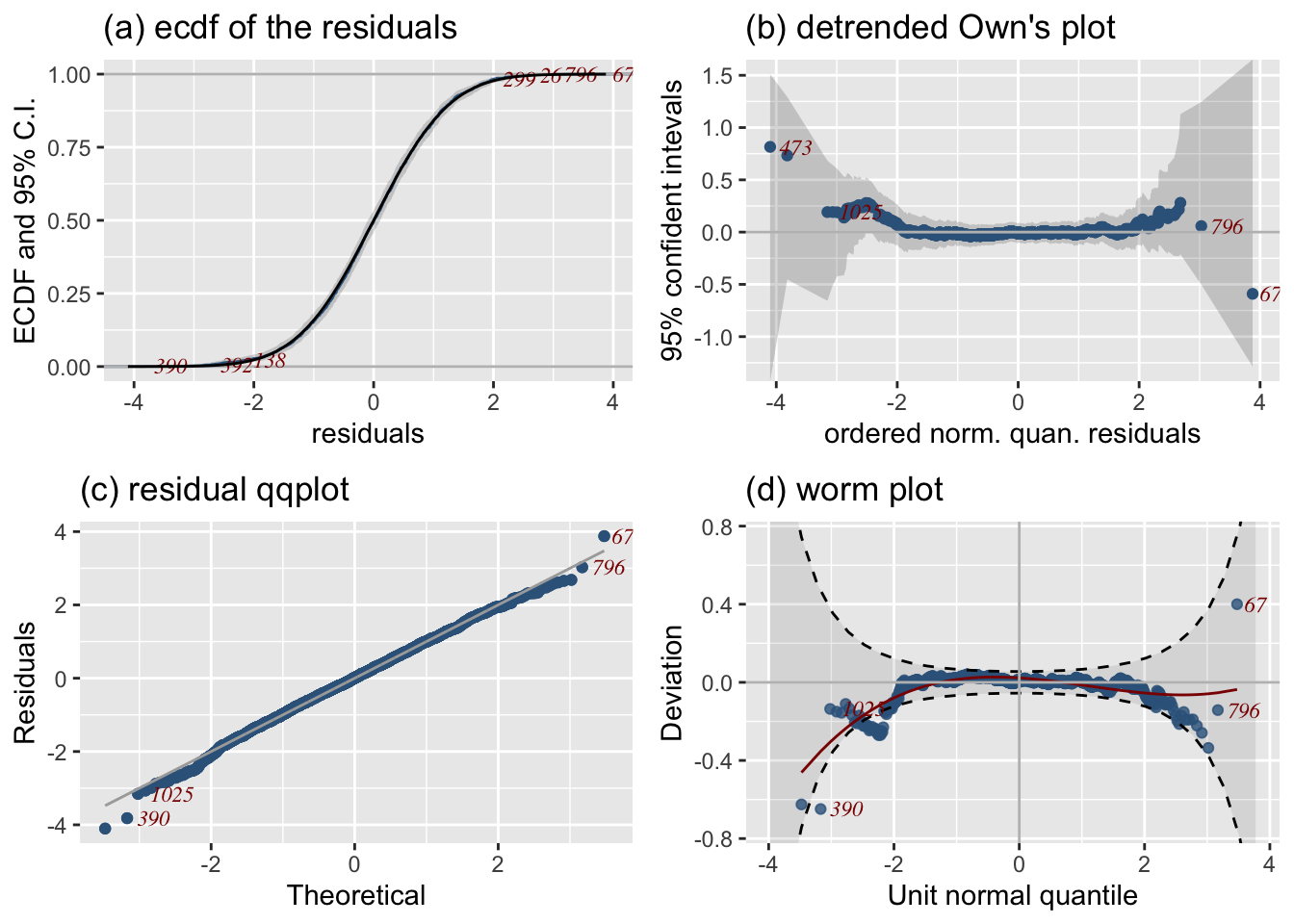

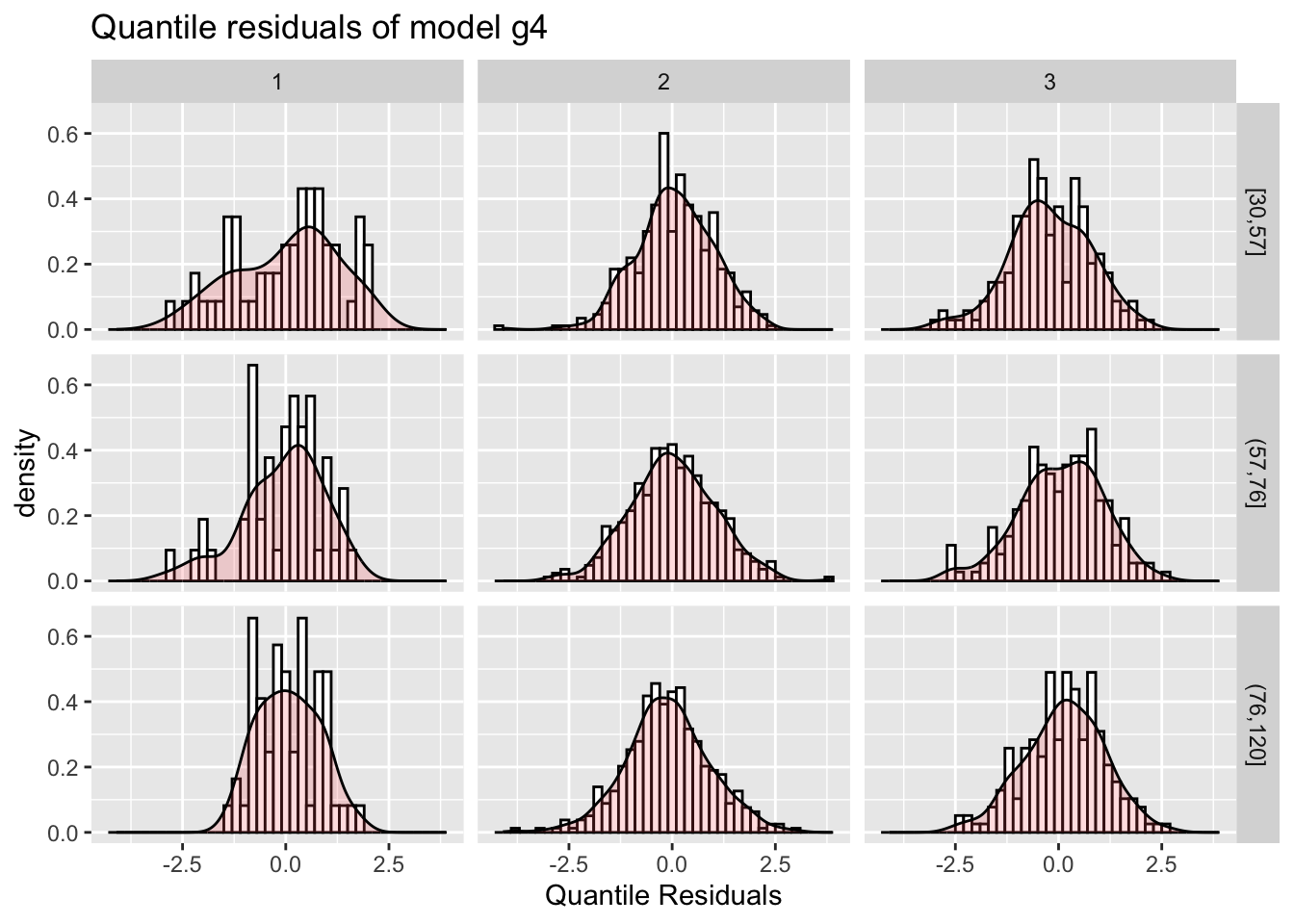

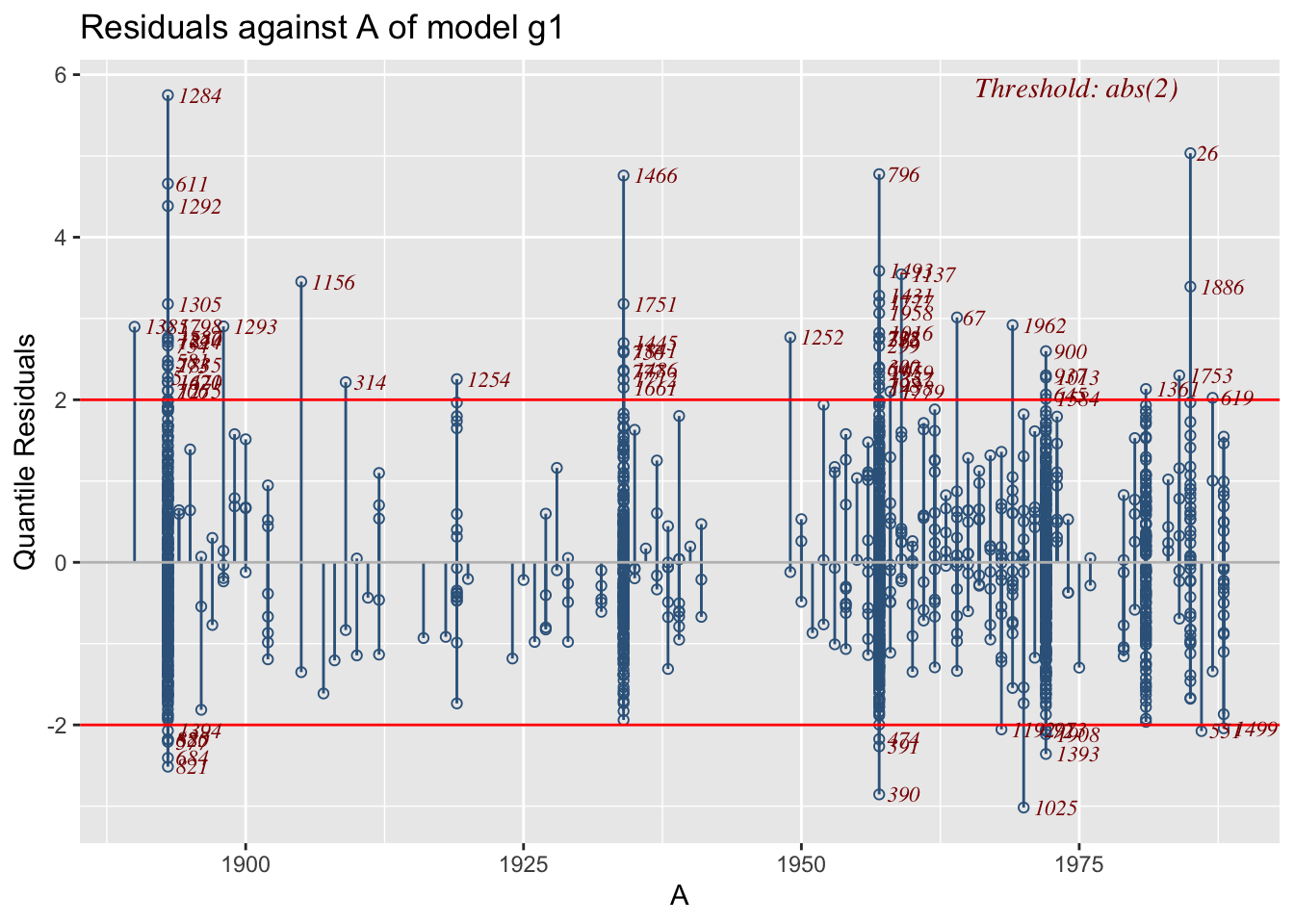

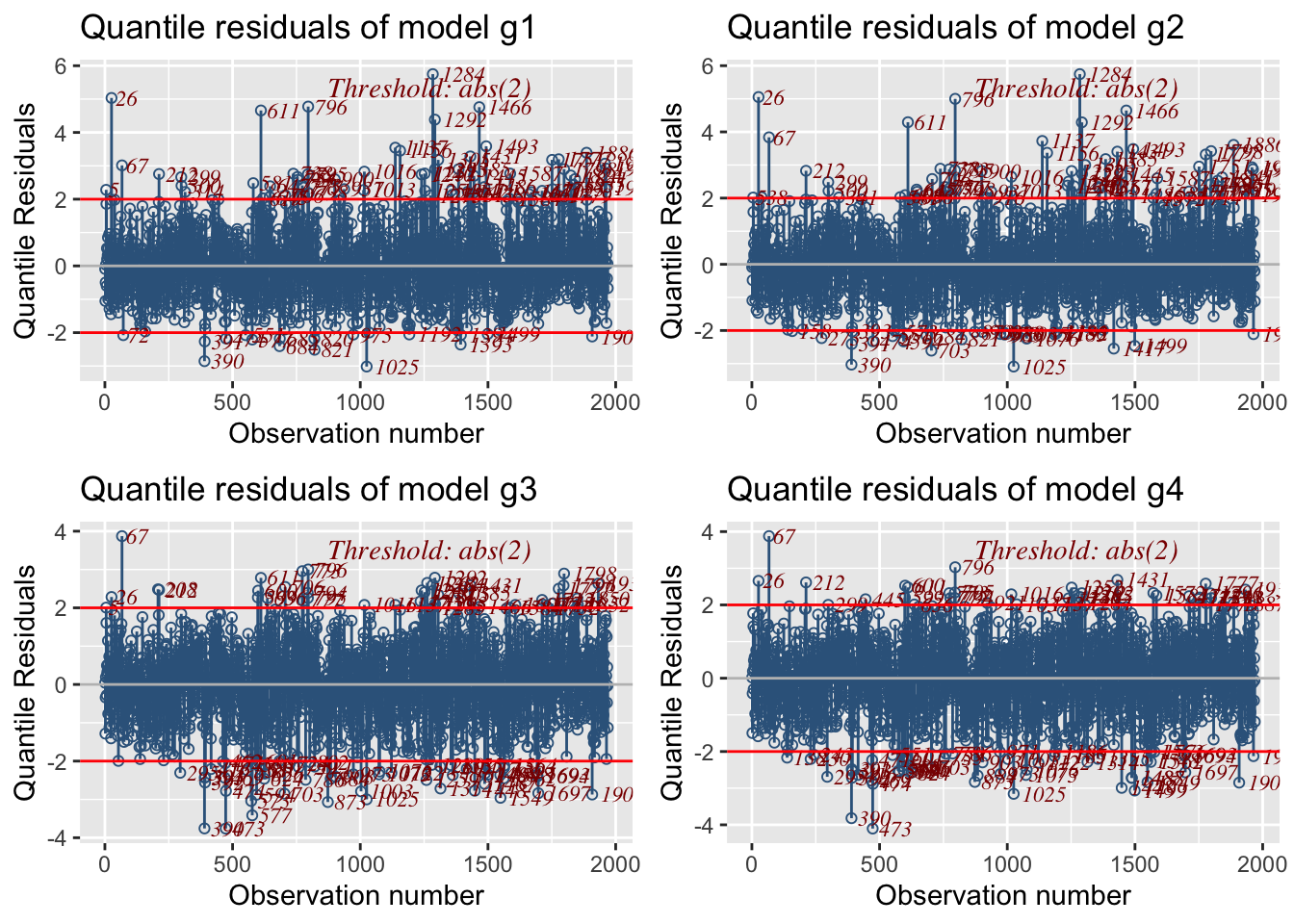

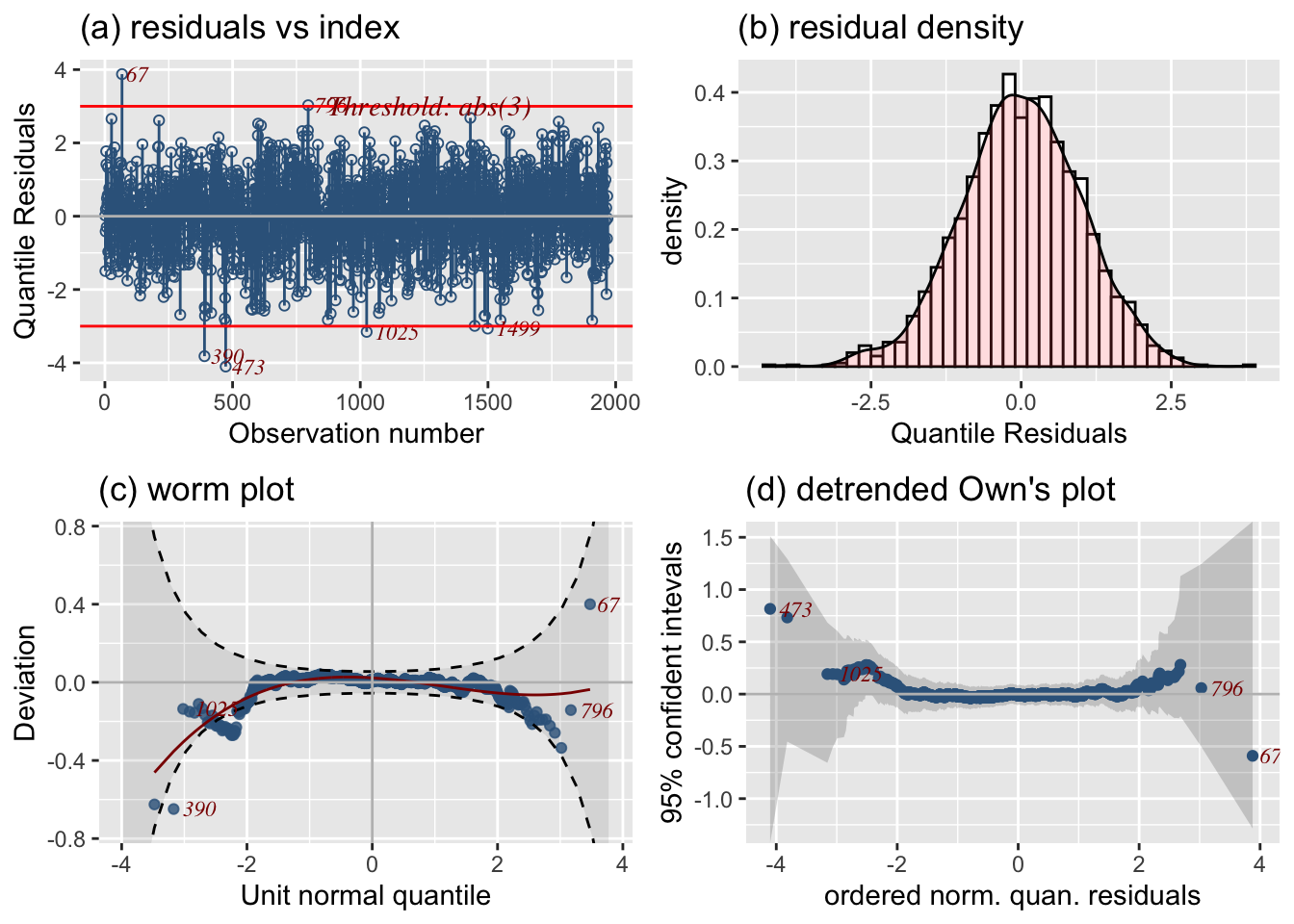

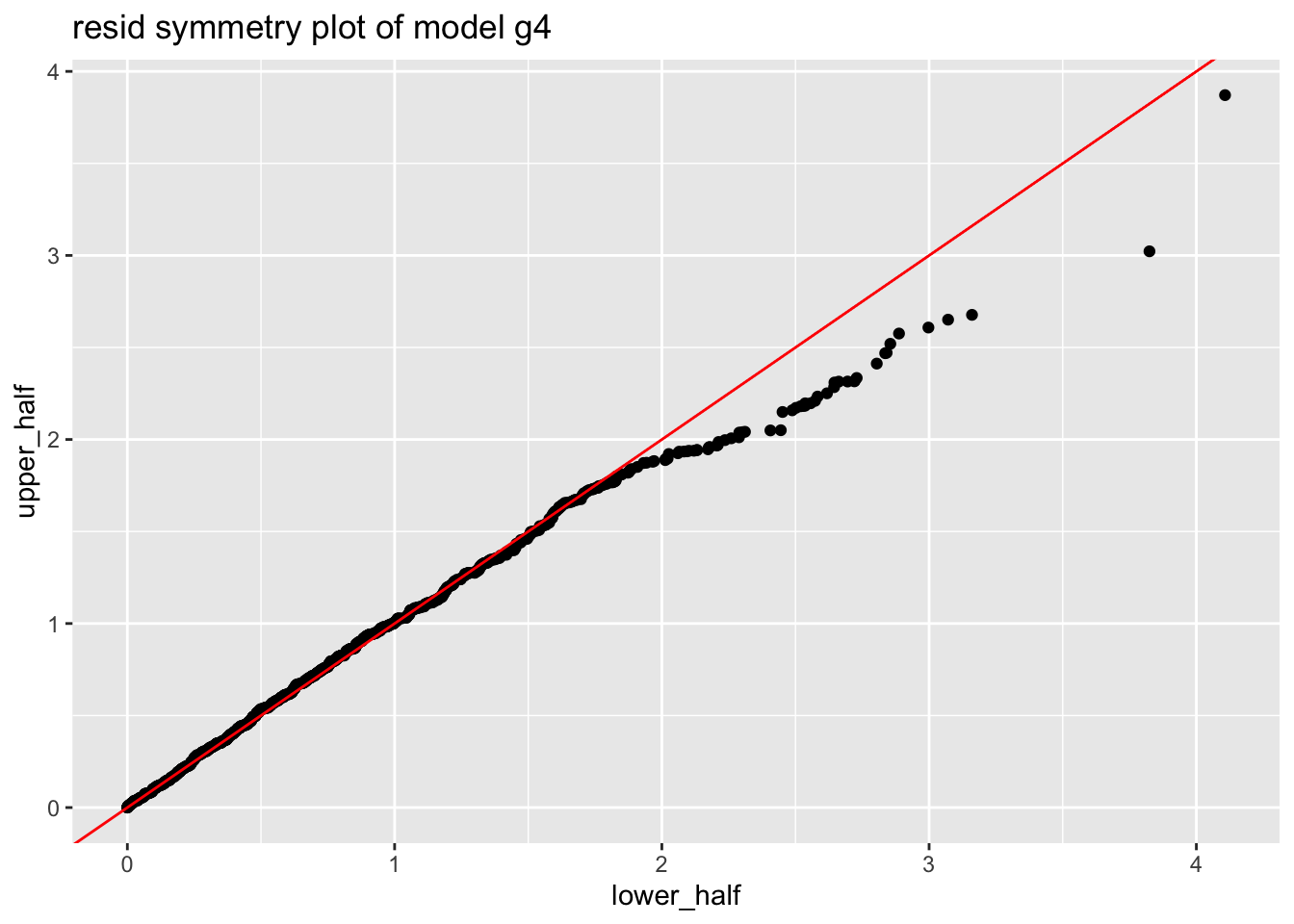

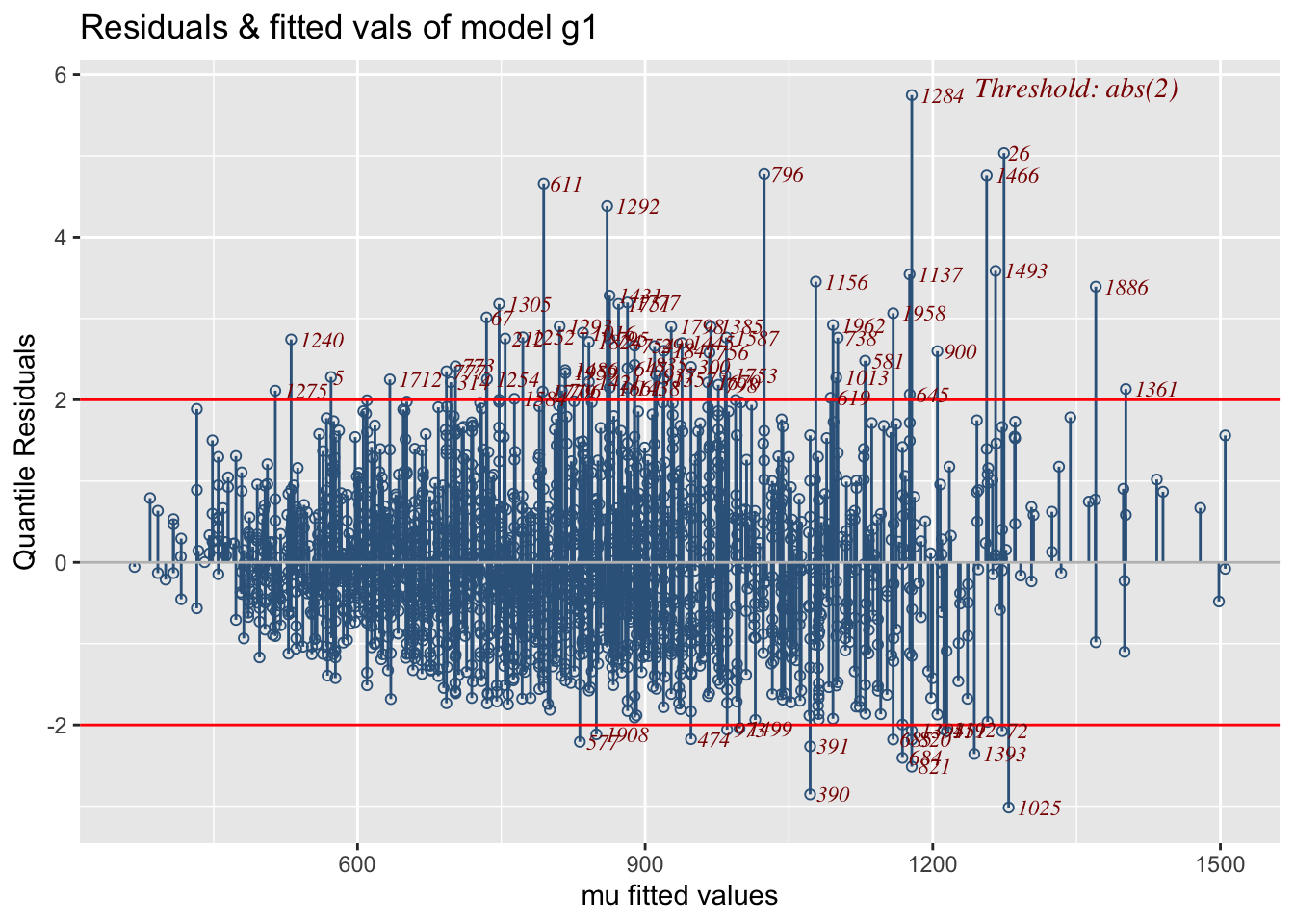

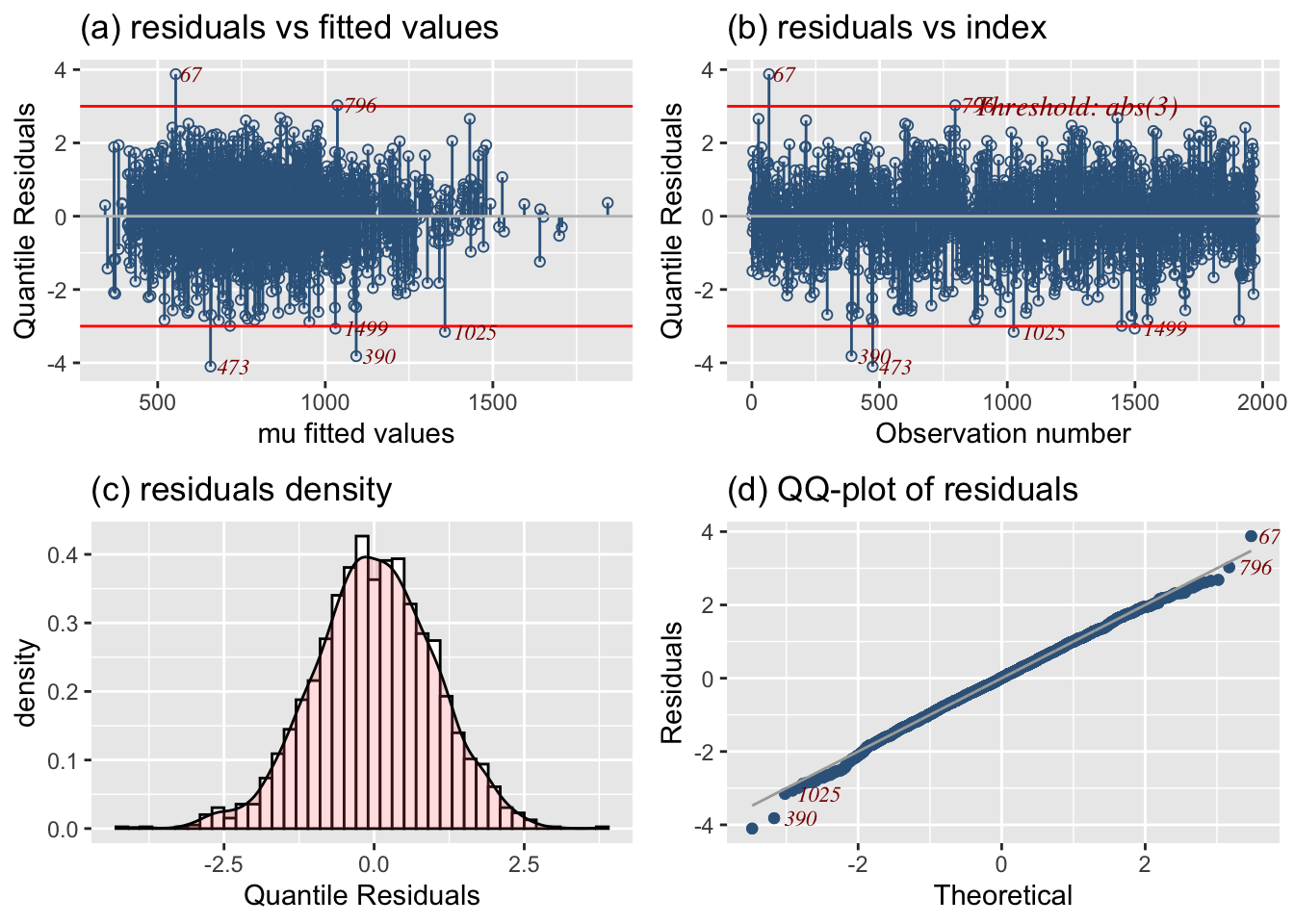

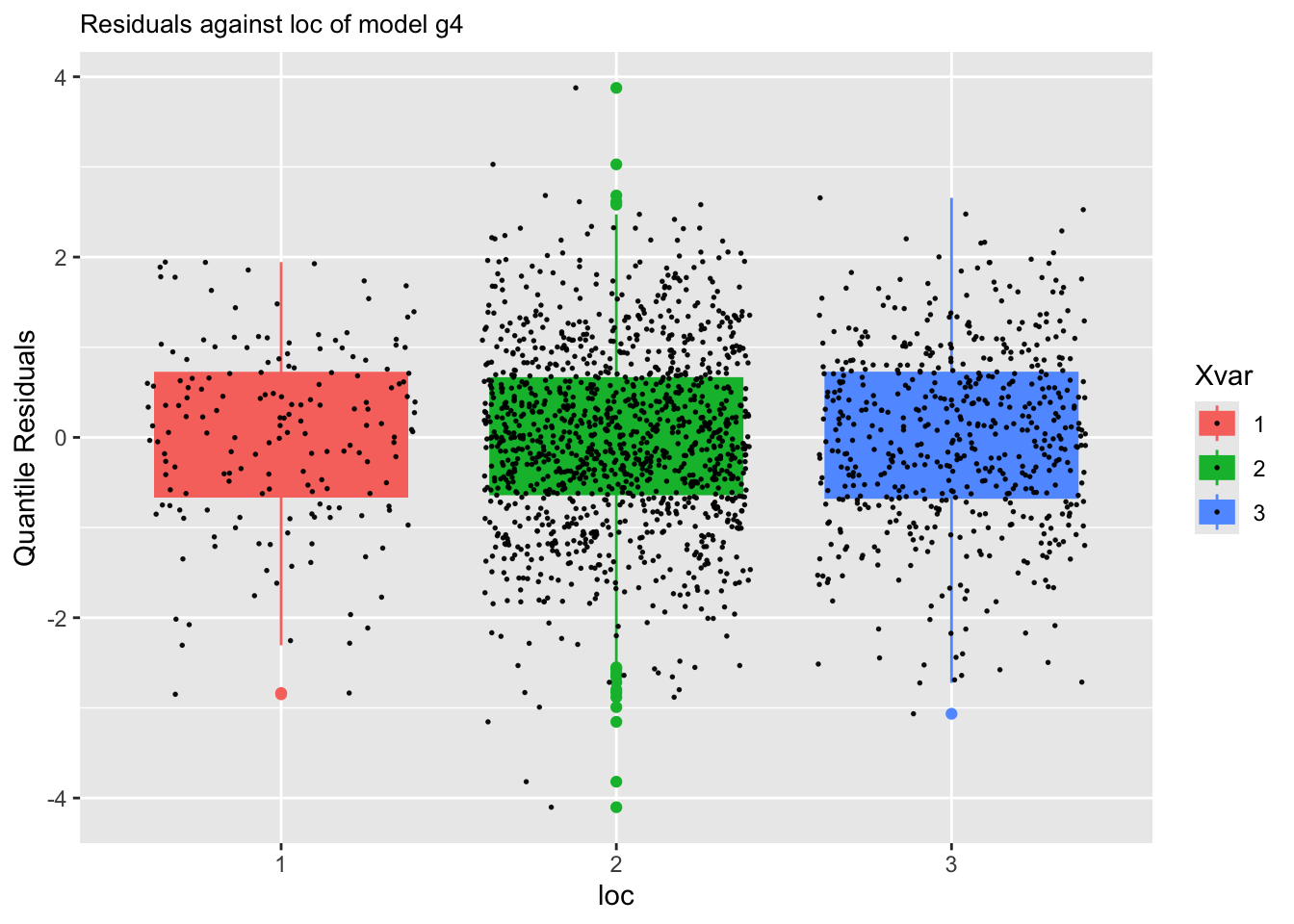

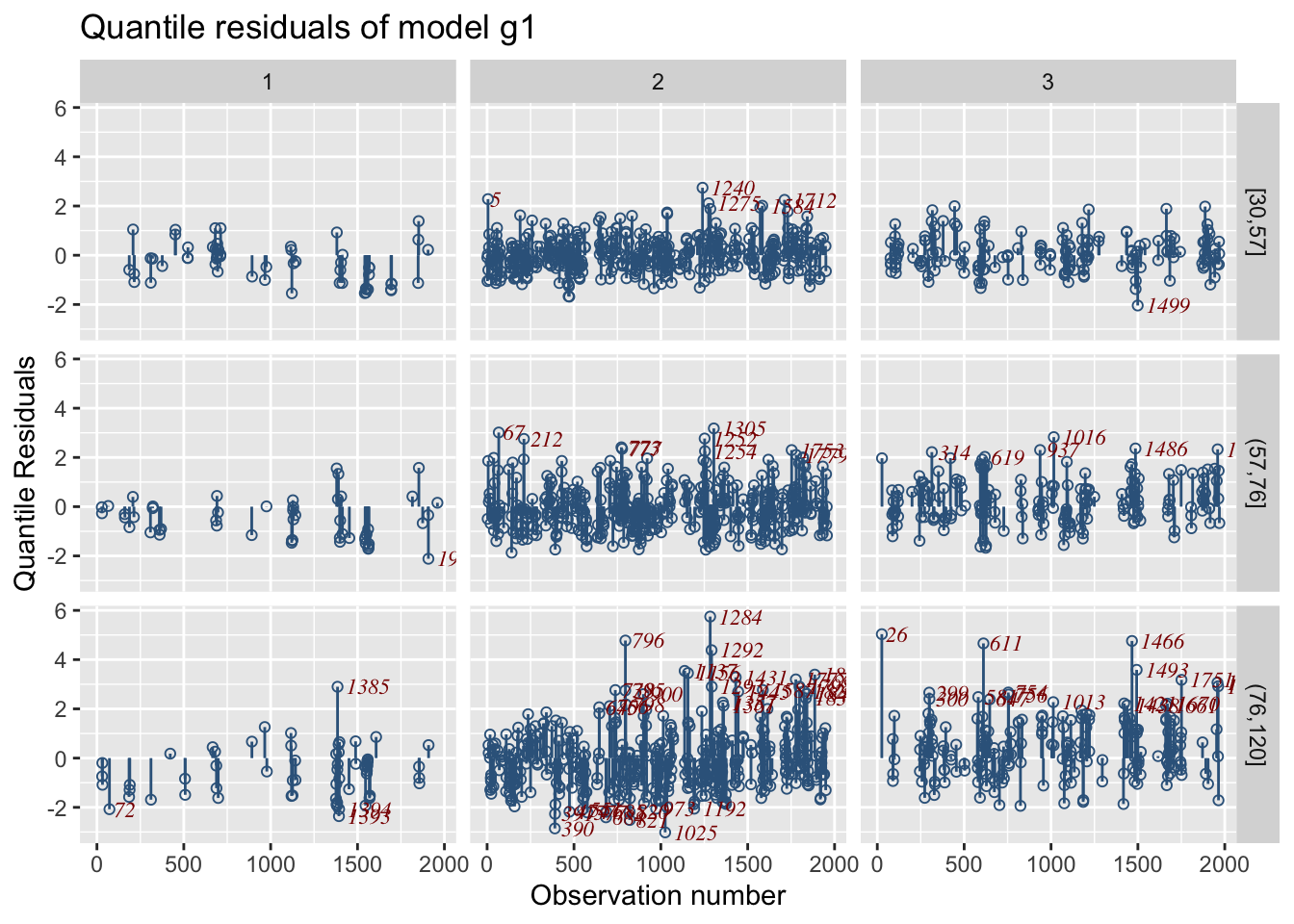

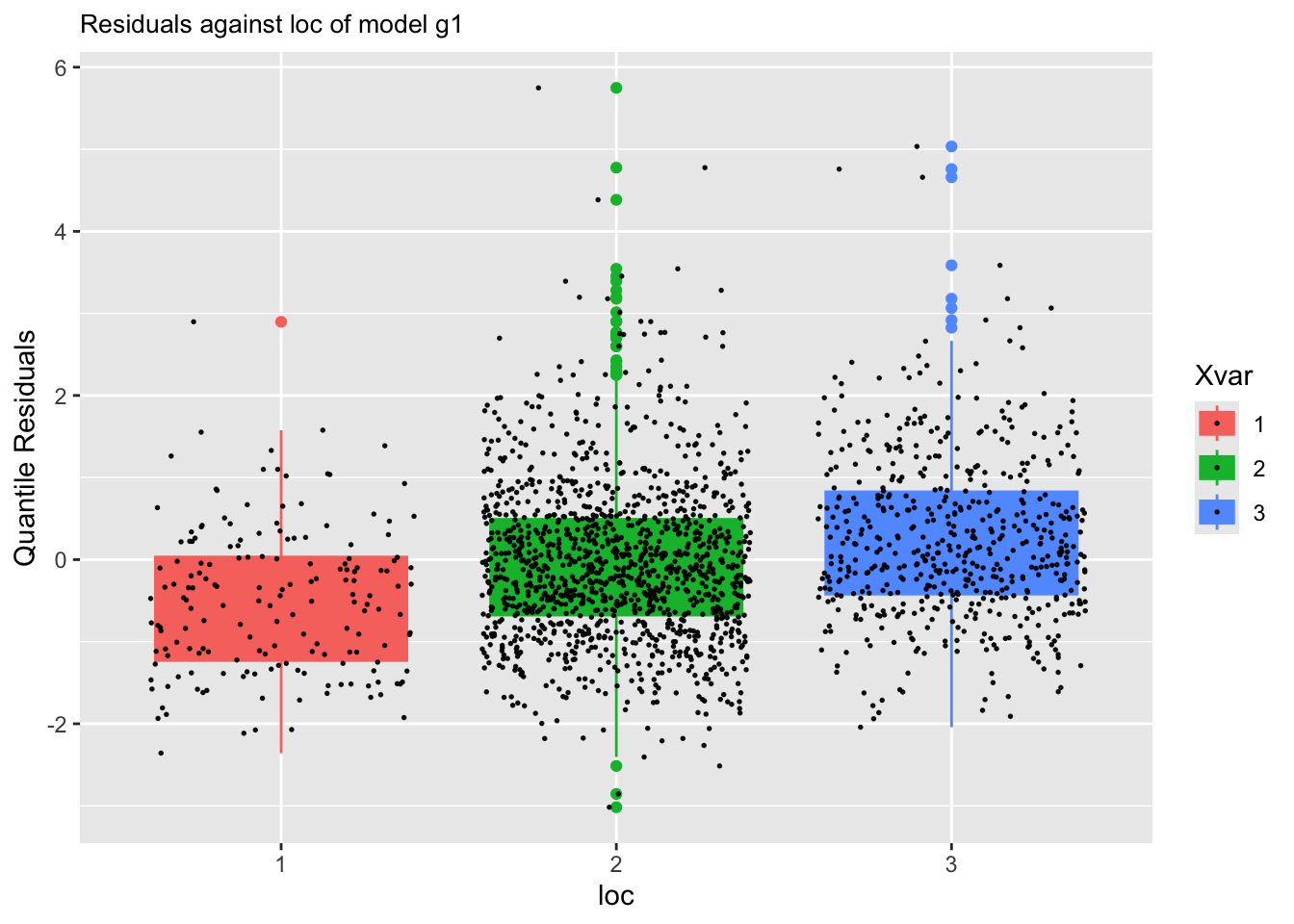

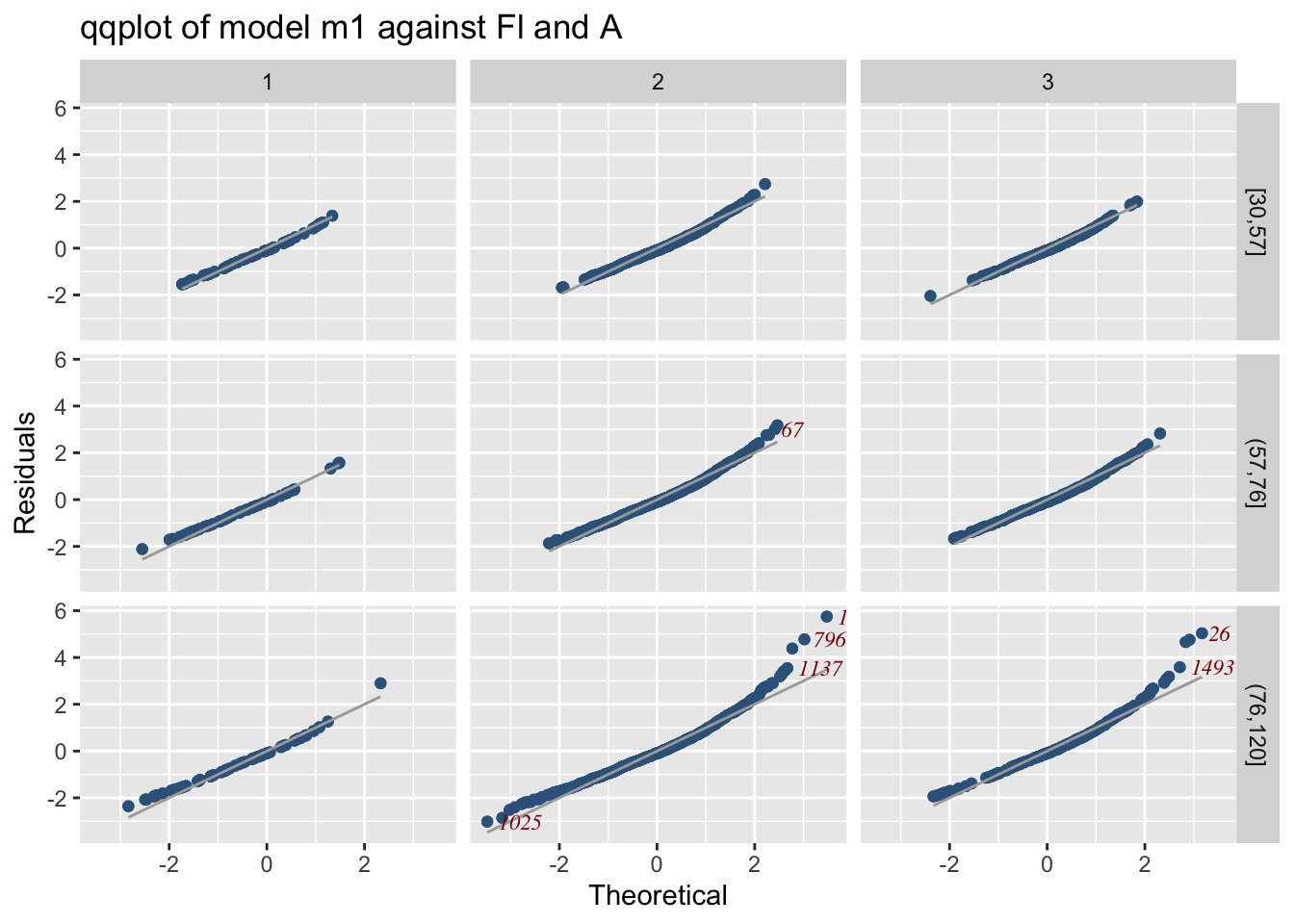

Residual-based diagnostics - resid_NAME() – Diagnostics on residuals E.g., resid_wp() produces a worm plot for assessing the distribution.

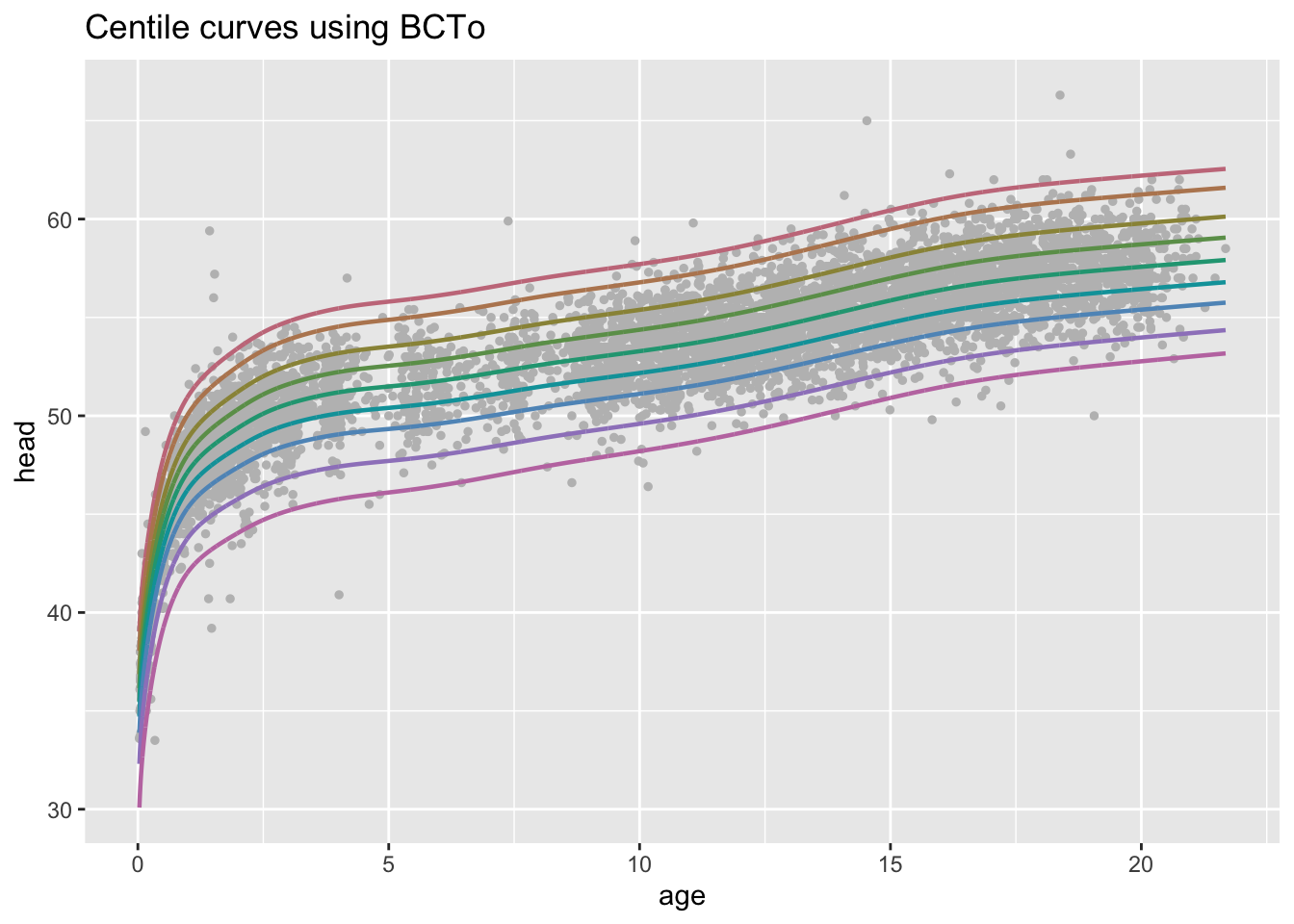

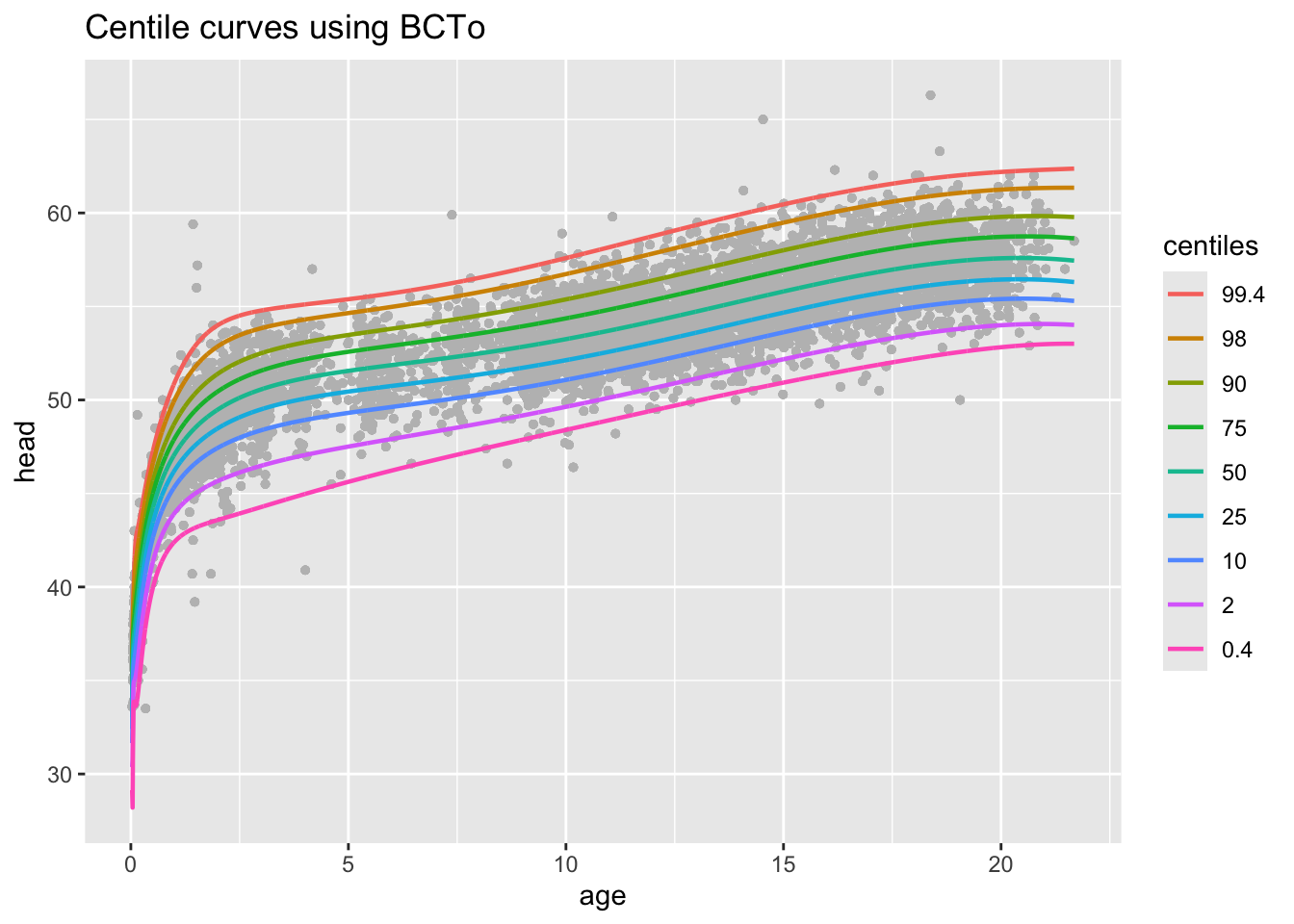

Fitted value visualizations - fitted_NAME() – Visualizes fitted parameters ($\mu$, $\sigma$, etc.) from a fitted model.

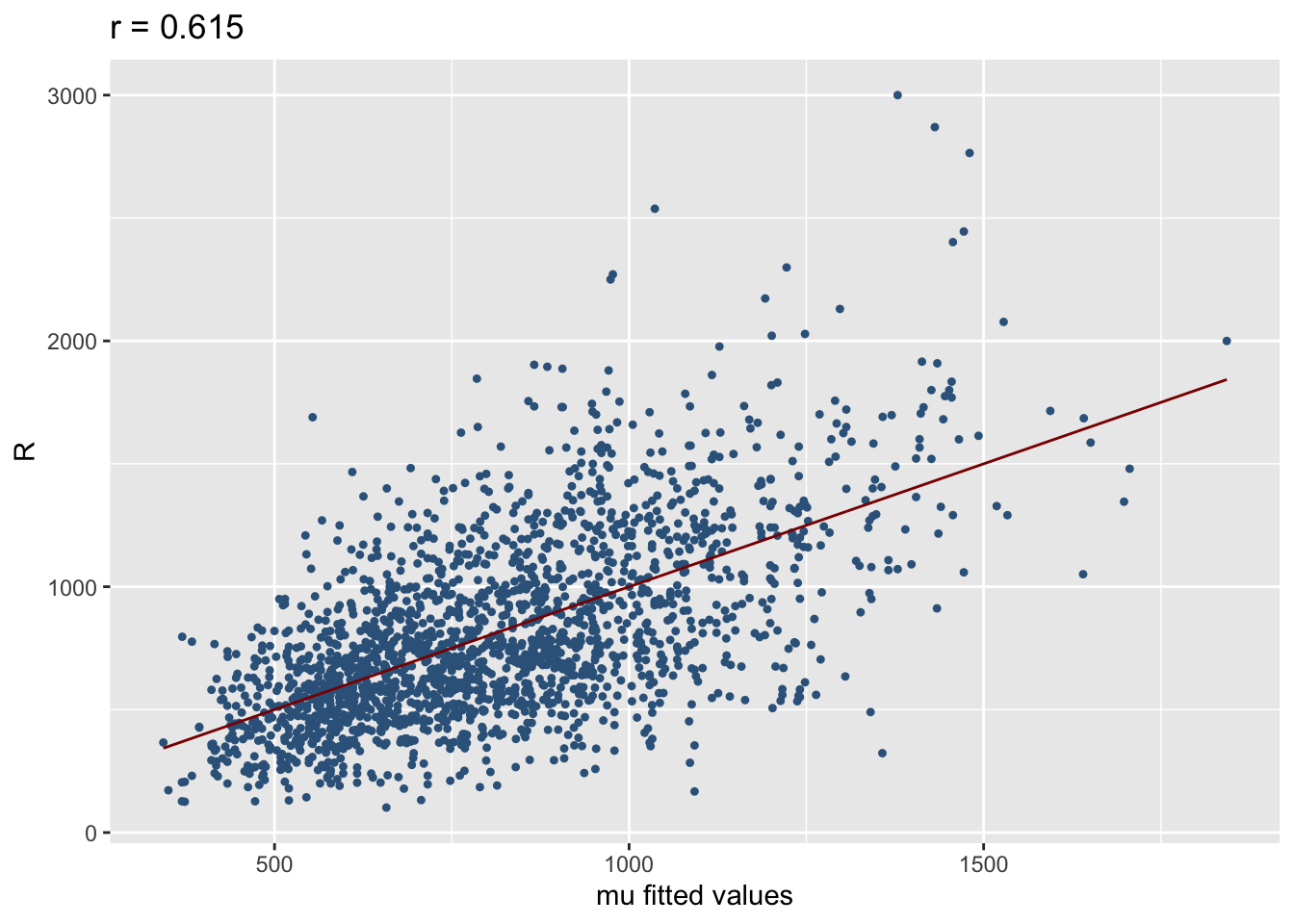

Response variable plots resp_NAME() – Plots the response variable against various model-based quantities such as parameters or quantiles.
Model interpretation

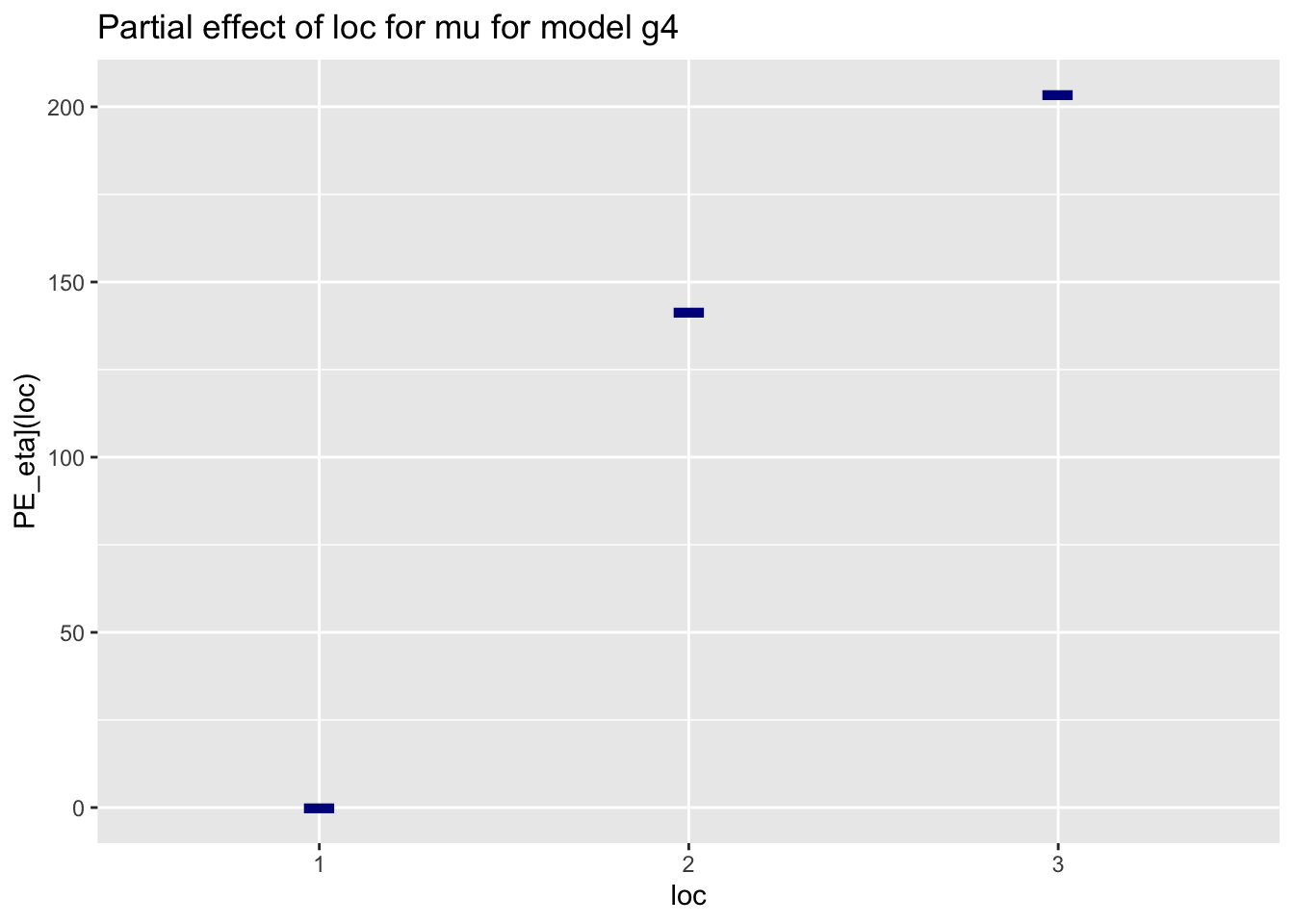

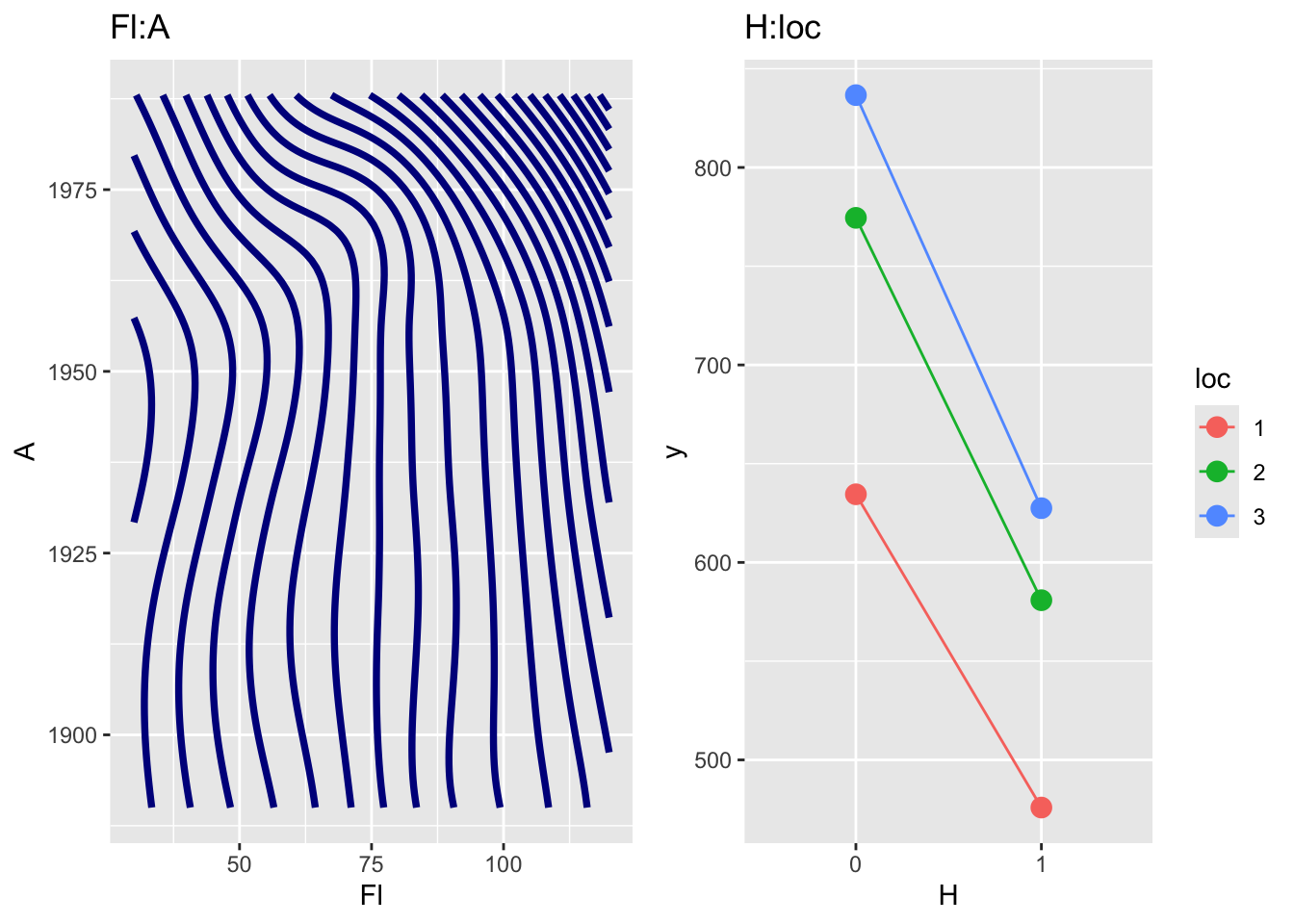

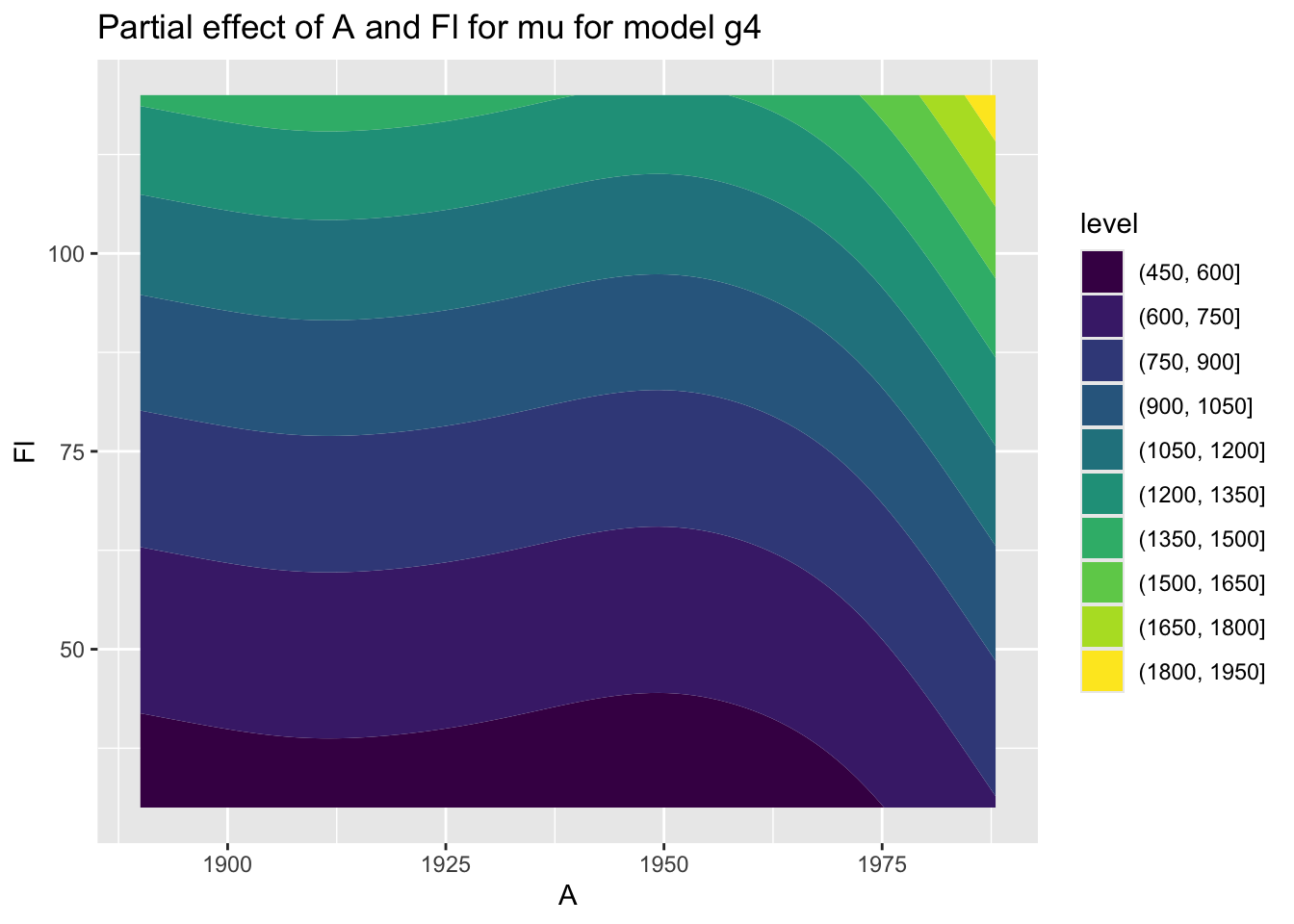

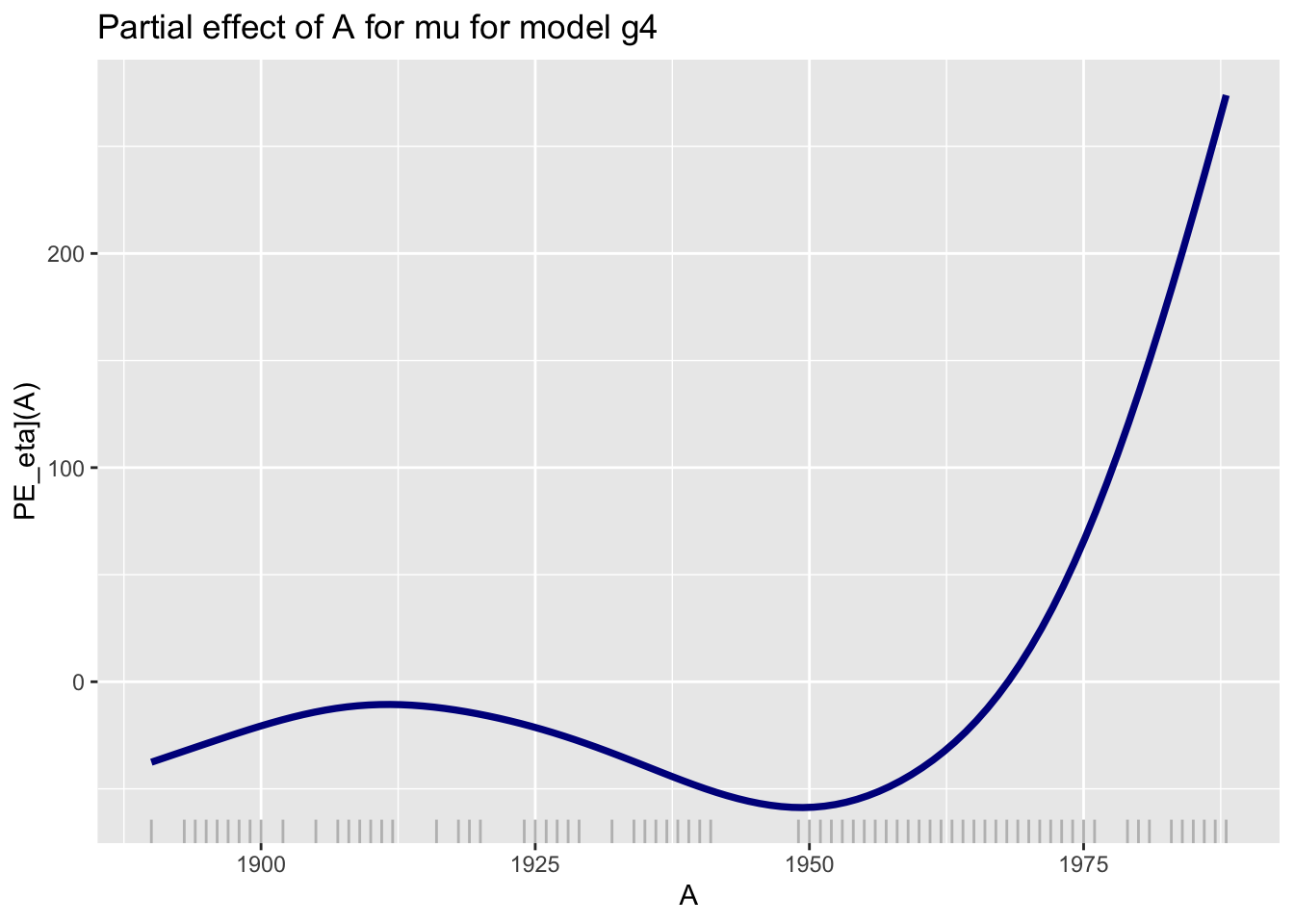

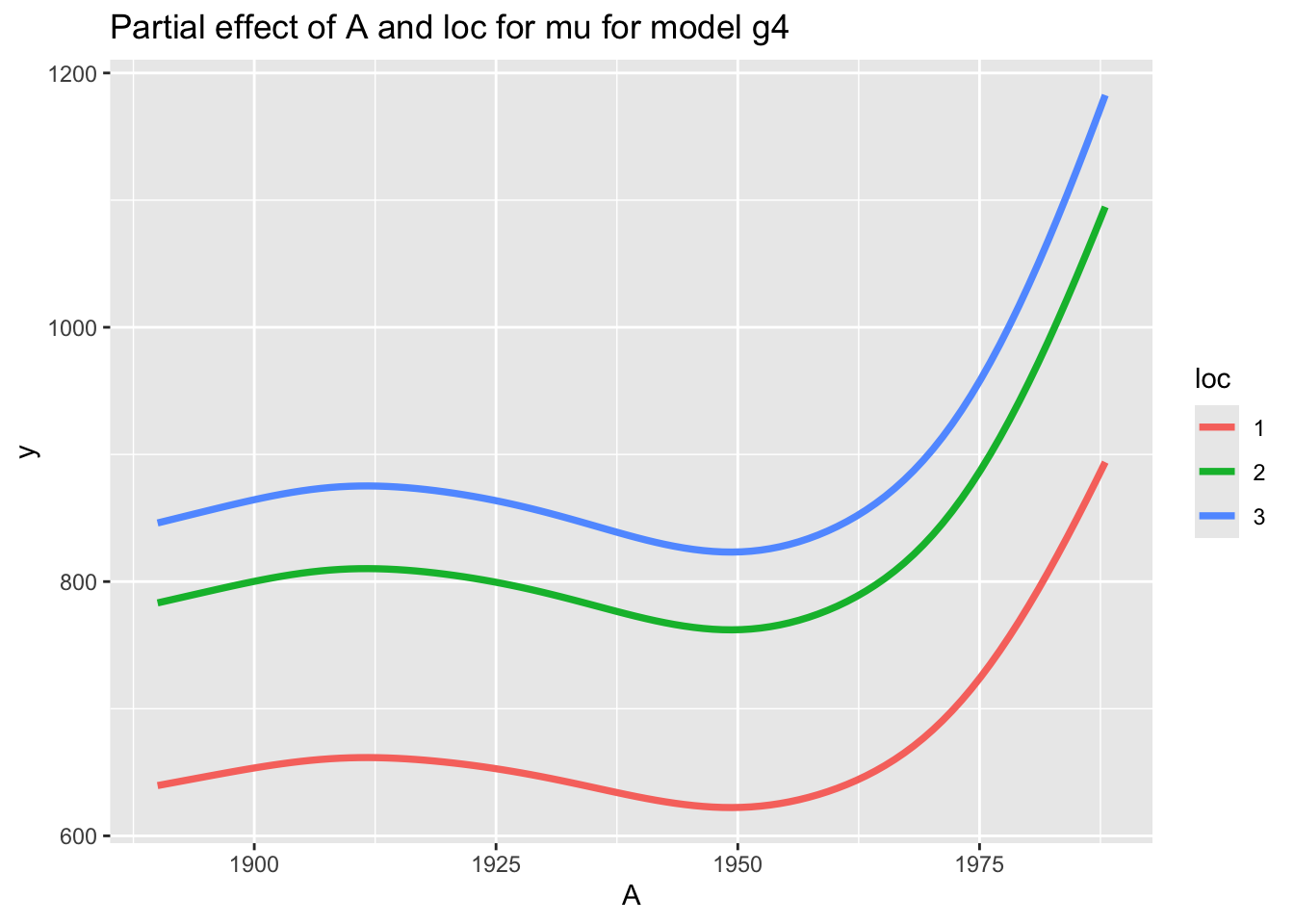

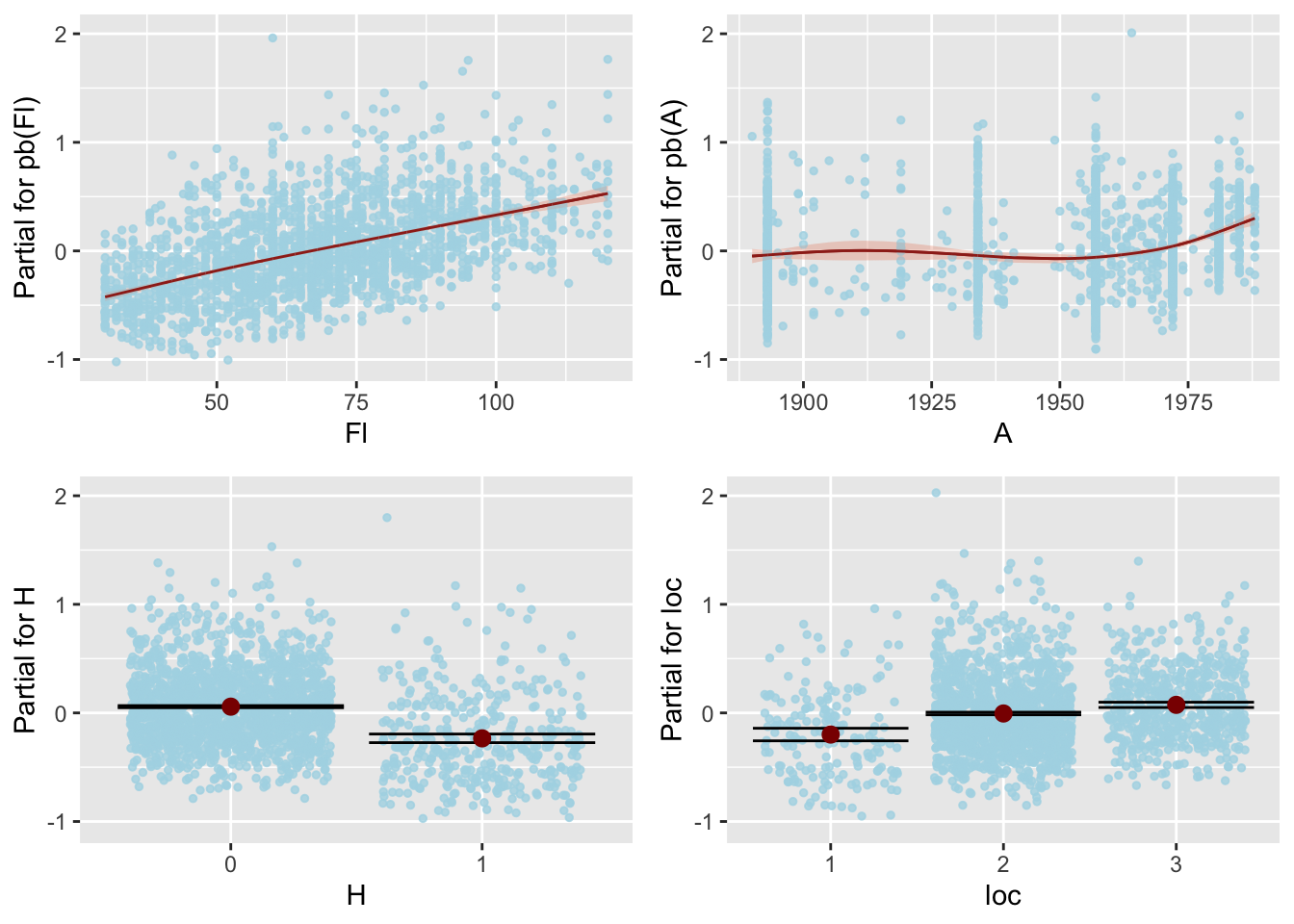

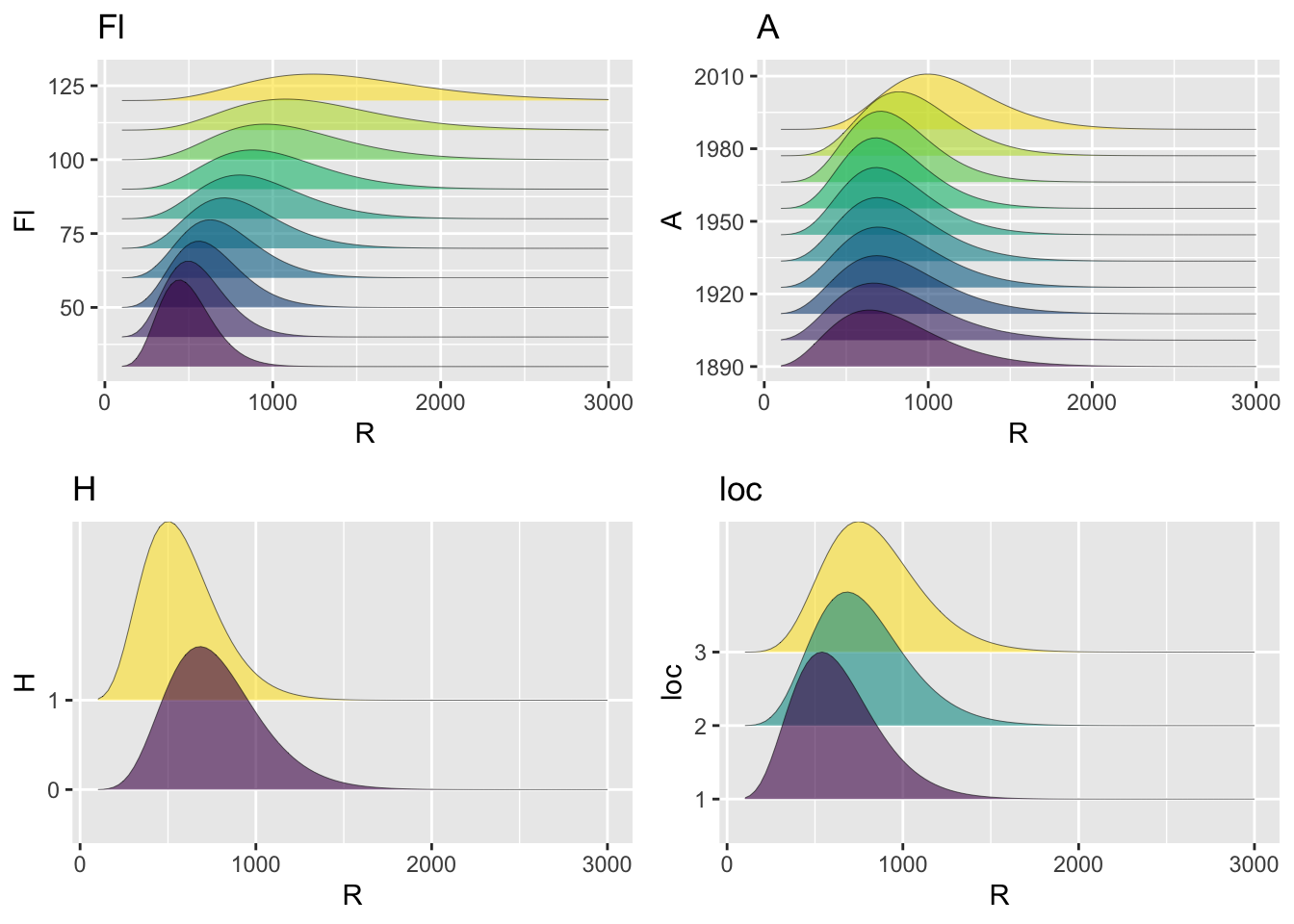

pe_NAME() – Plots partial effects to aid model interpretation.
influence_NAME() – Shows influence measures of model terms.
predict_NAME() – Provides predictions, often using a newdata argument.

Model comparison diagnostics

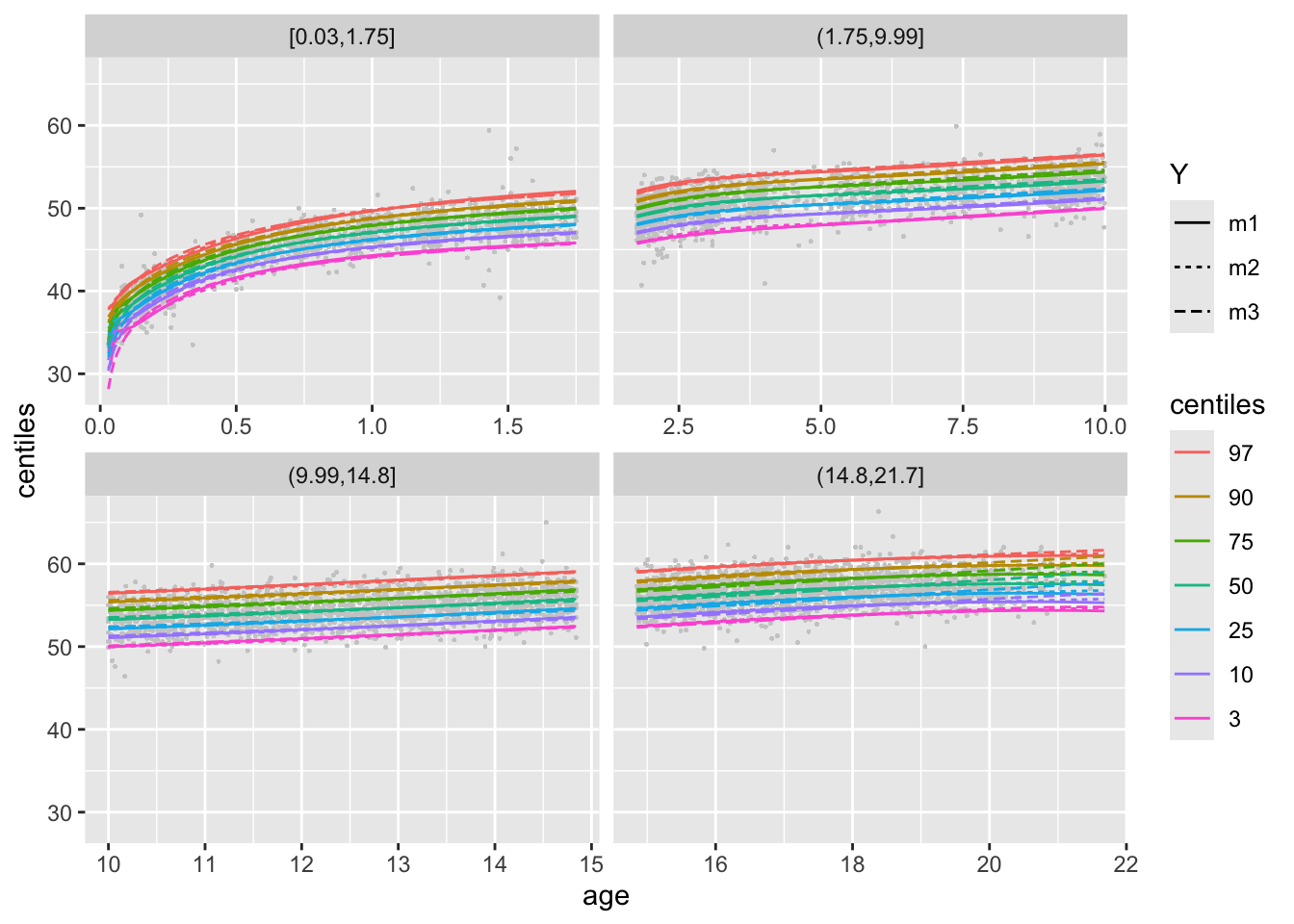

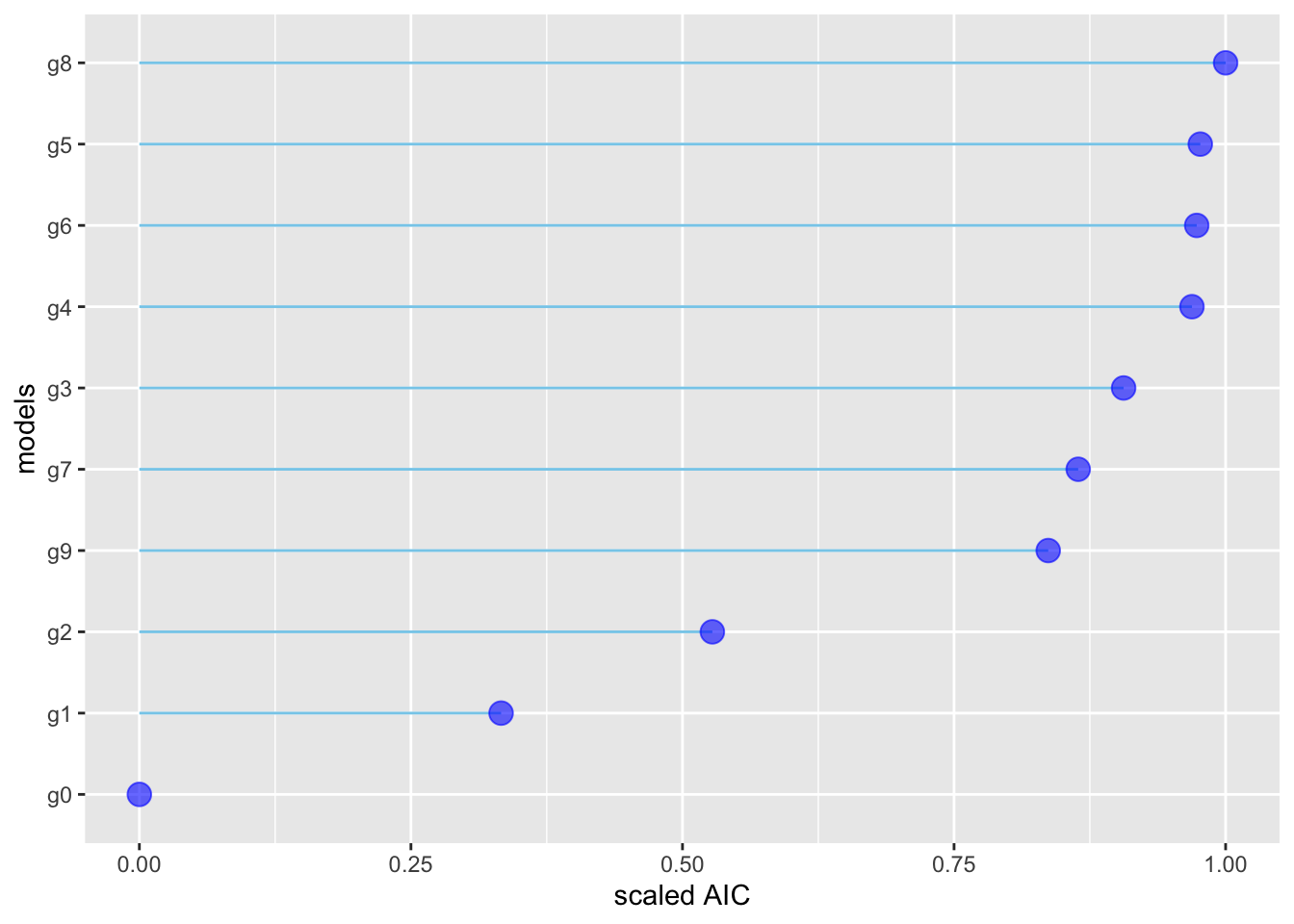

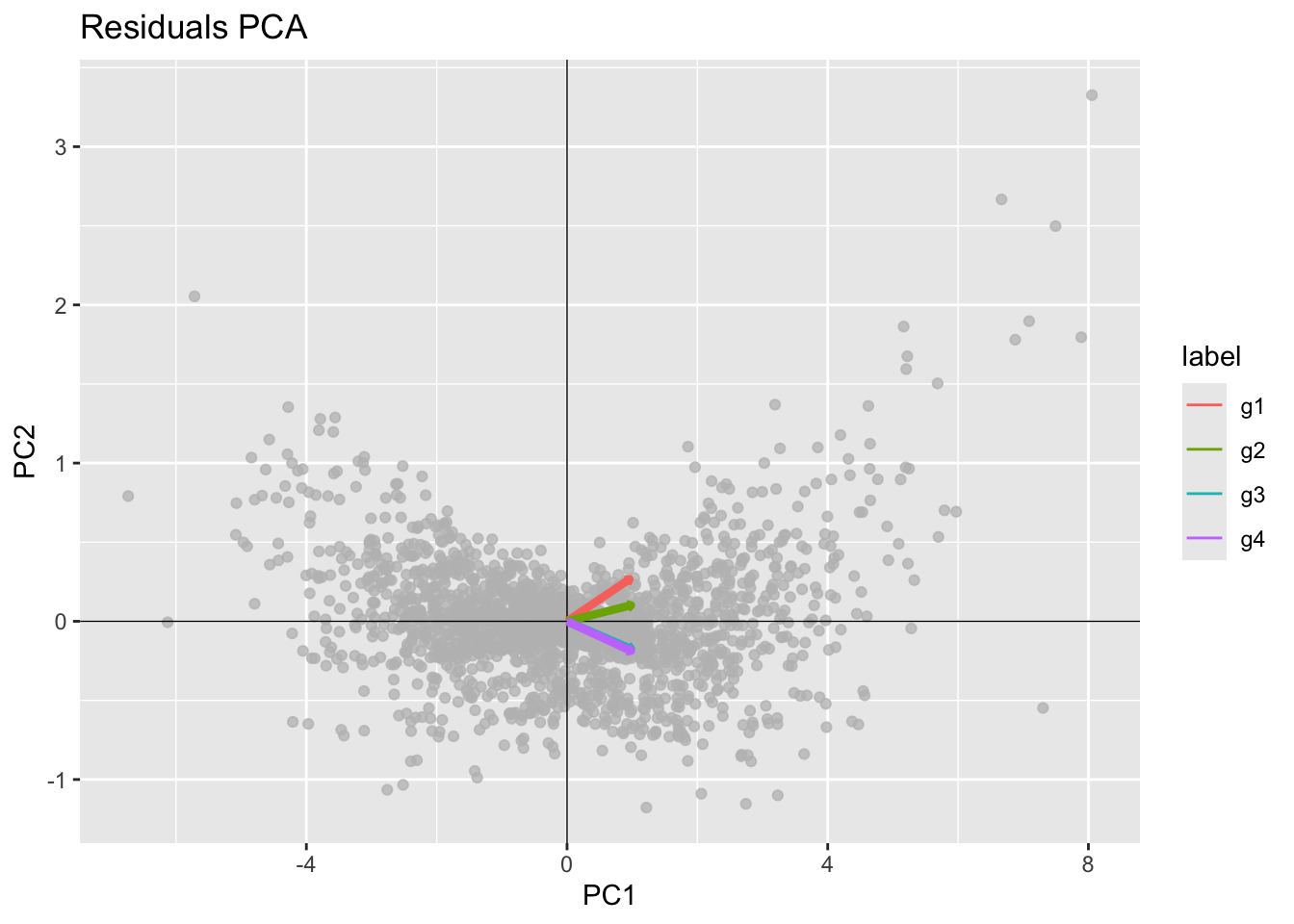

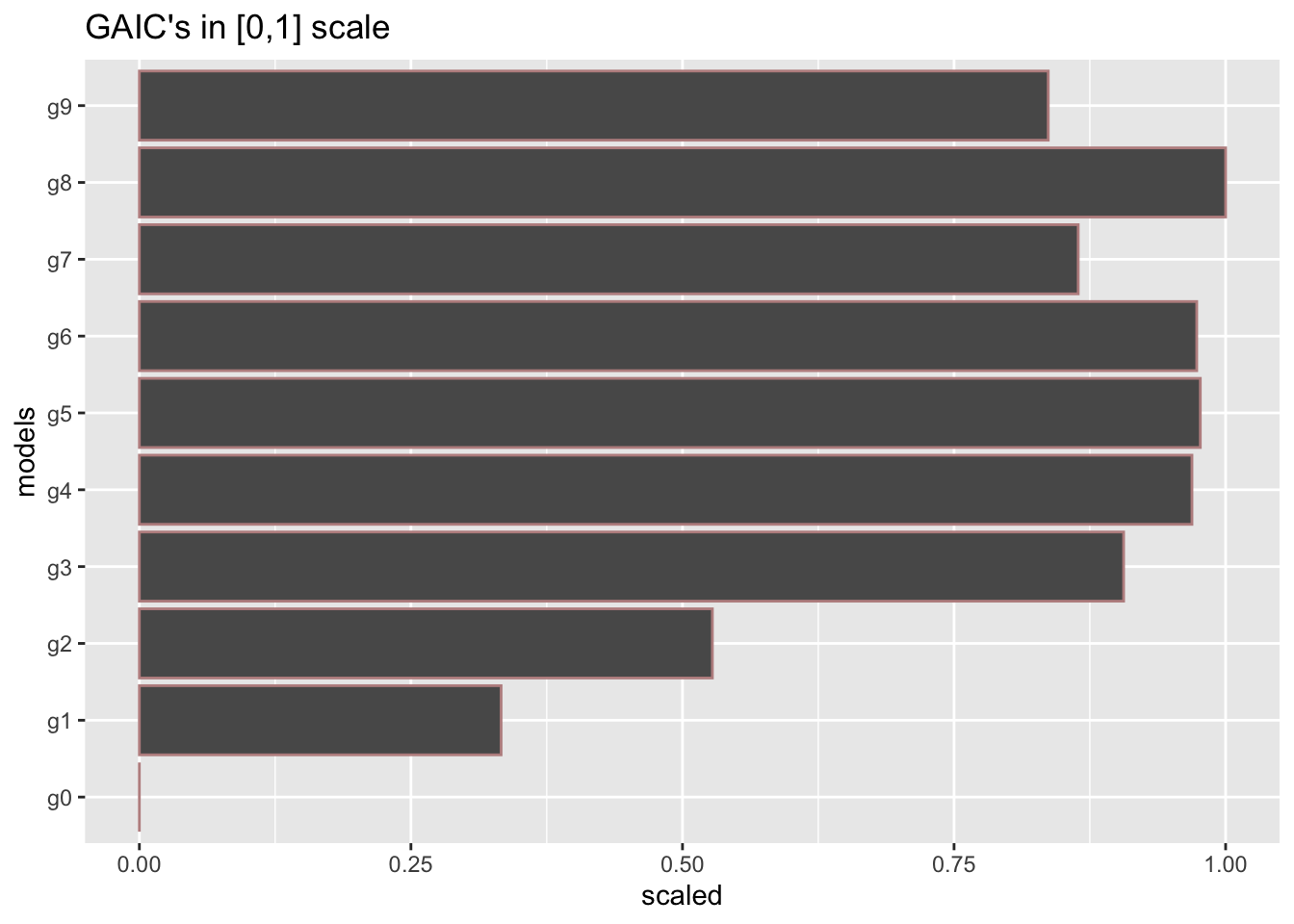

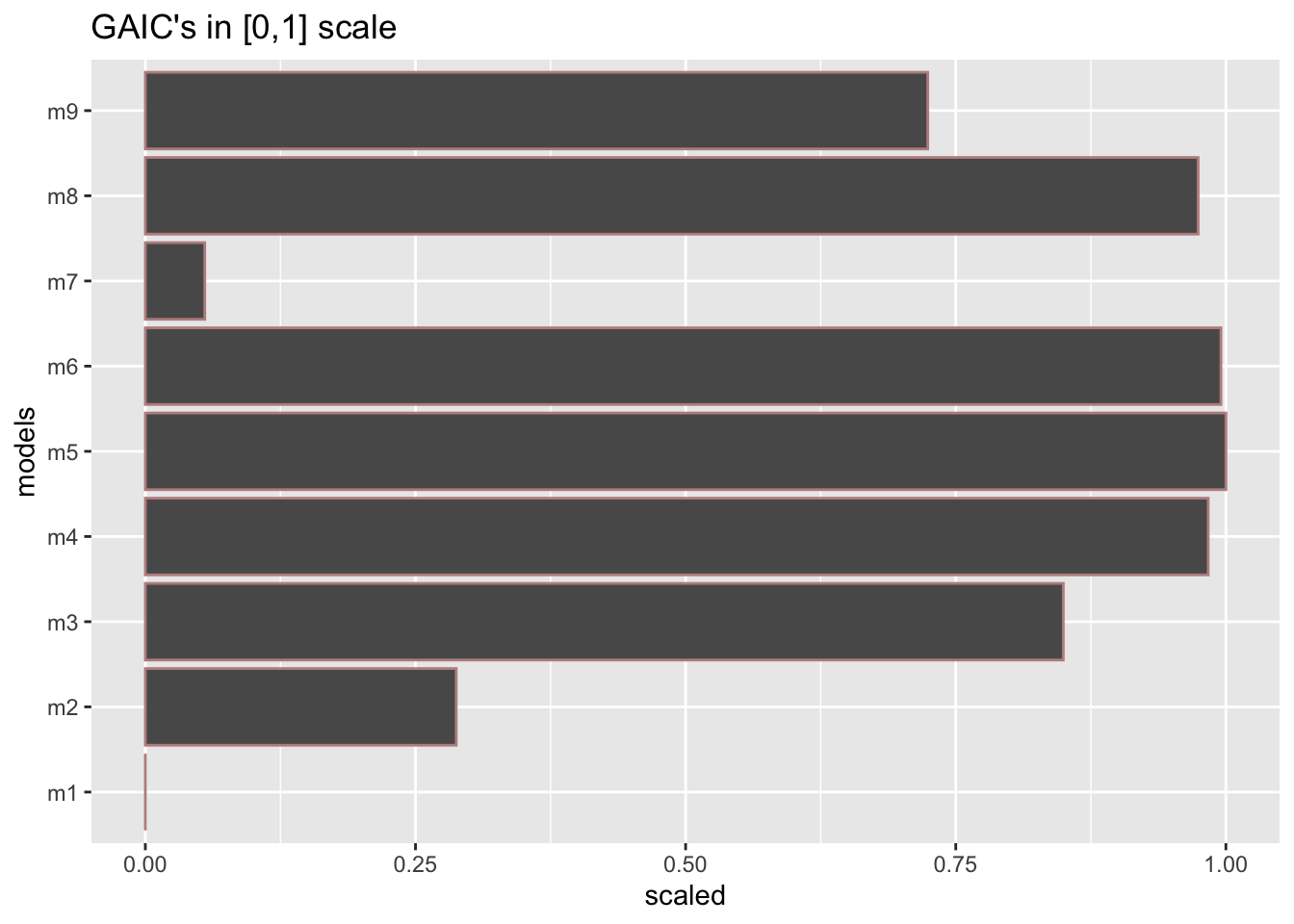

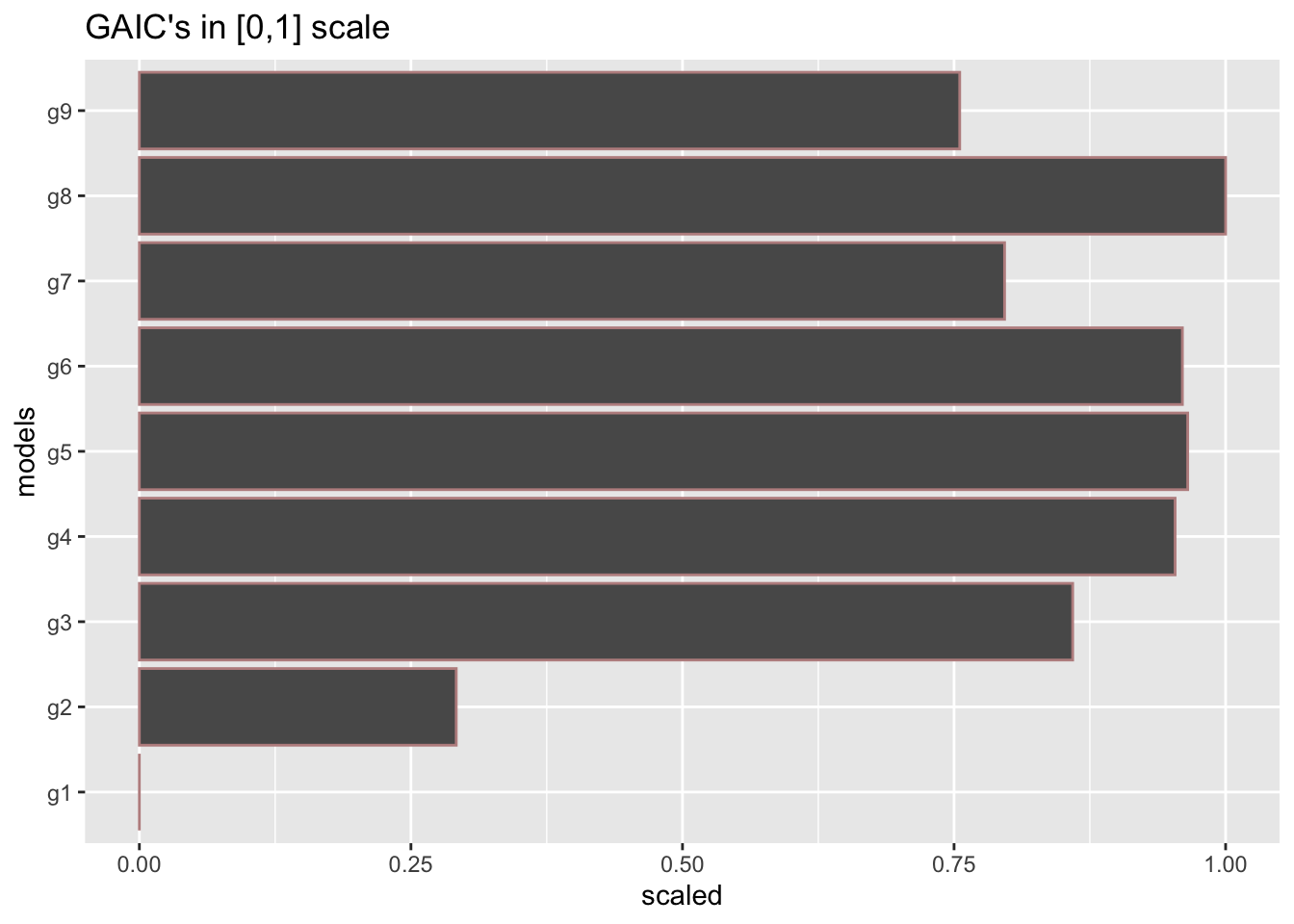

- model_NAME() – Functions for comparing multiple models, typically using diagnostic statistics or GAIC.

3. Utility functions

These functions serve as helpers for data exploration and bootstrap analyses.

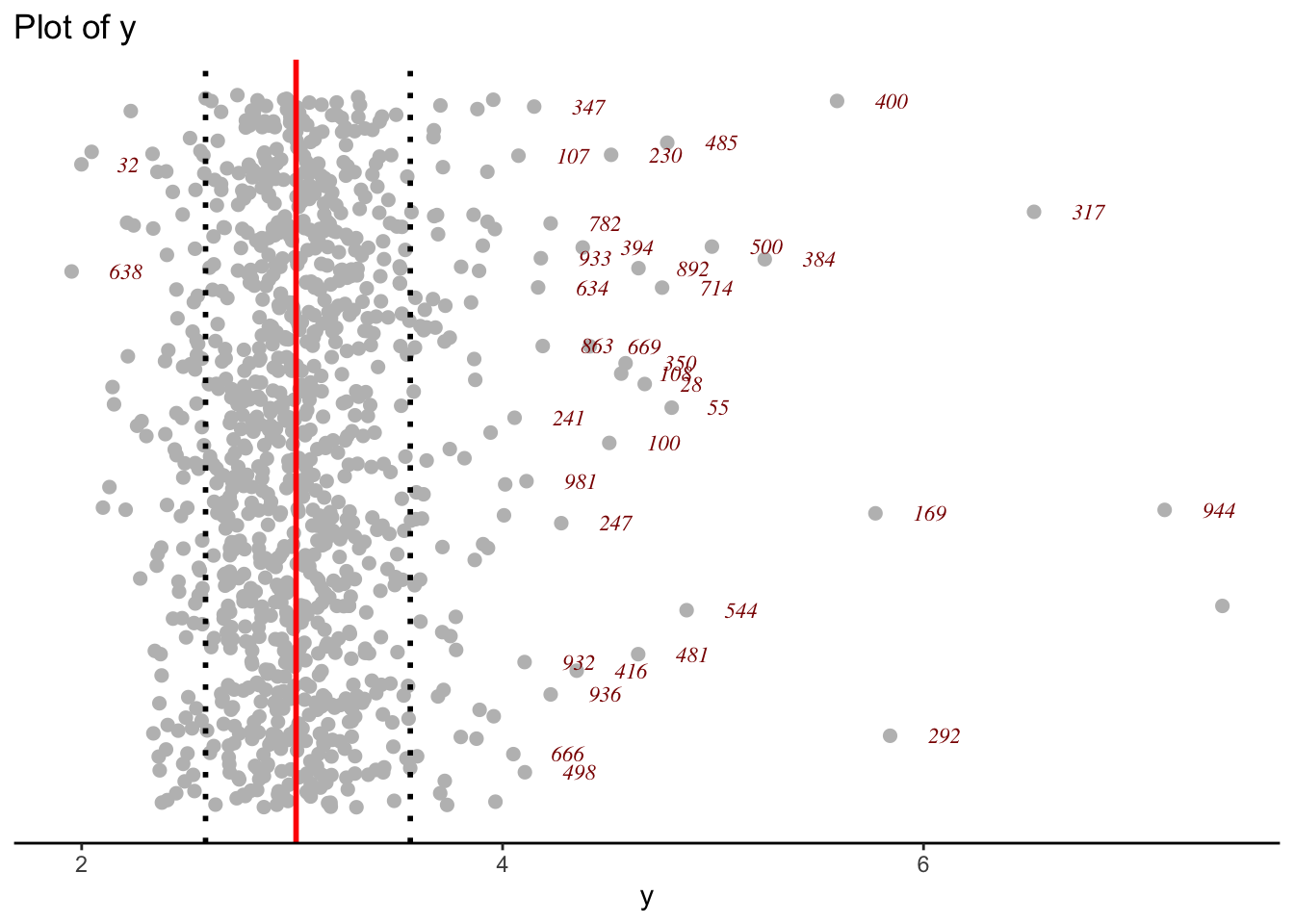

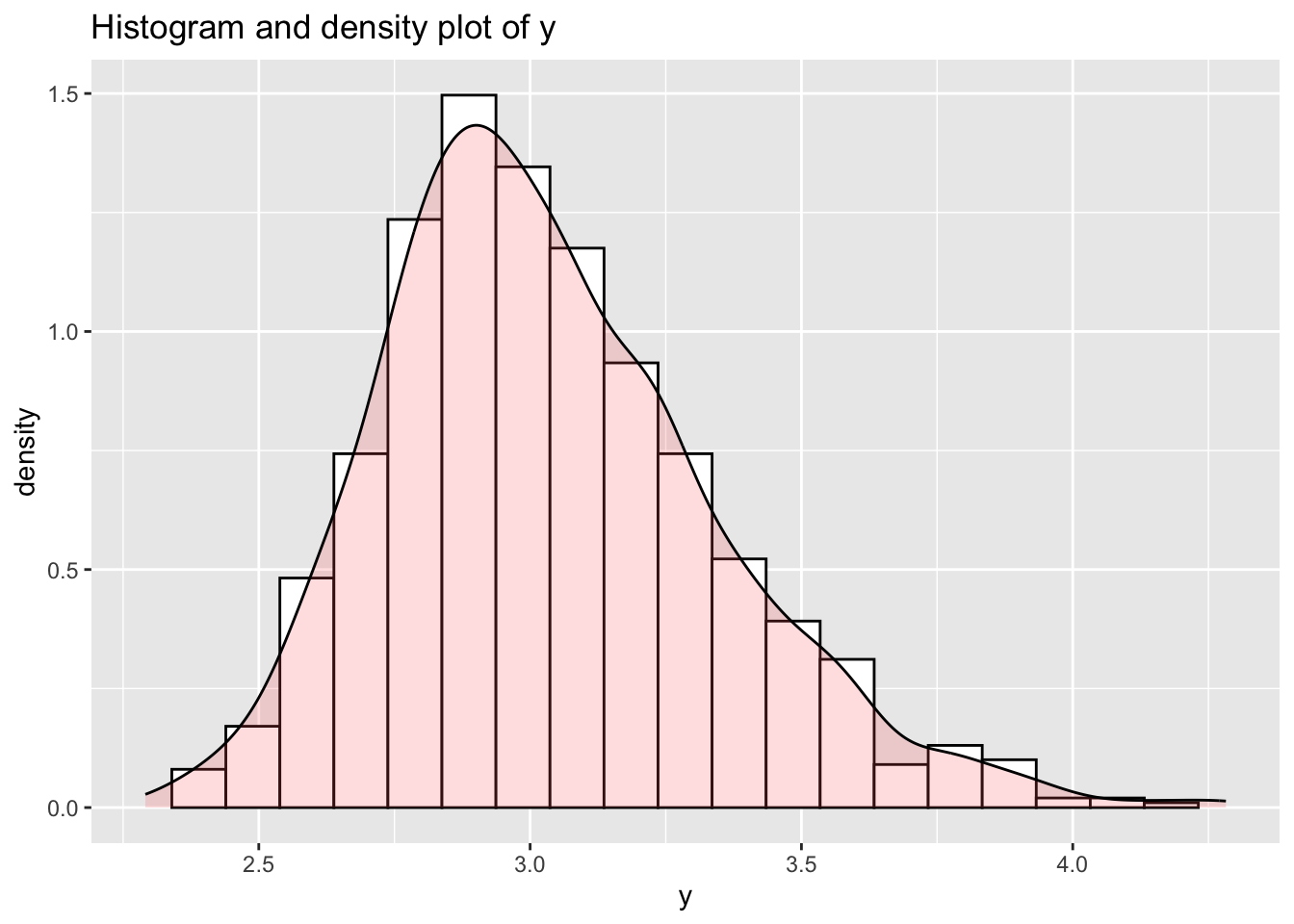

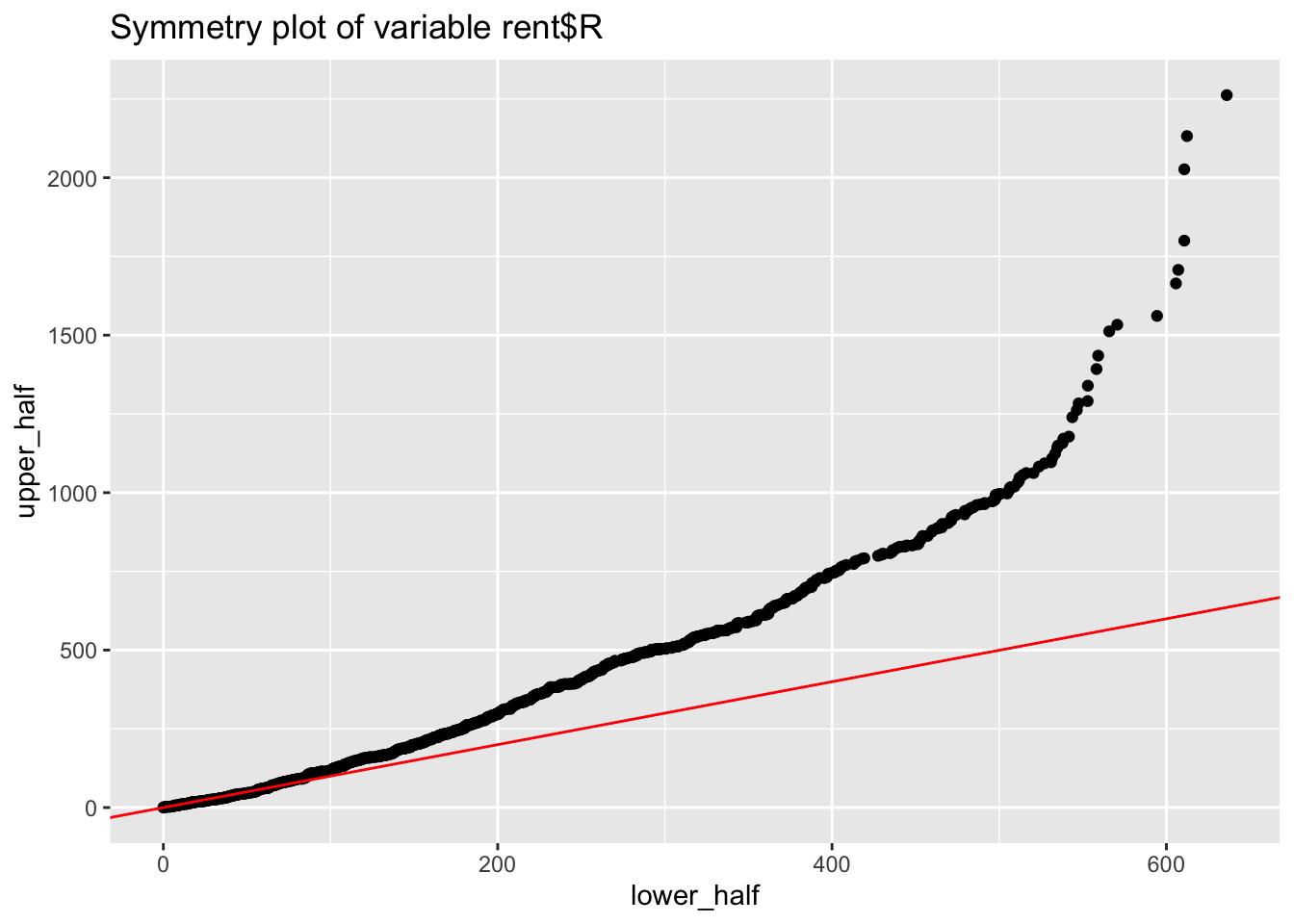

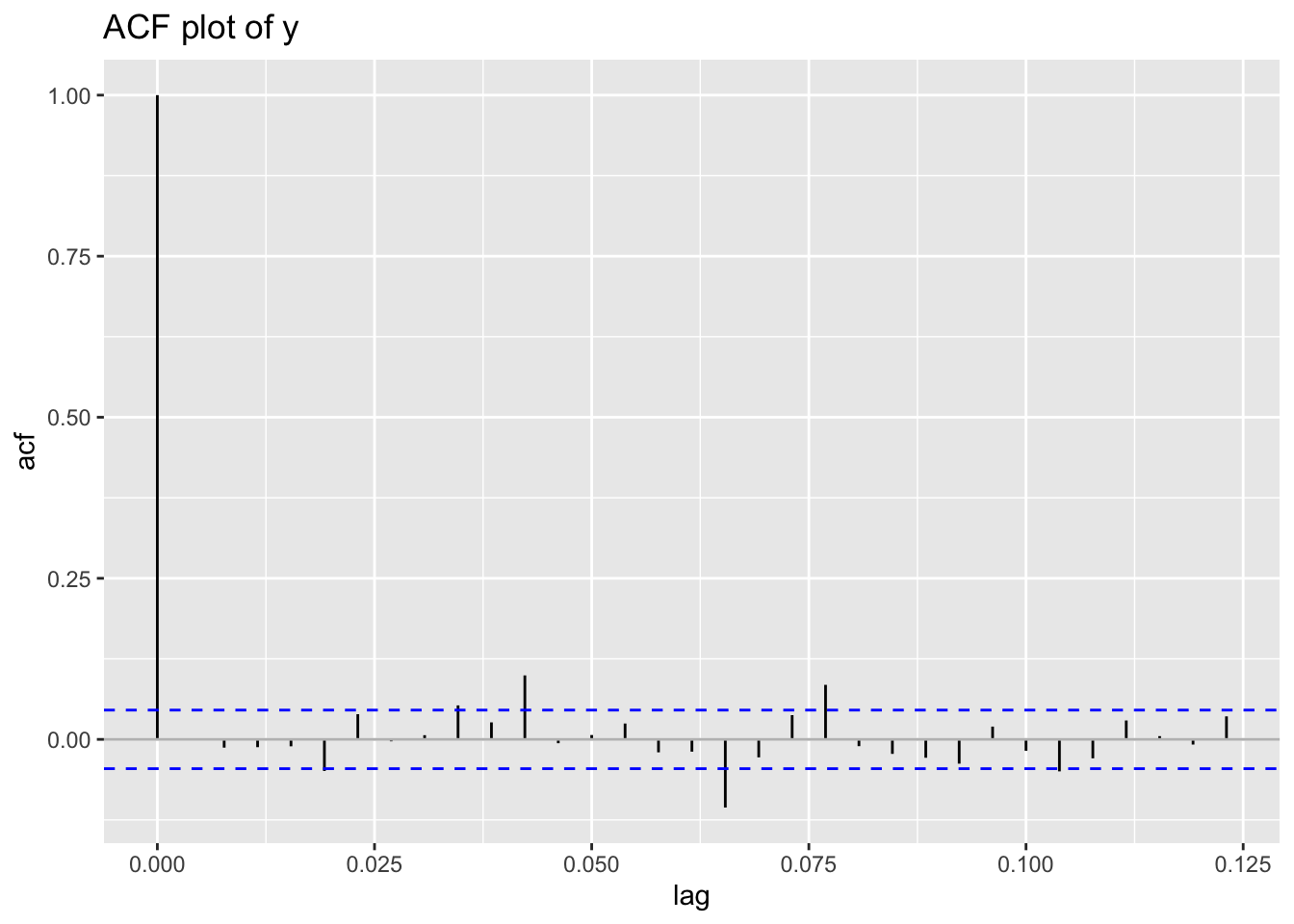

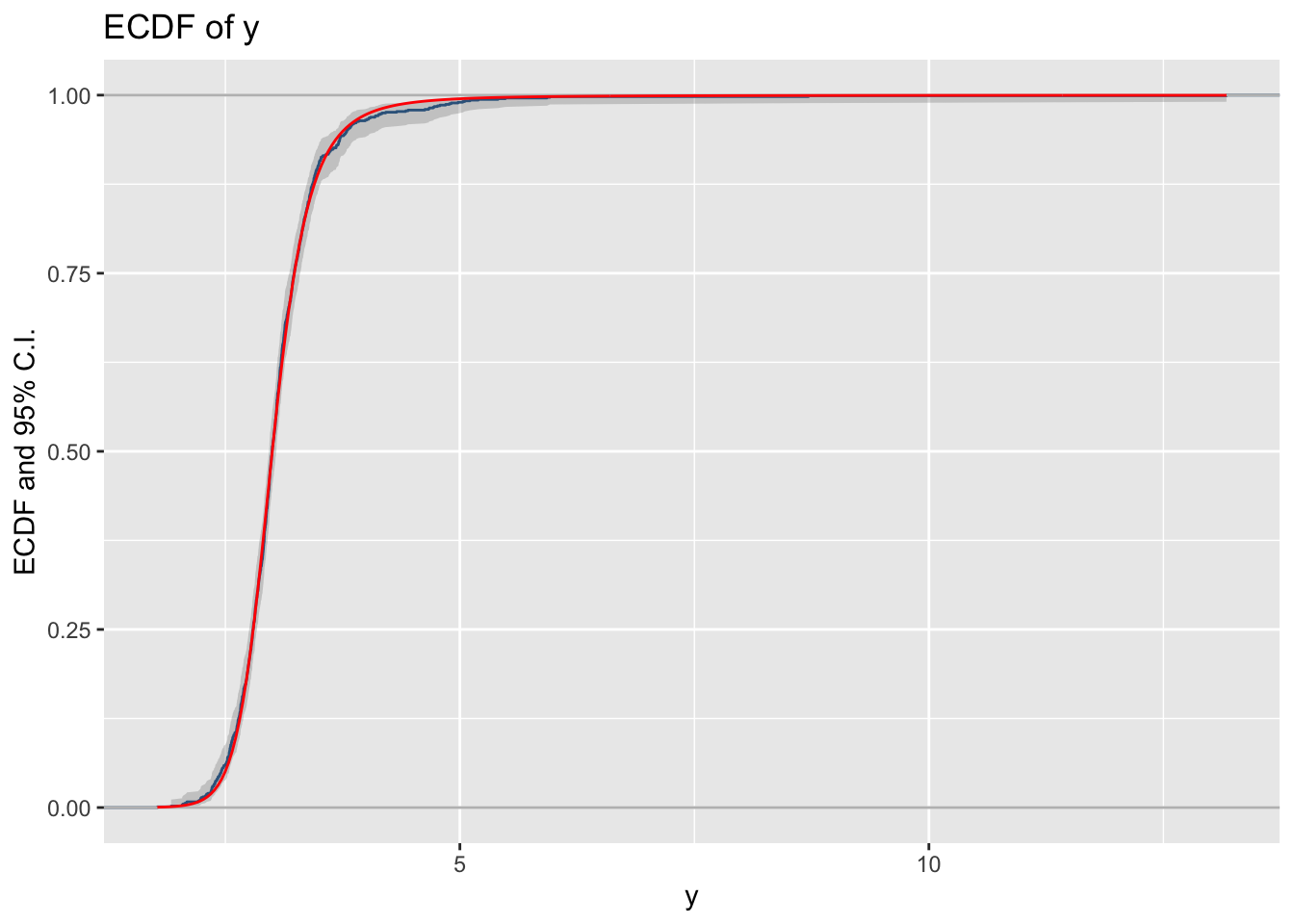

Single-vector visualizations • y_NAME() – For example, y_hist(y) plots a histogram, y_acf(y) plots the autocorrelation function.
Bootstrap summaries • boot_NAME() – Plots parameter estimates or fitted values across bootstrap samples.
Function imitations

Some utility functions imitate existing gamlss functions. E.g., histSmo_plot() mimics histSmo() but uses ggplot2.

Because the package is at an experimental stage, some of the functions are hidden to allowed time for checking. The hidden functions can be accessed using gamlss.ggplots:::functionname().

Note future functions that are not included in the package at the moment are:

ale_param() for accumulated local effects of a specific term on the parameter (Mikis)
pd_param() for partial dependants plots of a specific term on the parameter (Mikis)
pe_exceedance() (Julian)

GAMLSS

The general GAMLSS model can be written as \[ \begin{split} y_i & \stackrel{\small{ind}}{\sim } \mathcal{D}( \theta_1, \ldots, \theta_k) \nonumber \\ g(\theta_1) &= \mathcal{ML}_1(x_{1i},x_{2i}, \ldots, x_{pi}) \nonumber \\ \ldots &= \ldots \nonumber\\ g(\theta_k) &= \mathcal{ML}_k(x_{1i},x_{2i}, \ldots, x_{pi}). \end{split} \tag{1}\] When only additive smoothing terms are fitted the model can be written; \[\begin{split} y_i & \stackrel{\small{ind}}{\sim } \mathcal{D}( \theta_1, \ldots, \theta_k) \nonumber \\ g(\theta_1) &= b_0 + s_1(x_{1i}) + \cdots, +s_p(x_{pi}) \nonumber\\ \cdots &=& \cdots \nonumber\\ g(\theta_k) &= b_0 + s_1(x_{1i}) + \cdots, +s_p(x_{pi}). \end{split} \tag{2}\]

Distributions

Here there are no fitted models, and the only requirement are values for the parameters. Note that those function may at a later stage move to gamlss.prepdata.

`family_pdf()`

The function family_pdf() plots individual pdf’s from gamlss.family distribution. It needs the family argument.

Continuous

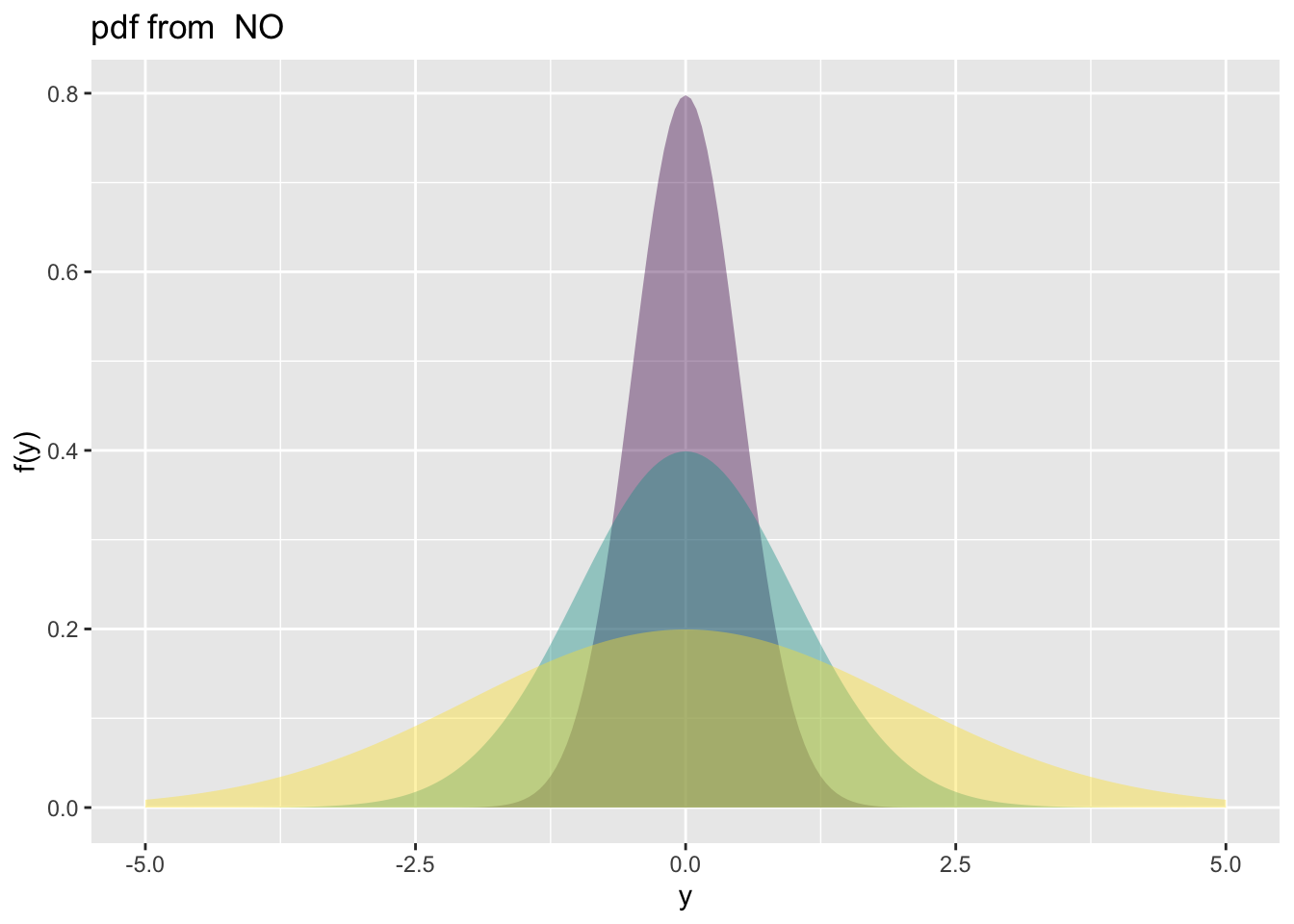

family_pdf(NO, from=-5,to=5, mu=0, sigma=c(.5,1,2))

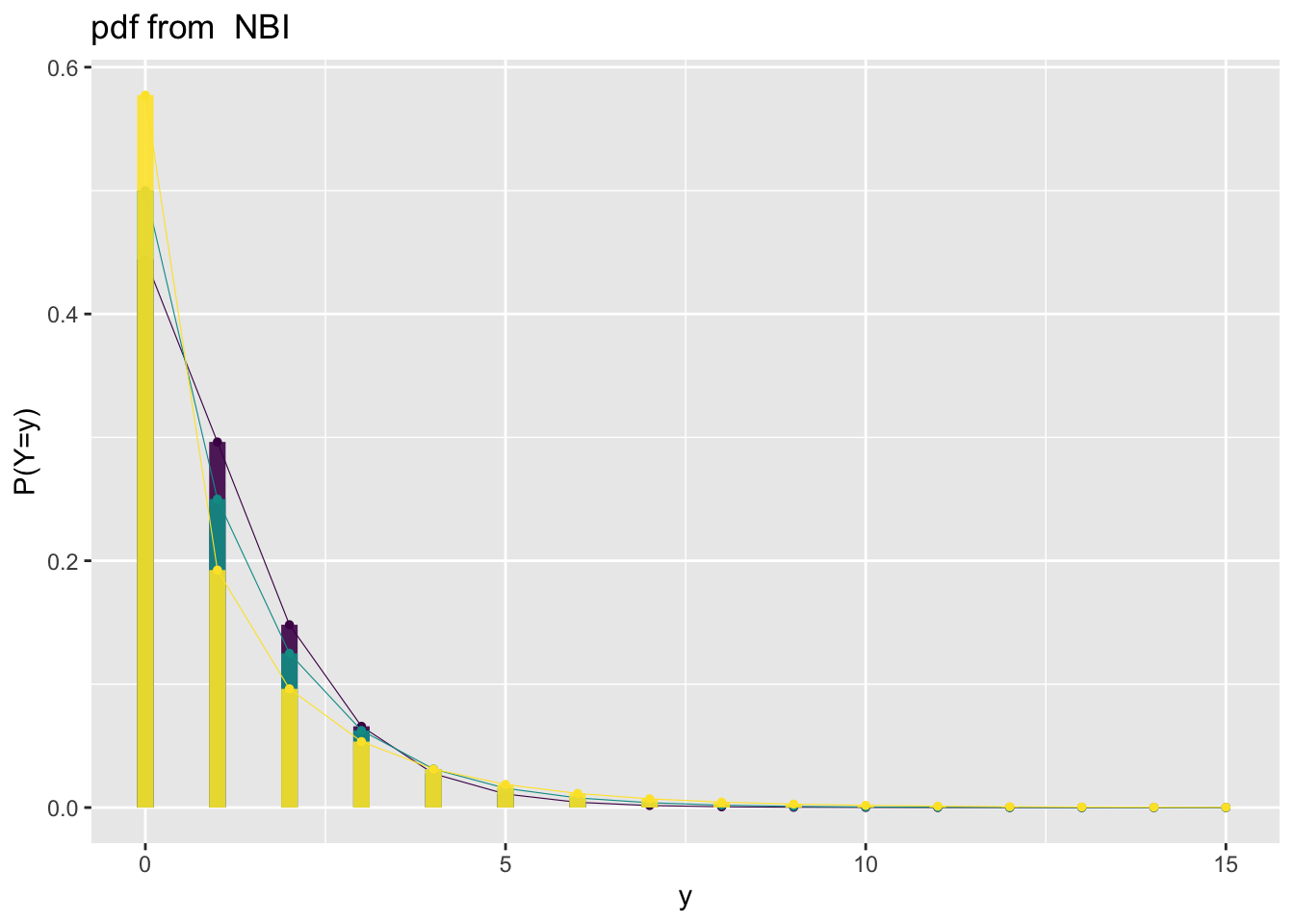

Discrere counts

family_pdf(NBI, to=15, mu=1, sigma=c(.5,1,2), alpha=.9, size.seqment = 3)

Figure 2: Count response example: plotting the pdf of a beta binomial.

Discrere binomial type

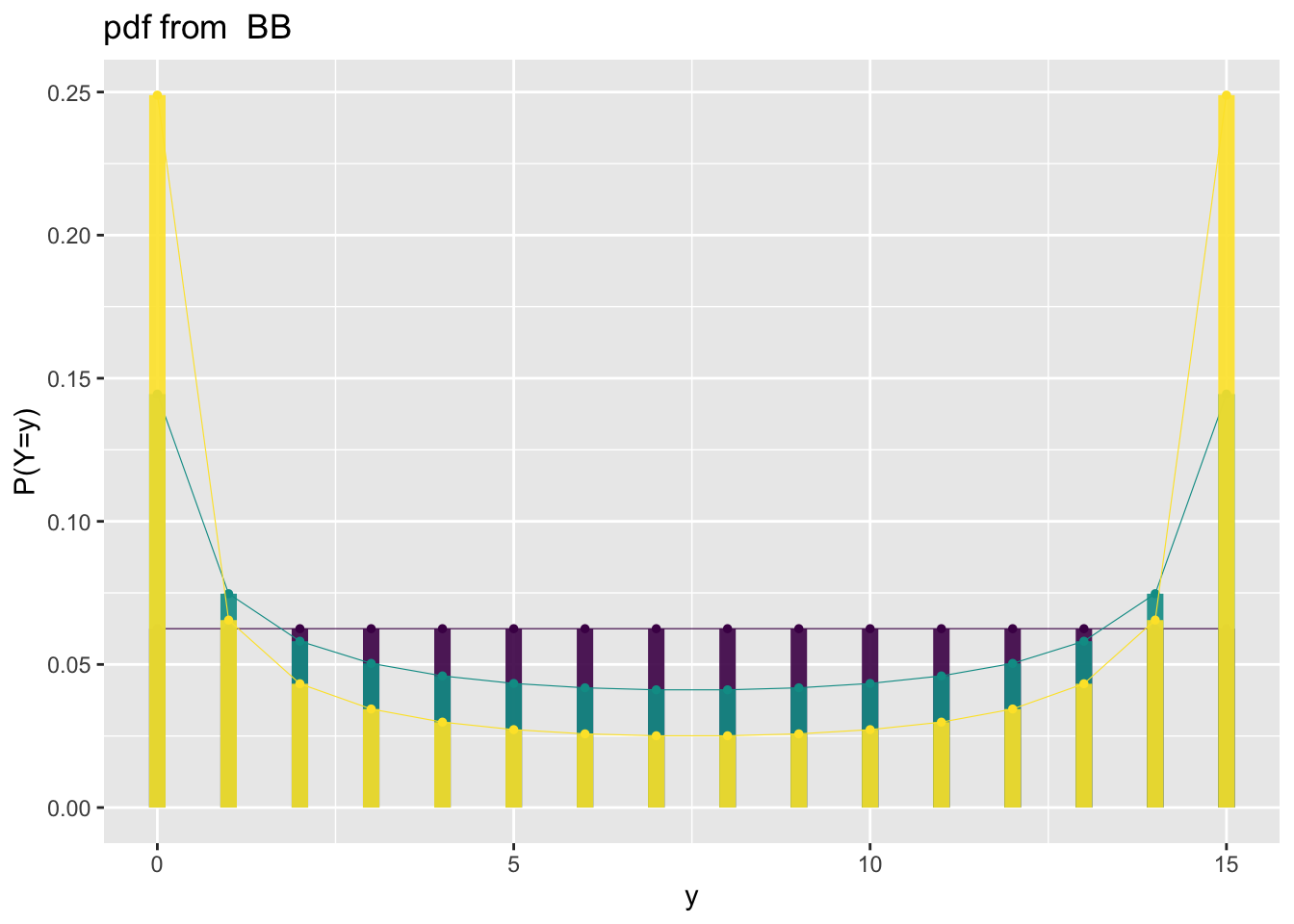

family_pdf(BB, to=15, mu=.5, sigma=c(.5,1,2),  alpha=.9, , size.seqment = 3)

Figure 3: Beta binomial response example: plotting the pdf of a beta binomial.

`family_cdf`

The function plots individual cdf’s from gamlss.family distribution. It needs the family argument.

Continuous

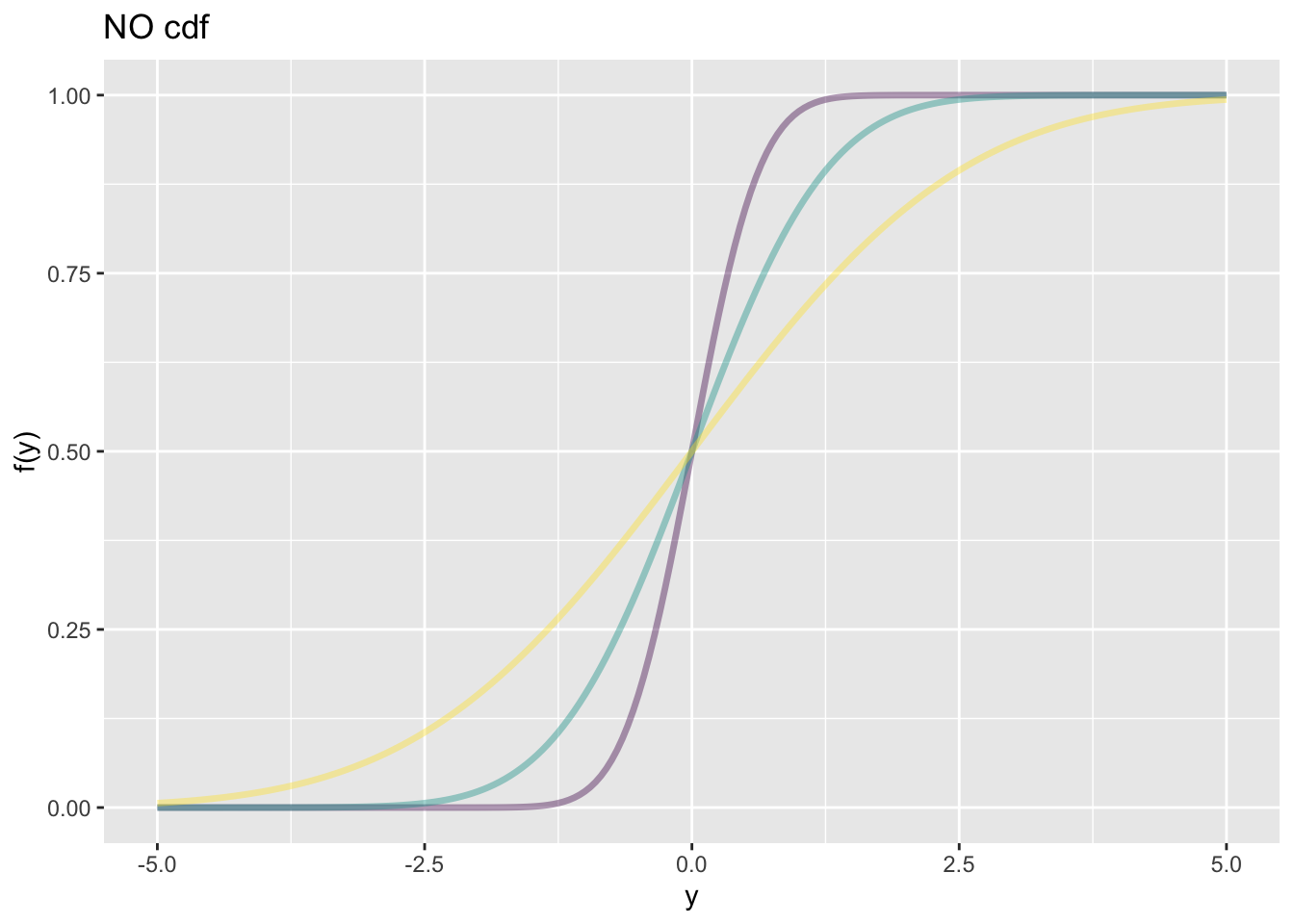

family_cdf(NO, from=-5,to=5, mu=0, sigma=c(.5,1,2))

Discrere counts

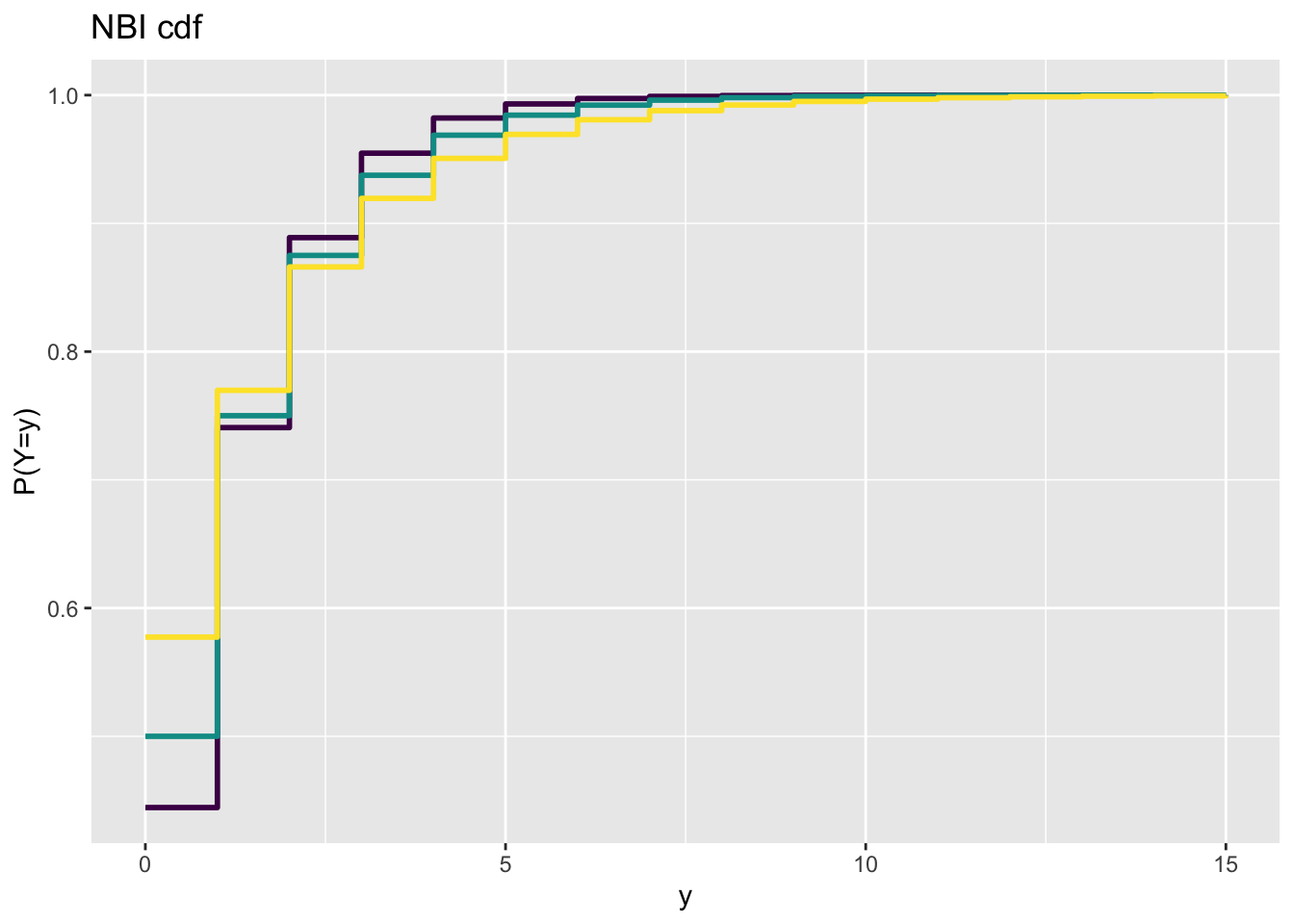

family_cdf(NBI, to=15, mu=1, sigma=c(.5,1,2), alpha=.9, size.seqment = 3)

Figure 5: Count response example: plotting the cdf of a negative binomial.

Discrere binomial type

family_cdf(BB, to=15, mu=.5, sigma=c(.5,1,2),  alpha=.9, , size.seqment = 3)

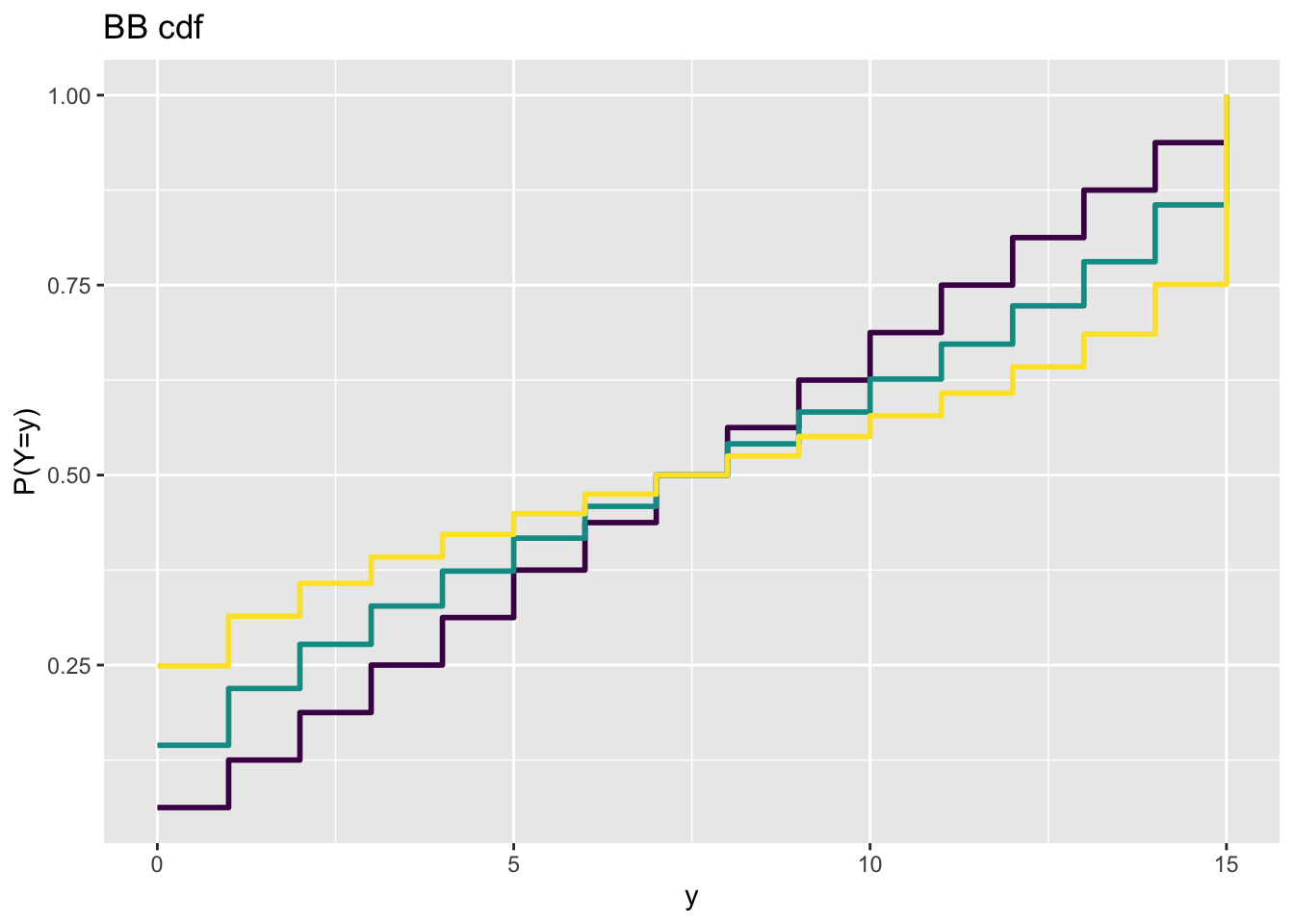

Figure 6: Count response example: plotting the cdf of a beta binomial.

`family_cor()`

The function family_cor() provides a crude way of checking the inter correlation of parameters within any gamlss.family distribution. It

generates 10000 values from the specified distribution,
fits the distribution to the generared data and
plots the correlation coefficients of the parameters.

Those correlation coefficients are taken from the fitted variance covariance matrix.

Warning

The method only provides an idea of how the correlations between parameters are at specified points of the distribution parameters. At different parameter points the distribution could behave completely different.

#source("~/Dropbox/github/gamlss-ggplots/R/family_cor.R")
gamlss.ggplots:::family_cor("BCTo", mu=1, sigma=0.11, nu=1, tau=5, no.sim=10000)

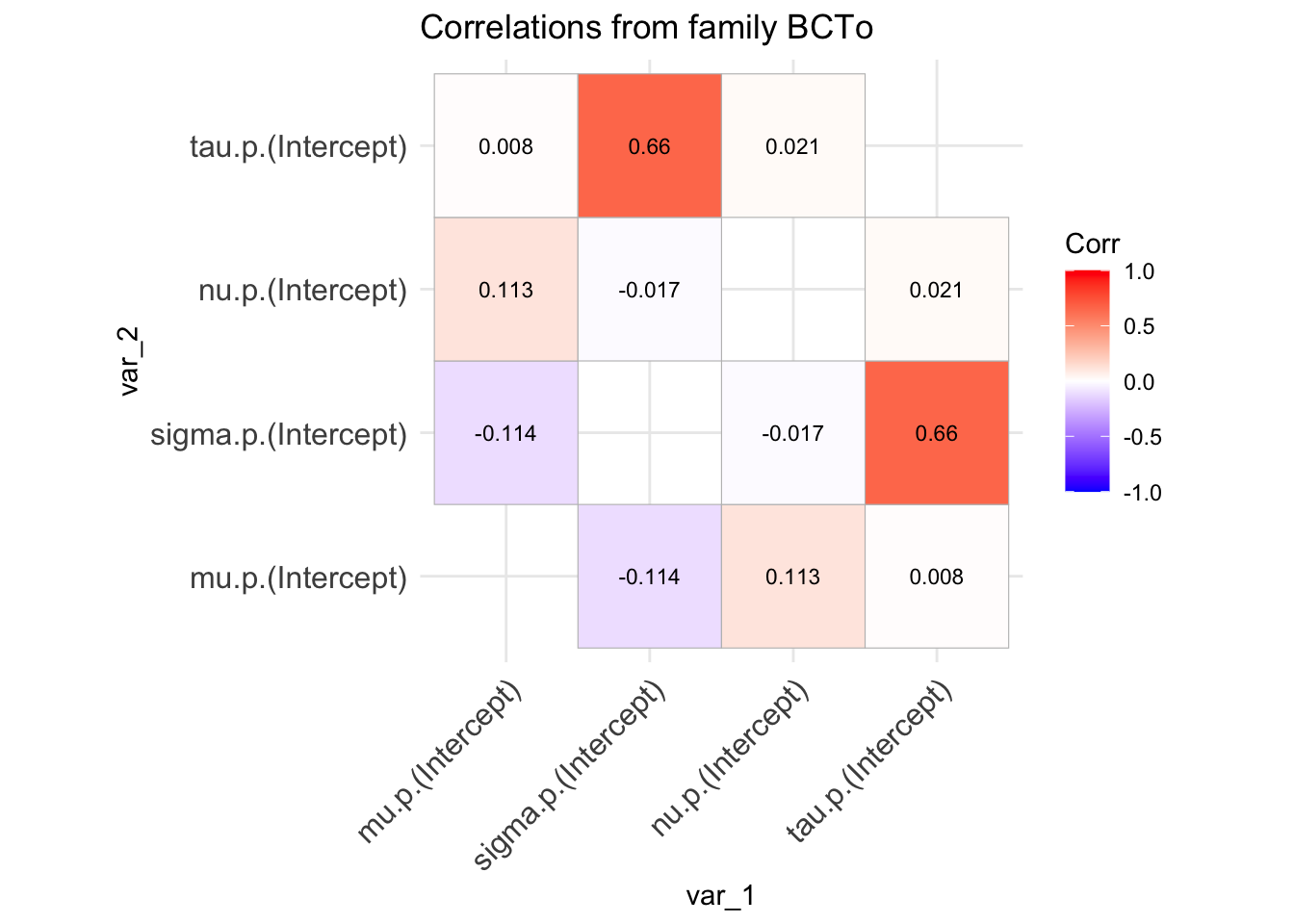

Figure 7: Family correlation of a BCTo distribution at specified values of the parameters.

Fits

First we fit different GAMLSS models. The models will to be used for demonstration later.

The `null` model using Normal distribution.

data(rent)
# Null model
m0<-gamlss(R~1,family=GA,data=rent)

GAMLSS-RS iteration 1: Global Deviance = 28611.58
GAMLSS-RS iteration 2: Global Deviance = 28611.58

g0<-gamlss2(R~1,family=GA,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 28617.553 eps = 0.056190
GAMLSS-RS iteration  2: Global Deviance = 28611.5819 eps = 0.000208
GAMLSS-RS iteration  3: Global Deviance = 28611.5819 eps = 0.000000

Additive smooth model using Normal distribution.

Fit additive smooth terms for Fl and A in the $\mu$ using the Normal distribution.

# Smooth terms for Fl  and A  in mu, normal
m1<-gamlss(R~pb(Fl)+pb(A),family=NO,data=rent)

GAMLSS-RS iteration 1: Global Deviance = 28264.19
GAMLSS-RS iteration 2: Global Deviance = 28264.19

g1<-gamlss2(R~s(Fl)+s(A),family=NO,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 28267.0113 eps = 0.024226
GAMLSS-RS iteration  2: Global Deviance = 28265.9576 eps = 0.000037
GAMLSS-RS iteration  3: Global Deviance = 28265.828 eps = 0.000004

Fit additive smooth terms for Fl and A and main effects for H and loc in the $\mu$ using the Normal distribution.

m2<-gamlss(R~pb(Fl)+pb(A)+H+loc, family=NO, data=rent)

GAMLSS-RS iteration 1: Global Deviance = 28062.62
GAMLSS-RS iteration 2: Global Deviance = 28062.62

g2<-gamlss2(R~s(Fl)+s(A)+H+loc, family=NO, data=rent)

GAMLSS-RS iteration  1: Global Deviance = 28067.7199 eps = 0.031106
GAMLSS-RS iteration  2: Global Deviance = 28066.8274 eps = 0.000031
GAMLSS-RS iteration  3: Global Deviance = 28063.6394 eps = 0.000113
GAMLSS-RS iteration  4: Global Deviance = 28063.5991 eps = 0.000001

Additive smooth model using gamma distribution.

Fit additive smooth terms for Fl and A and main effects for H and loc in the $\mu$ using Gamma distribution.

# Smooth terms for Fl  and A main effects for H and loc in mu, gamma
m3<-gamlss(R~pb(Fl)+pb(A)+H+loc,family=GA,data=rent)

GAMLSS-RS iteration 1: Global Deviance = 27683.22
GAMLSS-RS iteration 2: Global Deviance = 27683.22
GAMLSS-RS iteration 3: Global Deviance = 27683.22

g3<-gamlss2(R~s(Fl)+s(A)+H+loc,family=GA,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 27693.1246 eps = 0.086677
GAMLSS-RS iteration  2: Global Deviance = 27687.0432 eps = 0.000219
GAMLSS-RS iteration  3: Global Deviance = 27686.8566 eps = 0.000006

Fit additive smooth terms for Fl and A and main effects for H and loc in both $\mu$ and $\sigma$ parameters using Gamma distribution.

m4<-gamlss(R~pb(Fl)+pb(A)+H+loc, sigma.fo=~pb(Fl)+pb(A)+H+loc,
           family=GA,data=rent)

GAMLSS-RS iteration 1: Global Deviance = 27572.14
GAMLSS-RS iteration 2: Global Deviance = 27570.29
GAMLSS-RS iteration 3: Global Deviance = 27570.28
GAMLSS-RS iteration 4: Global Deviance = 27570.28

g4<-gamlss2(R~s(Fl)+s(A)+H+loc, sigma.fo=~s(Fl)+s(A)+H+loc,
           family=GA,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 27621.8516 eps = 0.089028
GAMLSS-RS iteration  2: Global Deviance = 27613.9595 eps = 0.000285
GAMLSS-RS iteration  3: Global Deviance = 27613.8173 eps = 0.000005

Additive smooth model using `s()` and the gamma distribution.

We bring the package gamlss.add for extra smoothers

library(gamlss.add)

Fit interaction smooth terms for Fl and A in $\mu$, additive main smooth effect for for Fl and A in $\sigma$ and main effects for H and loc in both $\mu$ and $\sigma$ using a gamma family.

m5<-gamlss(R~ga(~s(Fl, A))+H+loc, sigma.fo=~pb(Fl)+pb(A)+H+loc,
           family=GA,data=rent)

GAMLSS-RS iteration 1: Global Deviance = 27542.45
GAMLSS-RS iteration 2: Global Deviance = 27537.5
GAMLSS-RS iteration 3: Global Deviance = 27537.41
GAMLSS-RS iteration 4: Global Deviance = 27537.41

g5<-gamlss2(R~s(Fl, A)+H+loc, sigma.fo=~s(Fl)+s(A)+H+loc,
           family=GA,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 27654.5419 eps = 0.087950
GAMLSS-RS iteration  2: Global Deviance = 27585.8715 eps = 0.002483
GAMLSS-RS iteration  3: Global Deviance = 27585.1686 eps = 0.000025
GAMLSS-RS iteration  4: Global Deviance = 27585.0432 eps = 0.000004

Fit interaction smooth terms for Fl and A, interaction for H and loc in $\mu$ and and main effects only in $\sigma$ using a gamma family.

m6<-gamlss(R~ga(~s(Fl, A))+H*loc, sigma.fo=~pb(Fl)+pb(A)+H+loc,
           family=GA,data=rent)

GAMLSS-RS iteration 1: Global Deviance = 27541.97
GAMLSS-RS iteration 2: Global Deviance = 27536.41
GAMLSS-RS iteration 3: Global Deviance = 27536.29
GAMLSS-RS iteration 4: Global Deviance = 27536.29
GAMLSS-RS iteration 5: Global Deviance = 27536.29

g6<-gamlss2(R~s(Fl, A)+H*loc, sigma.fo=~s(Fl)+s(A)+H+loc,
           family=GA,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 27654.5301 eps = 0.087950
GAMLSS-RS iteration  2: Global Deviance = 27585.0974 eps = 0.002510
GAMLSS-RS iteration  3: Global Deviance = 27584.3729 eps = 0.000026
GAMLSS-RS iteration  4: Global Deviance = 27584.2431 eps = 0.000004

Fit a penalised varying coefficient model (a simpler form of smoothing in two dimensions that s(Fl, A)) in $\mu$. Additive main smooth effect for for Fl and A in $\sigma$ and main effects for H and loc in both $\mu$ and $\sigma$ using a gamma family.

m7<-gamlss(R~pvc(Fl, by=A)+H+loc, sigma.fo=~pb(Fl)+pb(A)+H+loc,
           family=GA,data=rent)

GAMLSS-RS iteration 1: Global Deviance = 28221.47
GAMLSS-RS iteration 2: Global Deviance = 28203.83
GAMLSS-RS iteration 3: Global Deviance = 28201.49
GAMLSS-RS iteration 4: Global Deviance = 28201.05
GAMLSS-RS iteration 5: Global Deviance = 28200.94
GAMLSS-RS iteration 6: Global Deviance = 28200.92
GAMLSS-RS iteration 7: Global Deviance = 28200.91
GAMLSS-RS iteration 8: Global Deviance = 28200.9
GAMLSS-RS iteration 9: Global Deviance = 28200.9

g7<-gamlss2(R~s(Fl,by=A)+H+loc, sigma.fo=~s(Fl)+s(A)+H+loc,
           family=GA,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 27732.5048 eps = 0.085379
GAMLSS-RS iteration  2: Global Deviance = 27731.6923 eps = 0.000029
GAMLSS-RS iteration  3: Global Deviance = 27702.3532 eps = 0.001057
GAMLSS-RS iteration  4: Global Deviance = 27701.8835 eps = 0.000016
GAMLSS-RS iteration  5: Global Deviance = 27701.7803 eps = 0.000003

Neural network using Gamma distribution

Fit Neural networks for Fl, A, H, and loc for both $\mu$ and $\sigma$ # gamma family

m8<-gamlss(R~nn(~Fl+A+H+loc,   size = 10,
                     decay = 0.01,  maxit = 100),
               sigma.fo=~nn(~Fl+A+H+loc, decay = 0.01),
           family=GA,data=rent)

Warning in additive.fit(x = X, y = wv, w = wt * w, s = s, who = who,
smooth.frame, : additive.fit convergence not obtained in 30 iterations

GAMLSS-RS iteration 1: Global Deviance = 27528.8
GAMLSS-RS iteration 2: Global Deviance = 27432.87
GAMLSS-RS iteration 3: Global Deviance = 27431.08
GAMLSS-RS iteration 4: Global Deviance = 27431.08

g8<-gamlss2(R~n(~Fl+A+H+loc,   size = 10, decay = 0.01),
               sigma.fo=~n(~Fl+A+H+loc, size = 3,decay = 0.01),
           family=GA,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 27459.5908 eps = 0.094379
GAMLSS-RS iteration  2: Global Deviance = 27423.2965 eps = 0.001321
GAMLSS-RS iteration  3: Global Deviance = 27422.8741 eps = 0.000015
GAMLSS-RS iteration  4: Global Deviance = 27422.8259 eps = 0.000001

Regression trees fits using Gamma distribution

Fit regression trees for Fl, A, H, and loc for both $\mu$ and $\sigma$

m9<-gamlss(R~tr(~Fl+A+H+loc),
               sigma.fo=~tr(~Fl+A+H+loc),
           family=GA,data=rent)

GAMLSS-RS iteration 1: Global Deviance = 27779.77
GAMLSS-RS iteration 2: Global Deviance = 27754.62
GAMLSS-RS iteration 3: Global Deviance = 27754.53
GAMLSS-RS iteration 4: Global Deviance = 27754.53

g9<-gamlss2(R~tr(~Fl+A+H+loc),
               sigma.fo=~tr(~Fl+A+H+loc),
           family=GA,data=rent)

GAMLSS-RS iteration  1: Global Deviance = 27743.3203 eps = 0.085022
GAMLSS-RS iteration  2: Global Deviance = 27740.5592 eps = 0.000099
GAMLSS-RS iteration  3: Global Deviance = 27740.5583 eps = 0.000000

Checking the models using different GAIC. The best model using AIC is m5 while using BIC is m4.

T1 <- GAIC.table(m1,m2,m3,m4,m5,m6,m7, m8, m9)

minimum GAIC(k= 2 ) model: m5
minimum GAIC(k= 3.84 ) model: m4
minimum GAIC(k= 7.59 ) model: m4

T1

          df      k=2   k=3.84   k=7.59
m1  8.372701 28280.94 28296.34 28327.74
m2 11.748554 28086.12 28107.74 28151.79
m3 11.215475 27705.65 27726.29 27768.34
m4 22.250355 27614.78 27655.72 27739.16
m5 33.146682 27603.70 27664.69 27788.99
m6 35.262213 27606.81 27671.70 27803.93
m7 21.380016 28243.66 28283.00 28363.18
m8 95.000000 27621.08 27795.88 28152.13
m9 18.000000 27790.53 27823.65 27891.15

model_GAIC(m1,m2,m3,m4,m5,m6,m7, m8, m9)

Warning

GAIC.table is not working for gamlss2 objects

# T2 <- GAIC.table(g1,g2,g3,g4,g5,g6,g7, g8, g9)
# T2
model_GAIC(g1,g2,g3,g4,g5,g6,g7, g8, g9)

Residuals

This section describes plots to do with the residuals of a single GAMLSS fitted model. Plotting, the residuals is very important, because if the model is correct, the residuals of the model should be like a white noise. In GAMLSS we use the (randomised) normalised residuals. Randomisation happens only if the distribution is discreet, or if it is censored. Normalisation means that if the model is correct or adequate, then the residuals should look like a normal distribution.

`resid_index()`

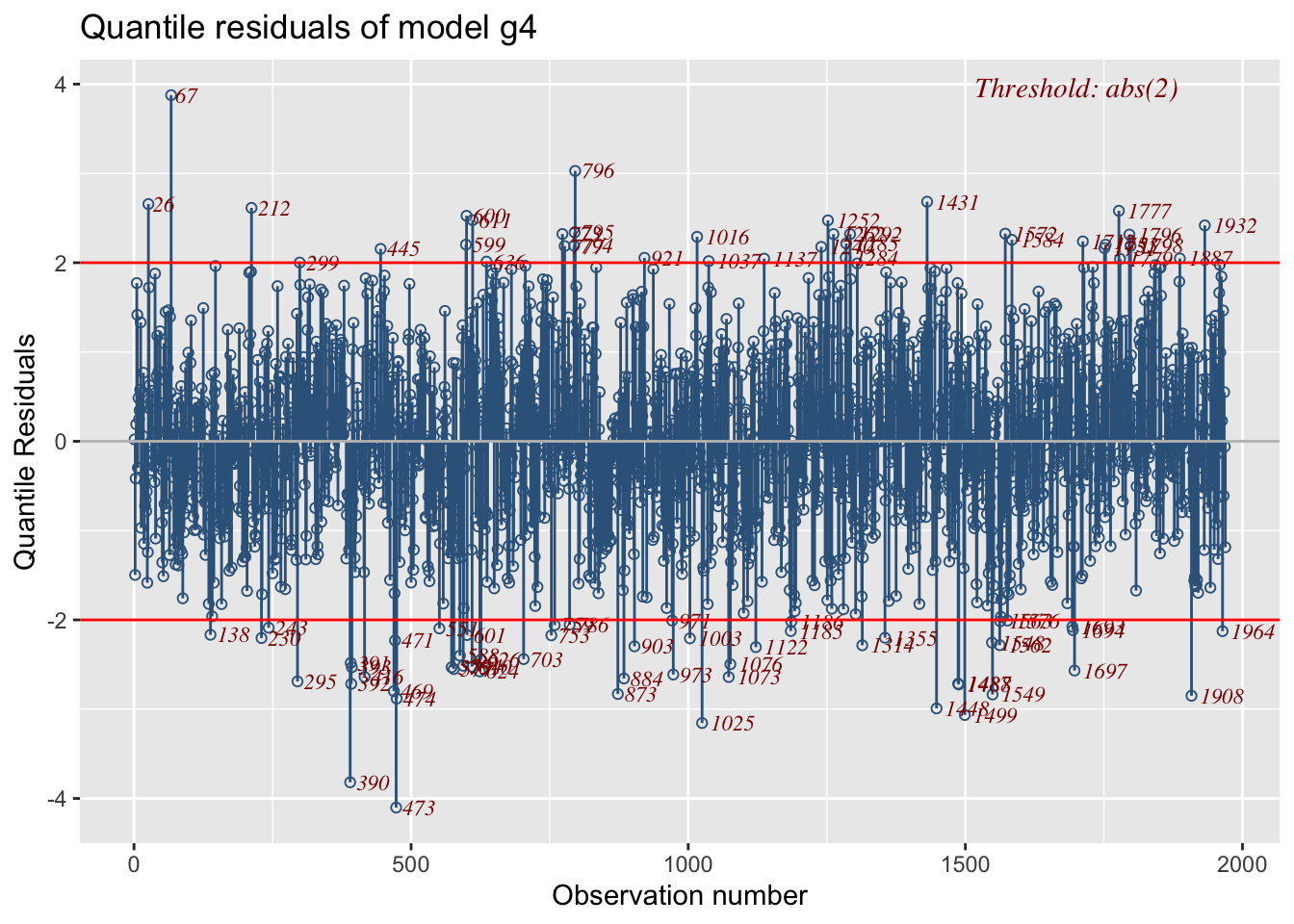

By plotting, the residual against the data index we would expect that there is no pattern in the plot because of the assumption that the observations (given the explanatory variables) are independent. Figure 8 show the standard residual plot against the index of the data. The argument value has to do with the outliers hoghlighted in the plot and can be change to a higher cut-off point. Other type of residuals, suitable standardised, not necessarily GAMLSS model residuals, can be plotted by using the argument resid.

gg <-resid_index(g4)
gg

Different models

Residual plots from different models can be plotted in different graphs see Figure 9.

g11 <-resid_index(g1)
g12 <-resid_index(g2)
g13 <-resid_index(g3)
g14 <-resid_index(g4)
library(gridExtra)
grid.arrange(g11,g12,g13,g14 )

Different range of an x-variable

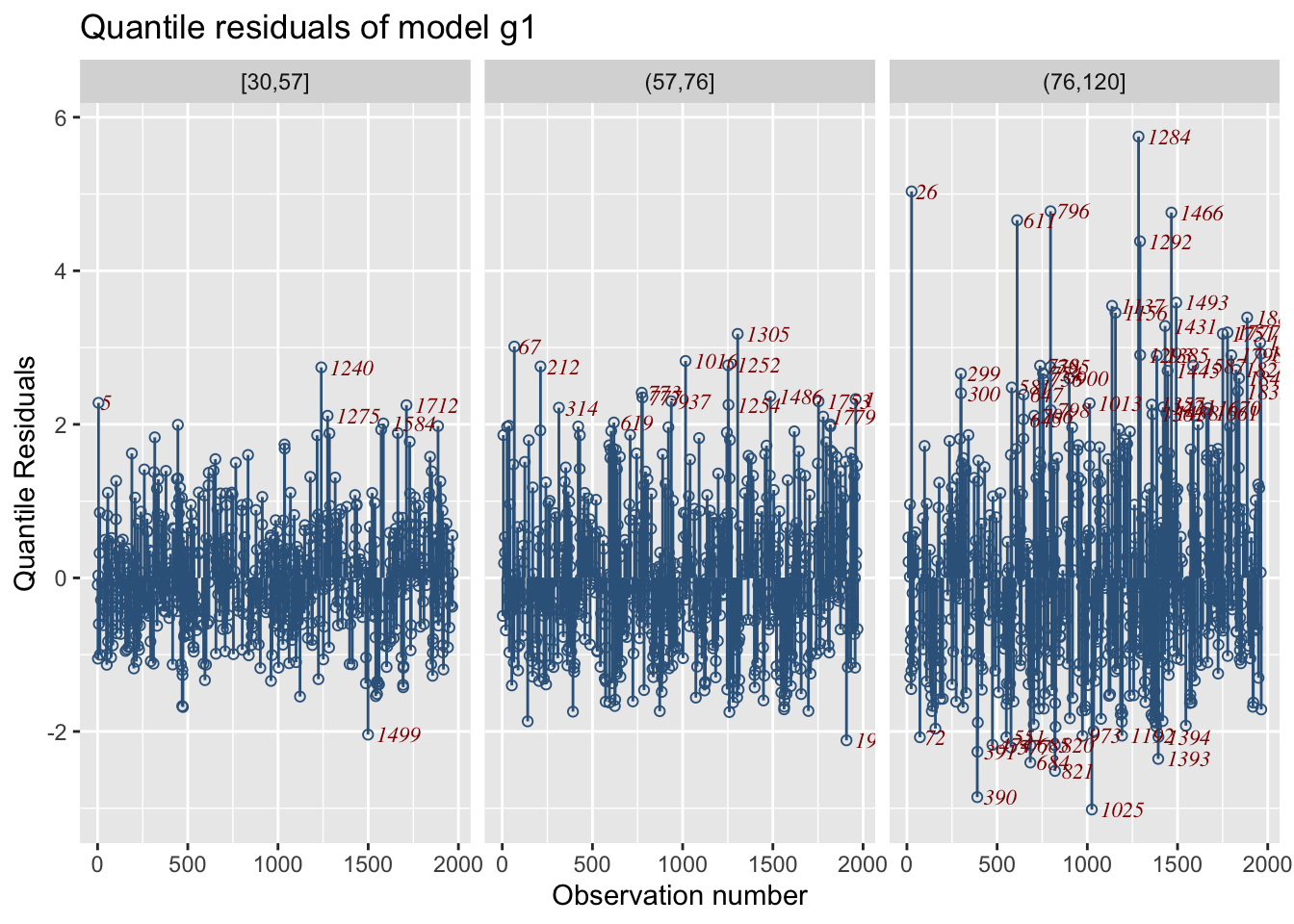

Here the residual plot is split against one continuous explanatory variables Fl using the function facet_wrap(). The function splits in three different cut points because the cut_number(rent\$Fl, 3) is used. Note that in order for facet_wrap() to work we had to suppress the horizontal likes using the argument no.lines=TRUE.

resid_index(g1, no.lines=TRUE)+
   facet_wrap(~cut_number(rent$Fl, 3))

Figure 10: Resisduals plot against the x-variable split in tree sections.

Here we split according to one continuous an one categorical x-variables.

resid_index(g1, no.lines=TRUE) +
  facet_grid(cut_number(rent$Fl, 3)~rent$loc)

Figure 11: Residuals plot against two x-variable split in tree sections.

`resid_mu()`

A plot of the residual against the fitted values of the model, usually reveals whether there is a heterogeneity in the data. The resid_mu() plots the residual from model m1 against the fitted values for the model for $\mu$:

resid_mu(g1)

Figure 12: Residuals plot against the fitted values for models `m1`

We can observe a fan type of behaviour in the plot, that is the residuals are become bigger for larger fitted values of the response. This behaviour is typical for models with heterogeneity in the data. Remember m1 does not have a model for $\sigma$. In model m4 we fit an mode for $\sigma$ so the residuals are better.

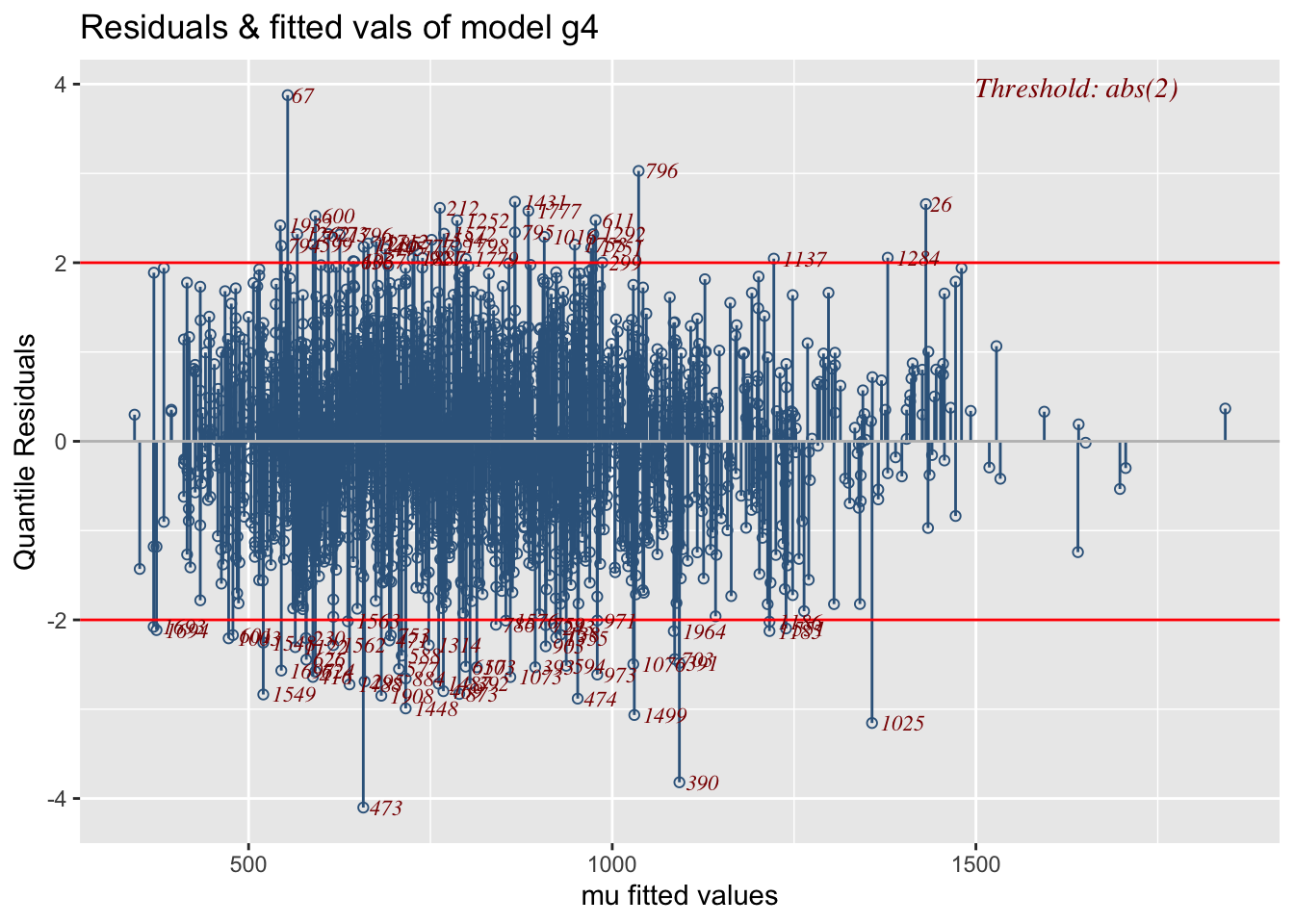

resid_mu(g4)

Figure 13: Residuals plot against the fitted values for models `m4`

`resid_quantile()`

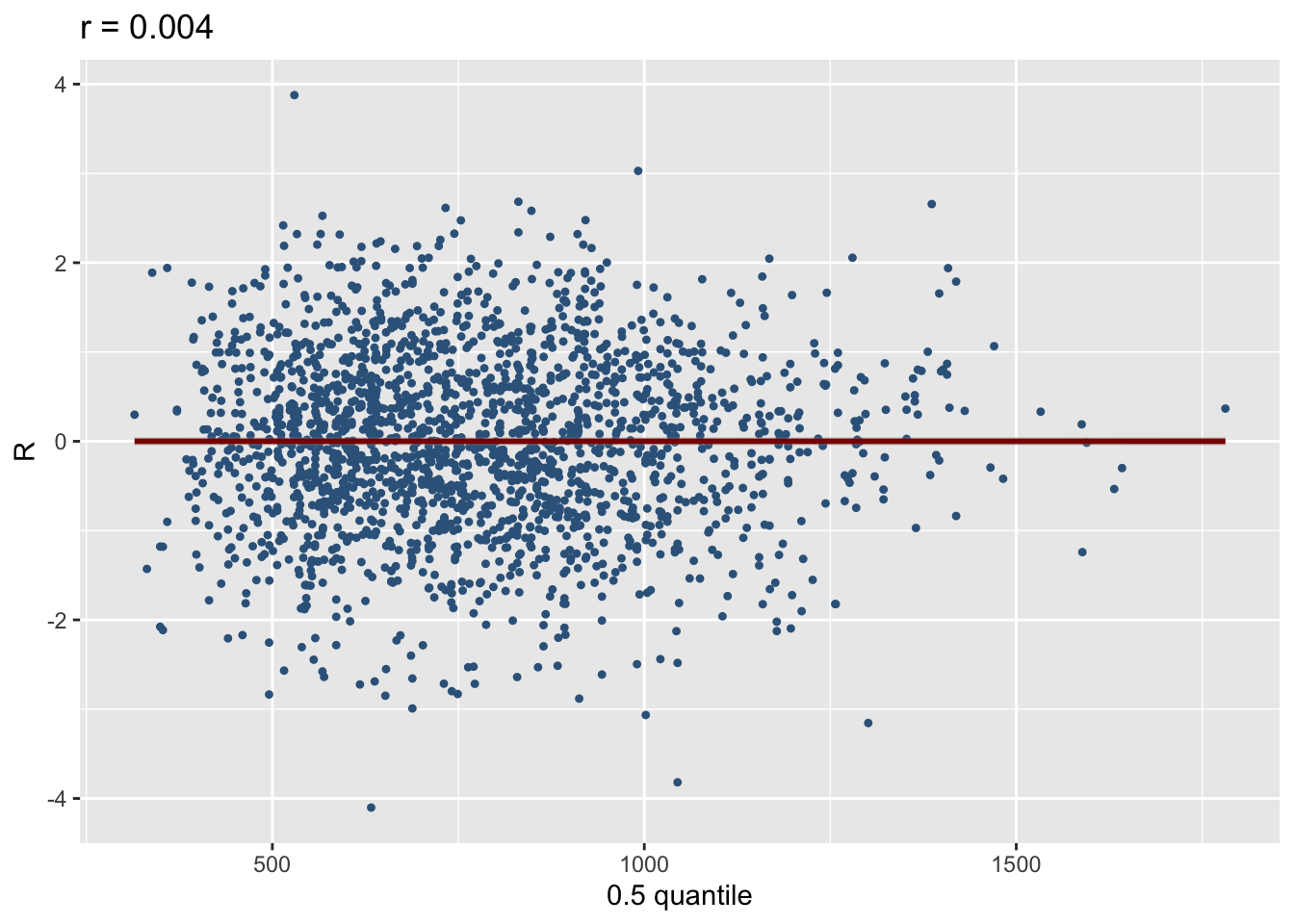

Residual plots from model m1 against the fitted quantile (including the median) values can be obtained using:

resid_quantile(g4)

Residuals plot against the fitted 50 percent fitted quantiles of model `m4`

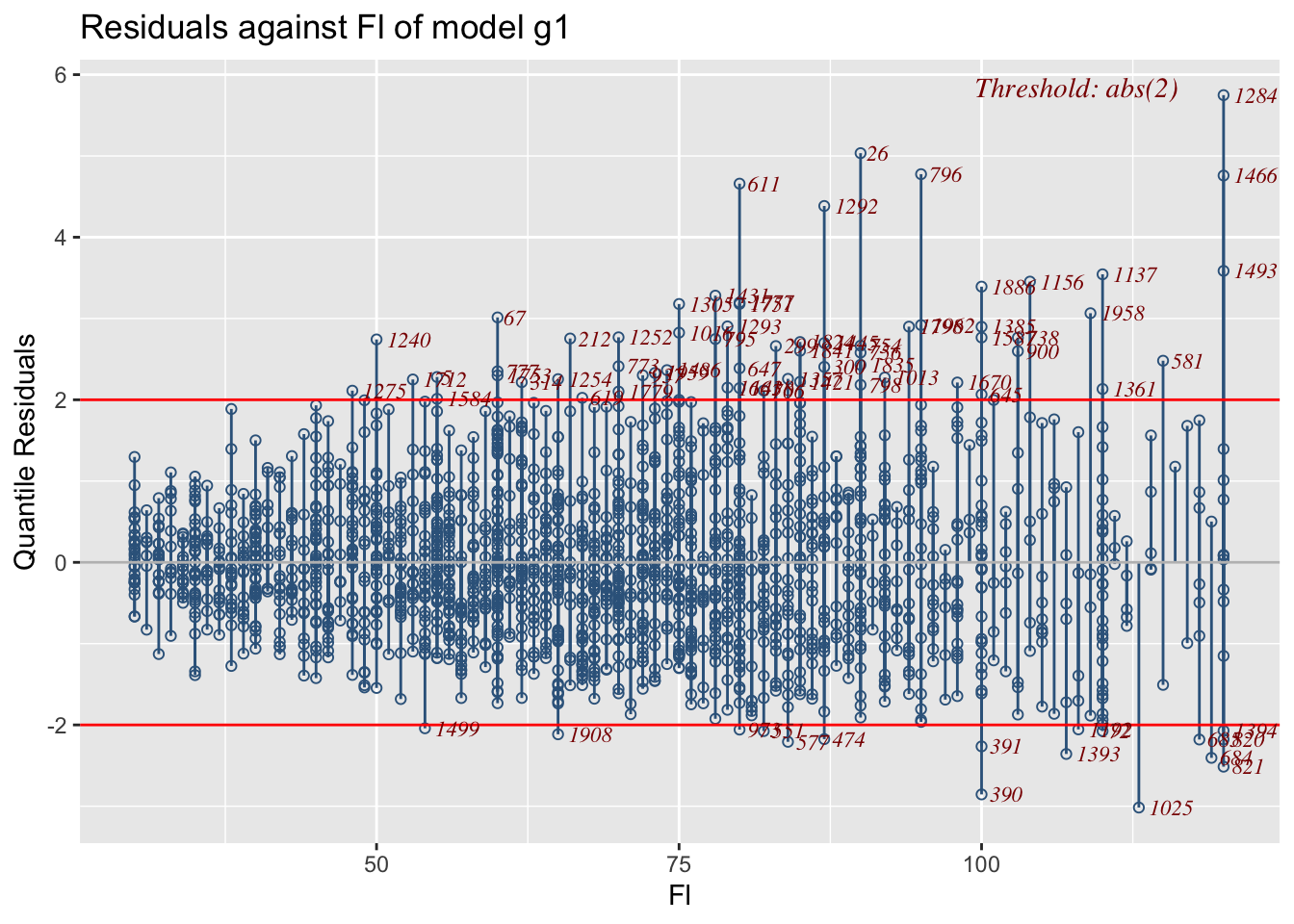

`resid_xvar()`

Against a continuous explanatory variable

Residual plots against a continuous explanatory variables can be plotted using: resid_xvar():

resid_xvar(g1,Fl)

resid_xvar(g1,A)

Against a categorical explanatory variable

The function is working differently for categorical x-variables.

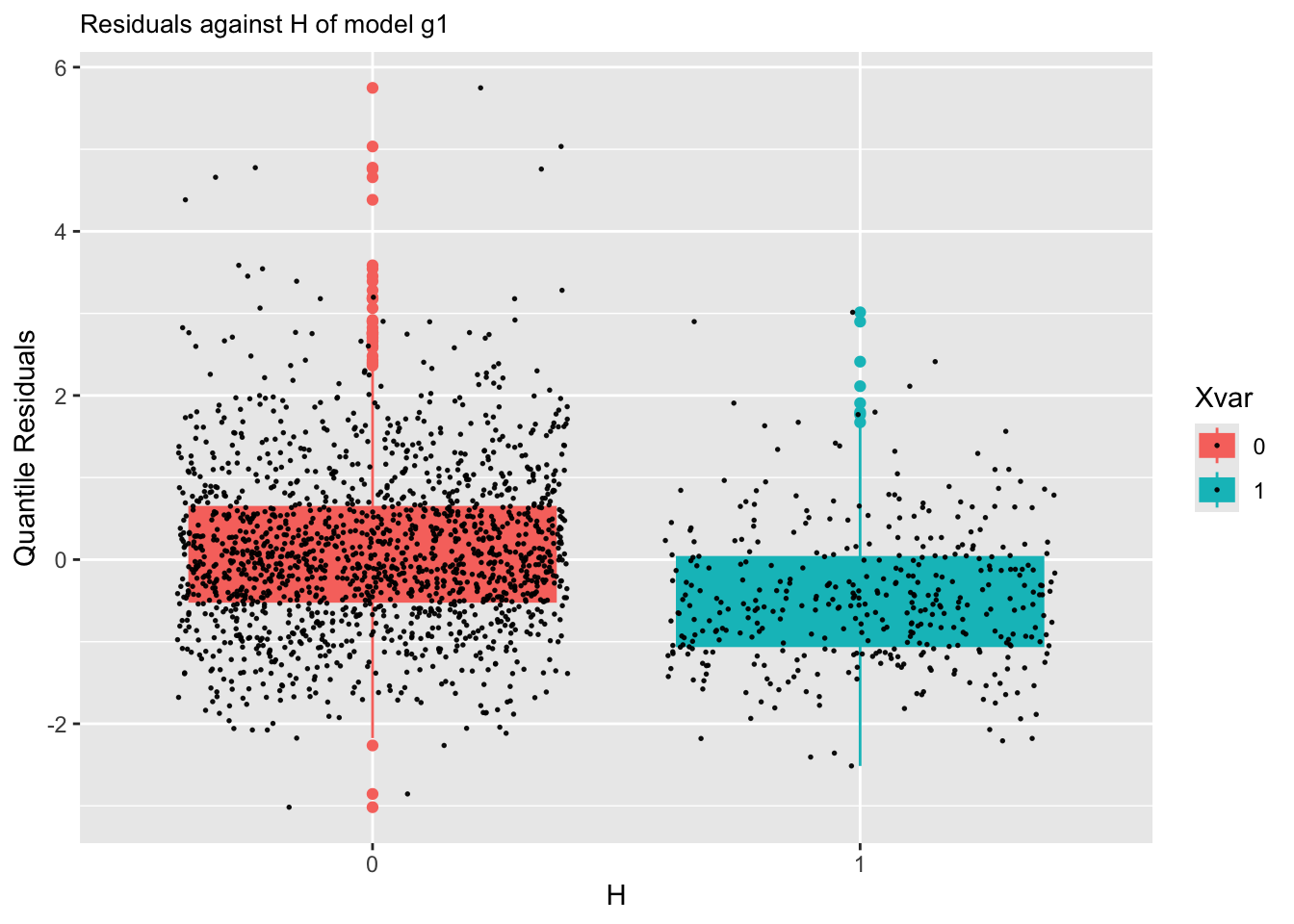

resid_xvar(g1,H)

Resisduals plot against categorical x-variables for model `m1`

resid_xvar(g1,loc)

Or for a different models:

resid_xvar(g4,loc)

Resisduals plot against categorical x-variables for model `m4`

`resid_qqplot()`

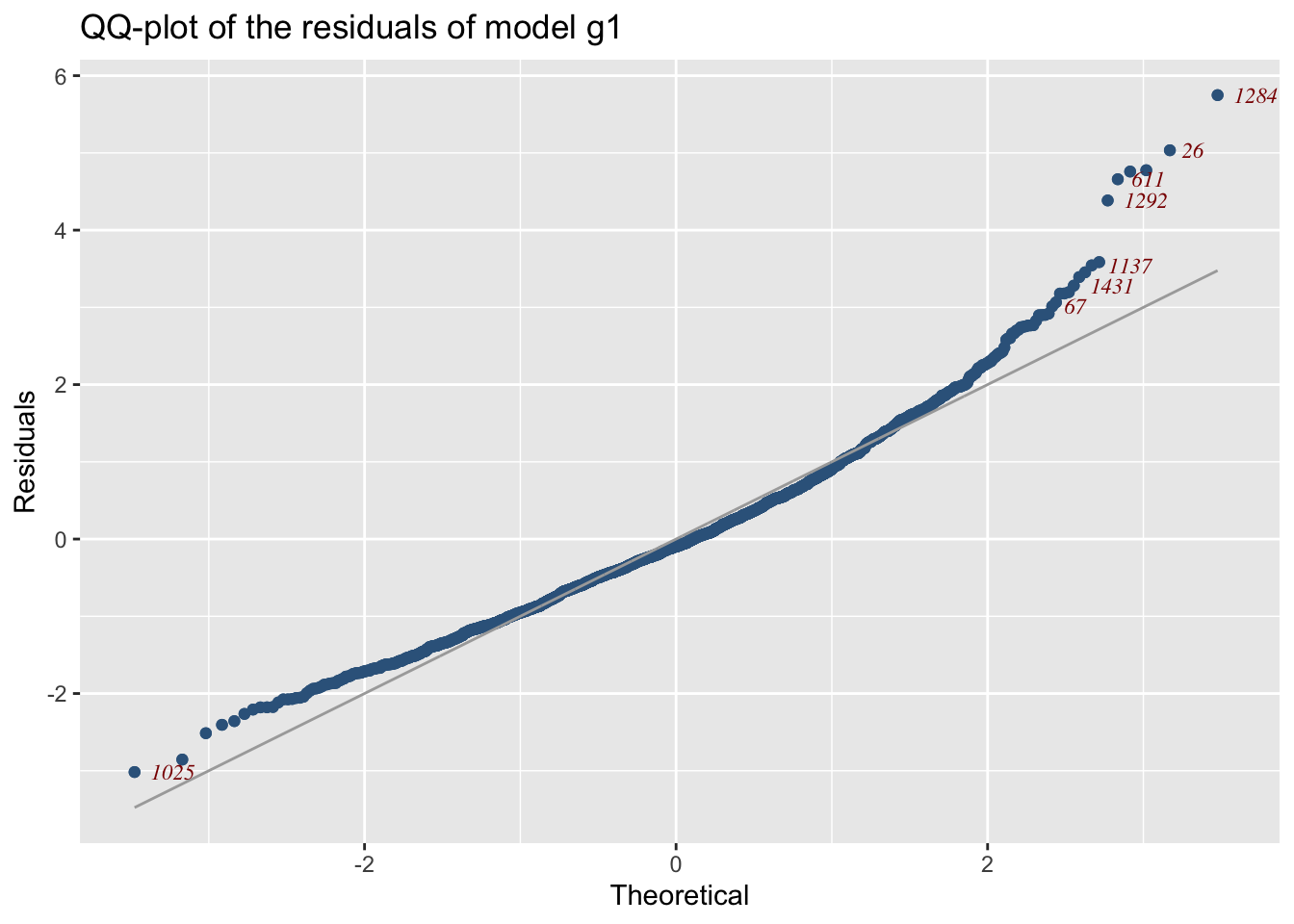

The function resid_qqplot() can be use to get a QQ-plot of the residuals.

gg <-resid_qqplot(g1)
gg

The plot appears in Figure 14.

For comparing two different models you can use

To add another model QQ-plot try

Warning

add_resid_qqplot is not working for extra gamlss2 objects

gg1 <-add_resid_qqplot(gg, m4)
#gg1

or alternatively you can use the function model_qqplot() which can display more than two models.

For different values of x-variables

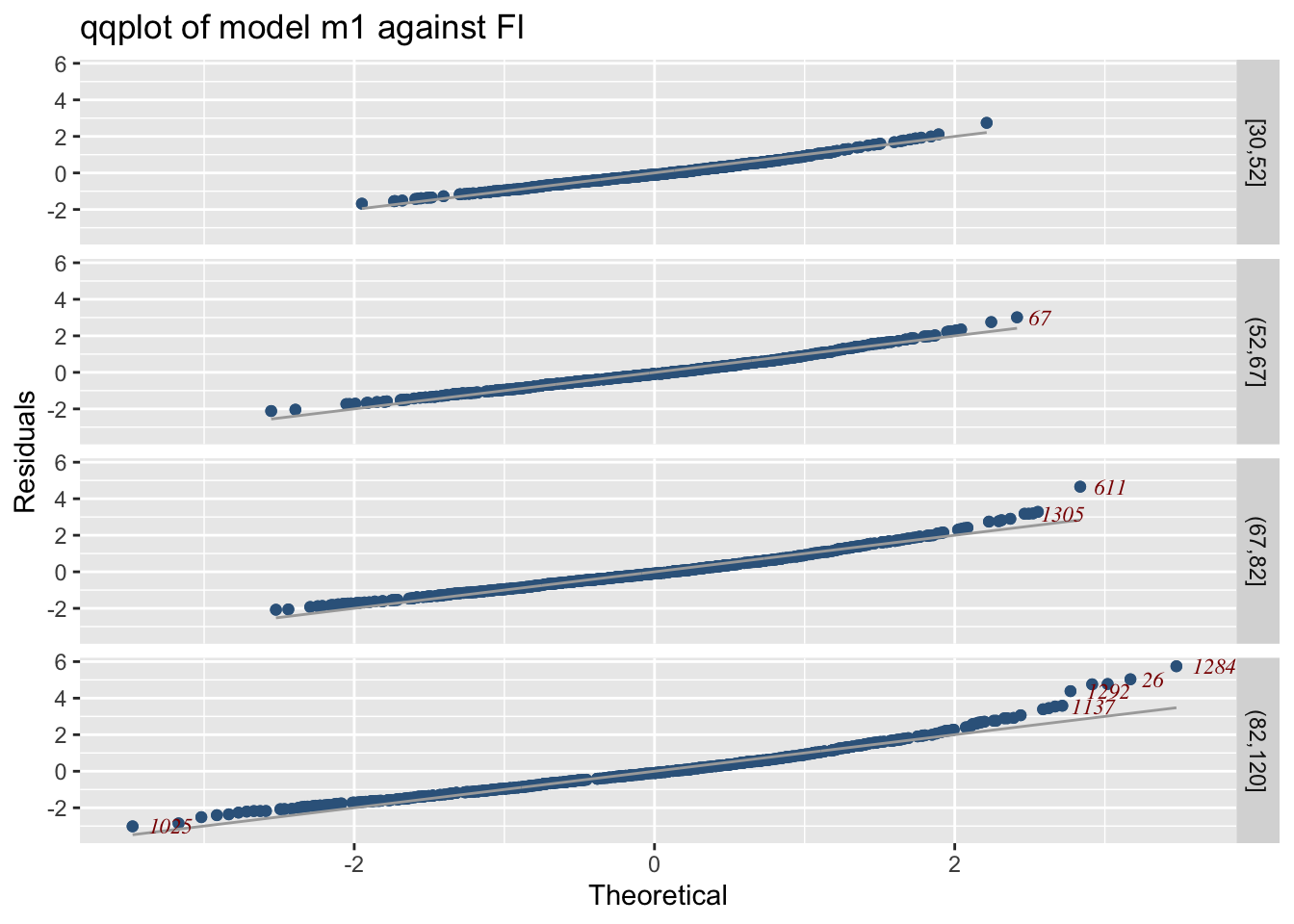

One x-variable

gg+facet_grid(cut_number(rent$Fl, 4))+
  ggtitle("qqplot of model m1 against Fl")

Figure 15: QQ-plot of the residuals of model `m1` against `Fl` and `A’

Two x-variables

gg+facet_grid(cut_number(rent$Fl, 3)~rent$loc)+
  ggtitle("qqplot of model m1 against Fl and A")

Figure 16: QQ-plot of the residuals of model `m1` against `Fl` and `A’

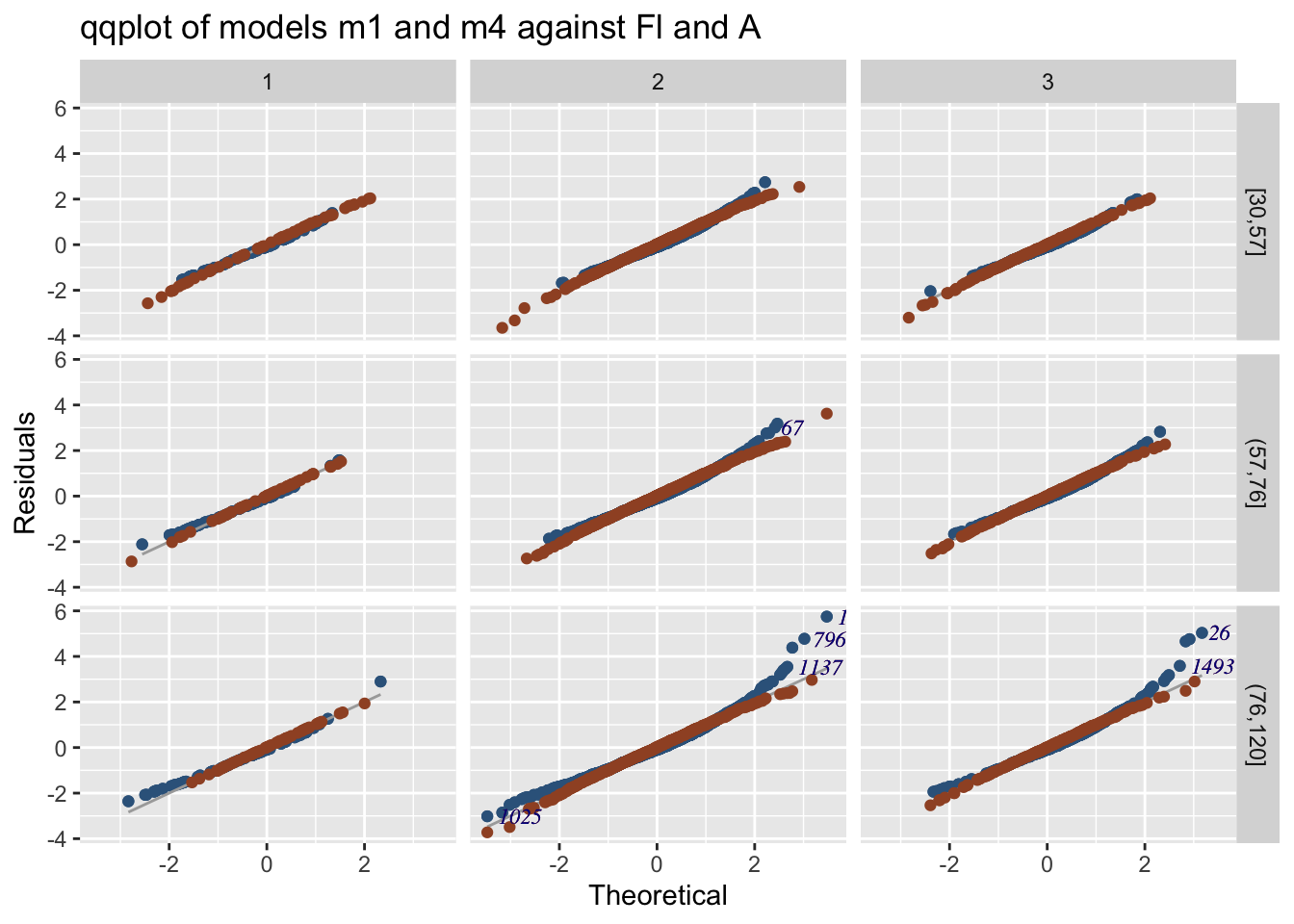

gg1+facet_grid(cut_number(rent$Fl, 3)~rent$loc)+
  ggtitle("qqplot of models m1 and m4 against Fl and A")

Figure 17: QQ-plot of the residuals of models `m1` and `m4` against `Fl` and `A’

`resid_wp()`, Worm plots

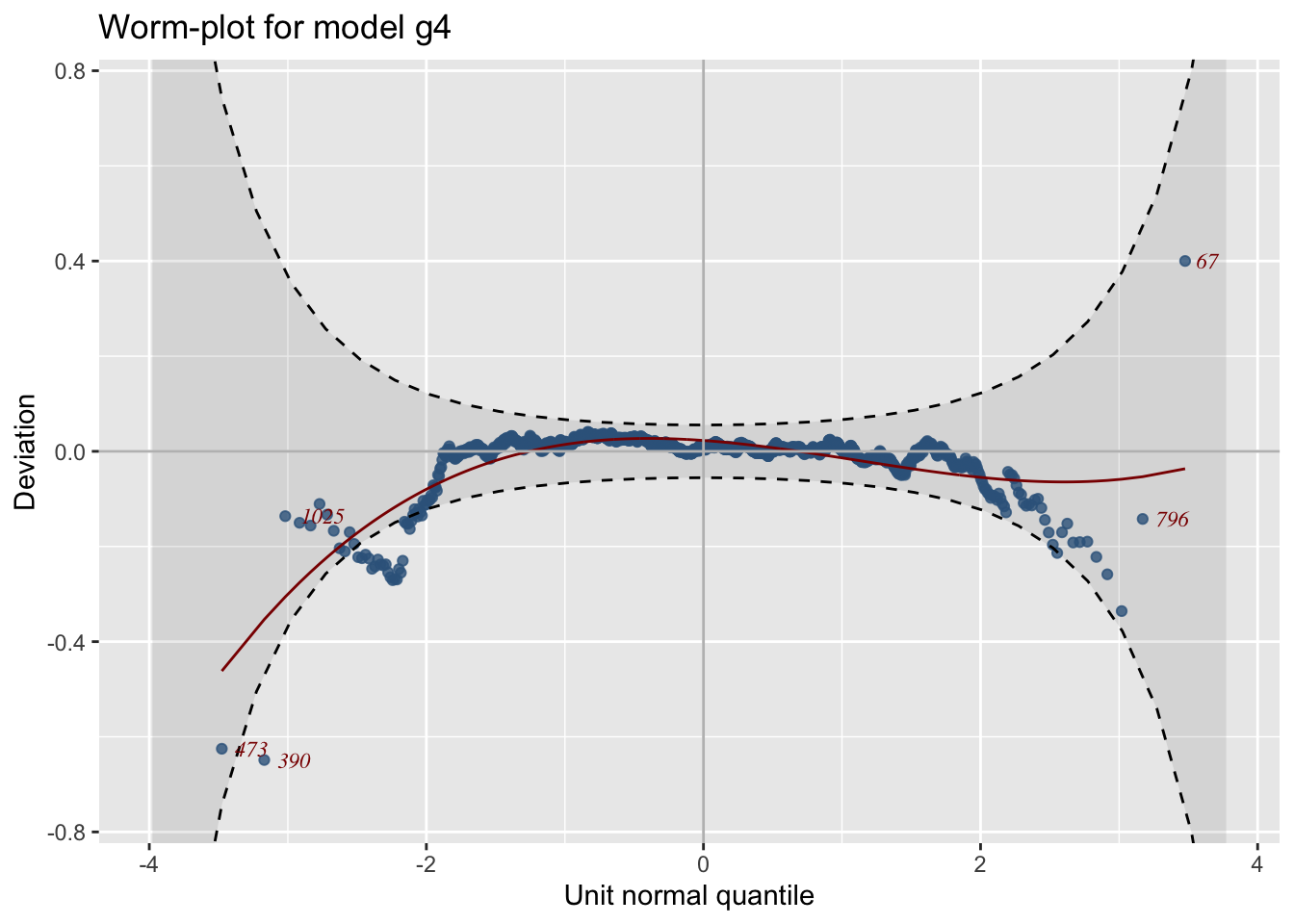

The worm plot for a single model can be plotted using:

gg<-resid_wp(g4)
gg

Figure 18: Worm-plot of the residuals for model `m4`

See Figure 18.

`resid_wp_wrap()`

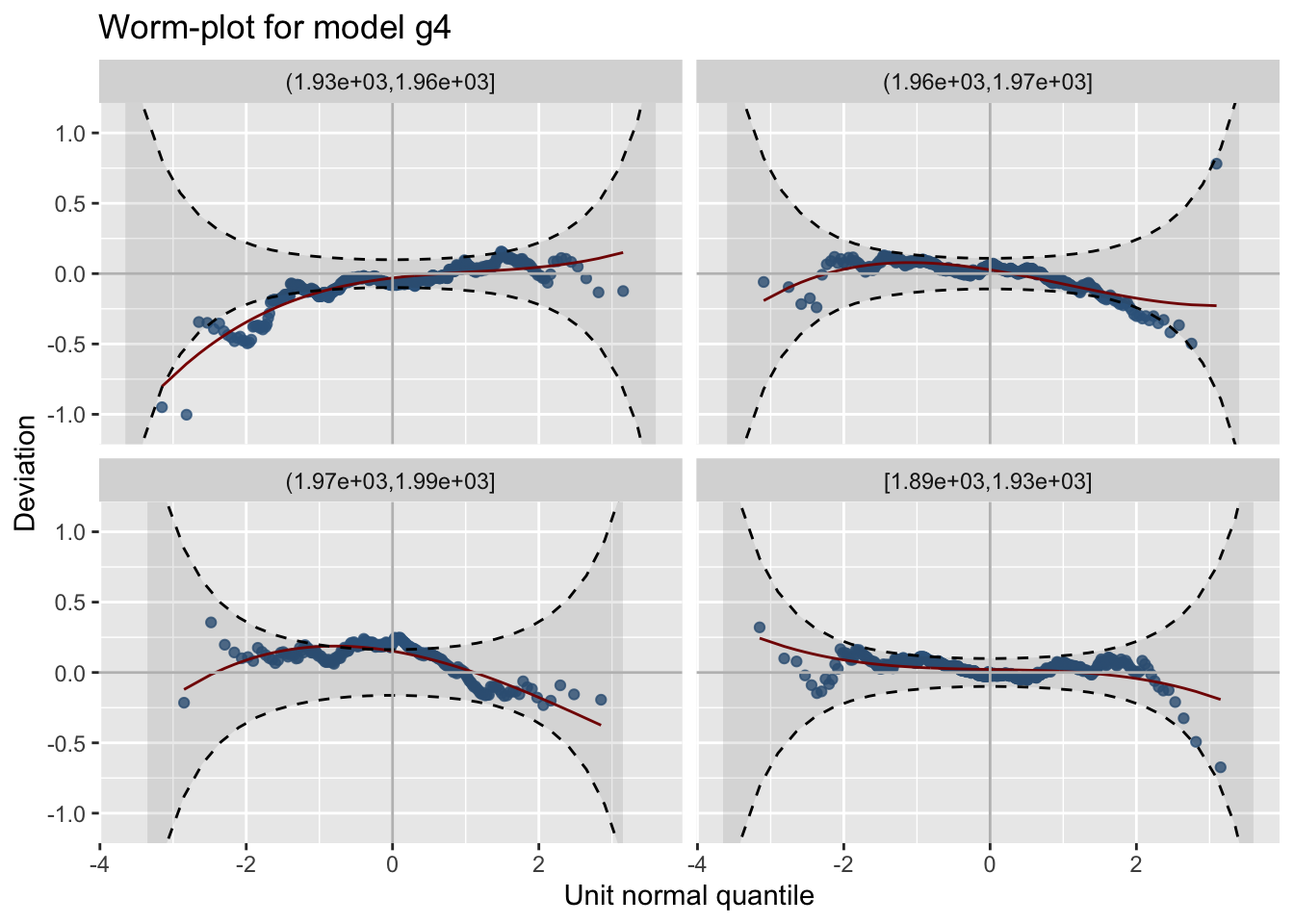

The worm plot for a single model at different values of an explanatory variable can be plotted using:

gg1 <-resid_wp_wrap(g4, xvar=rent$A)
gg1

Figure 19: Worm-plot of the residuals for model `m4` at different values of `A`

See Figure 19

`resid_density()`

The single density

The function resid_density() plots the density of the residuals for one model while the function model_densitity() for more than one model.

Here we plot the density of the residuals for model m4. See Figure Figure 20 for the plot.

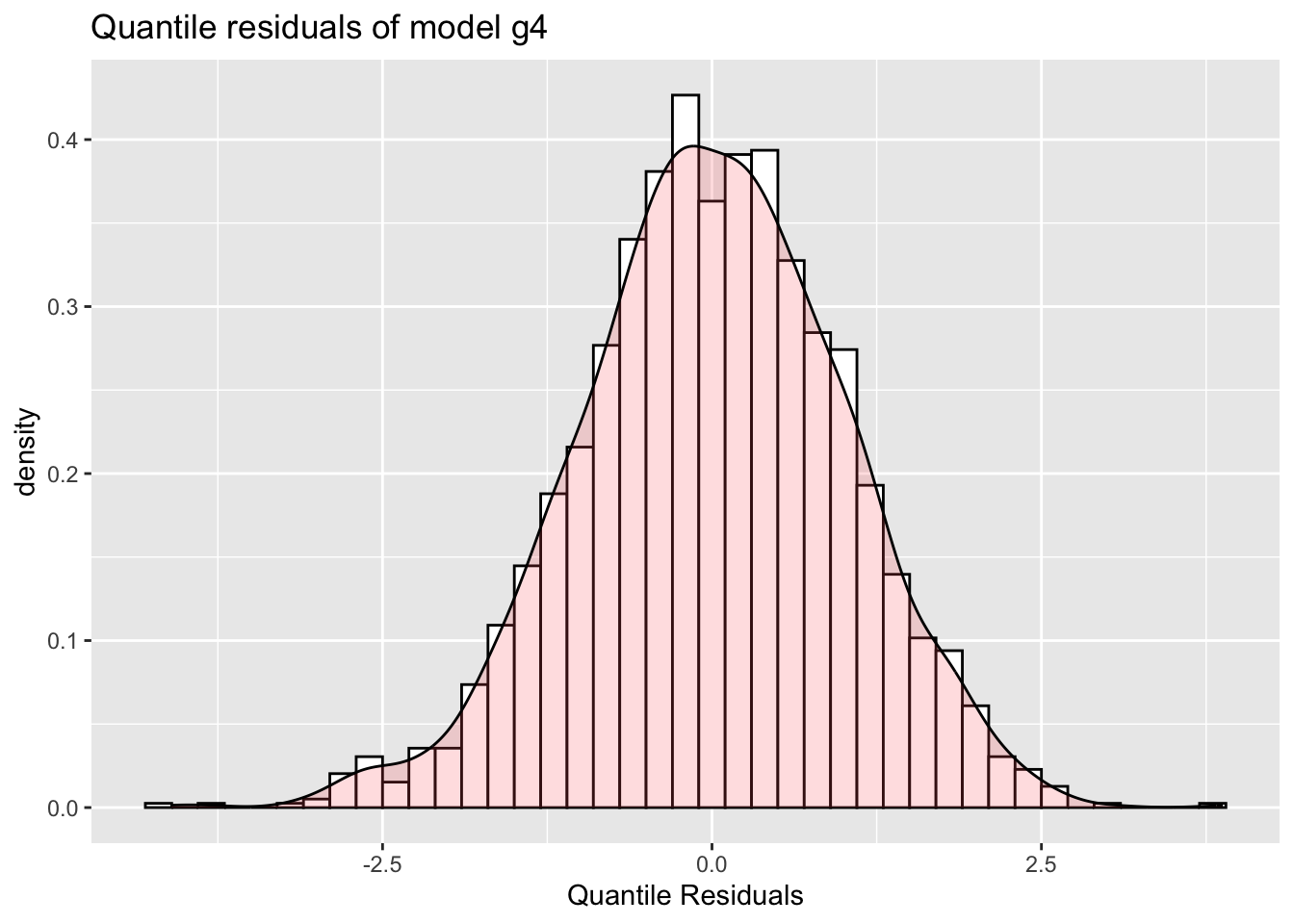

gg<-resid_density(g4)
gg

Figure 20: A density plot of the residuals

The multiple densities

Here we plot the density of the residuals for model m4 against two explanatory variables, Fl and A.

gg+facet_grid(cut_number(rent$Fl, 3)~rent$loc)

Figure 21: A density plot of the residuals against `Fl` and `A`

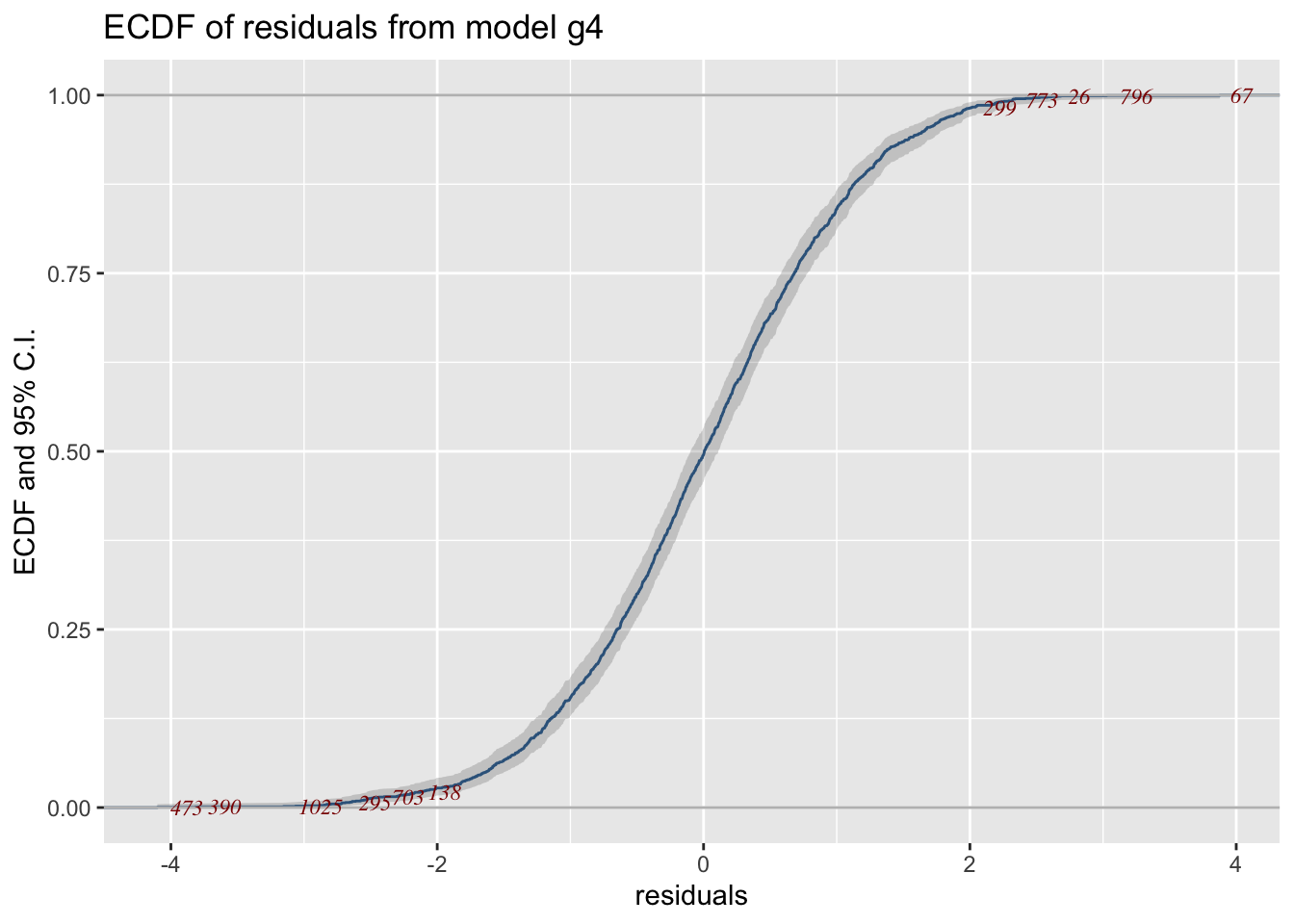

`resid_ecdf()`

Figure Figure 22 show the empirical cumulative distribution function of the residuals of model m4

gg <- resid_ecdf(g4)
gg

Below cdf of a normally distributed variable with $\mu=0$ and $\sigma=1$ is added to the previous plot.

gg+stat_function(fun = pNO, args=list(mu=0, sigma=1), col="red")

Figure 23: The ECDF of the residuals with added normal distribution.

`resid_dtop()`

The function resid_dtop() plot a de-trended empirical cdf plot. See Figure 24 for the plot.

gg<-resid_dtop(g4)
gg

`resid_plots()`

The function resid_plots() tries to imitate the function plot.gamlss() of the gamlss package.

resid_plots(g4)

Different themes

There are also different themes in the plot. Next in Figure Figure 26 we are trying theme="new":

resid_plots(g4, theme="new")

Figure 26: The plot of residuals with `theme=new’.

Figure 27 has theme="ecdf":

resid_plots(g4, theme="ecdf")

Figure 27: The plot of residuals with `theme=ecdf’.

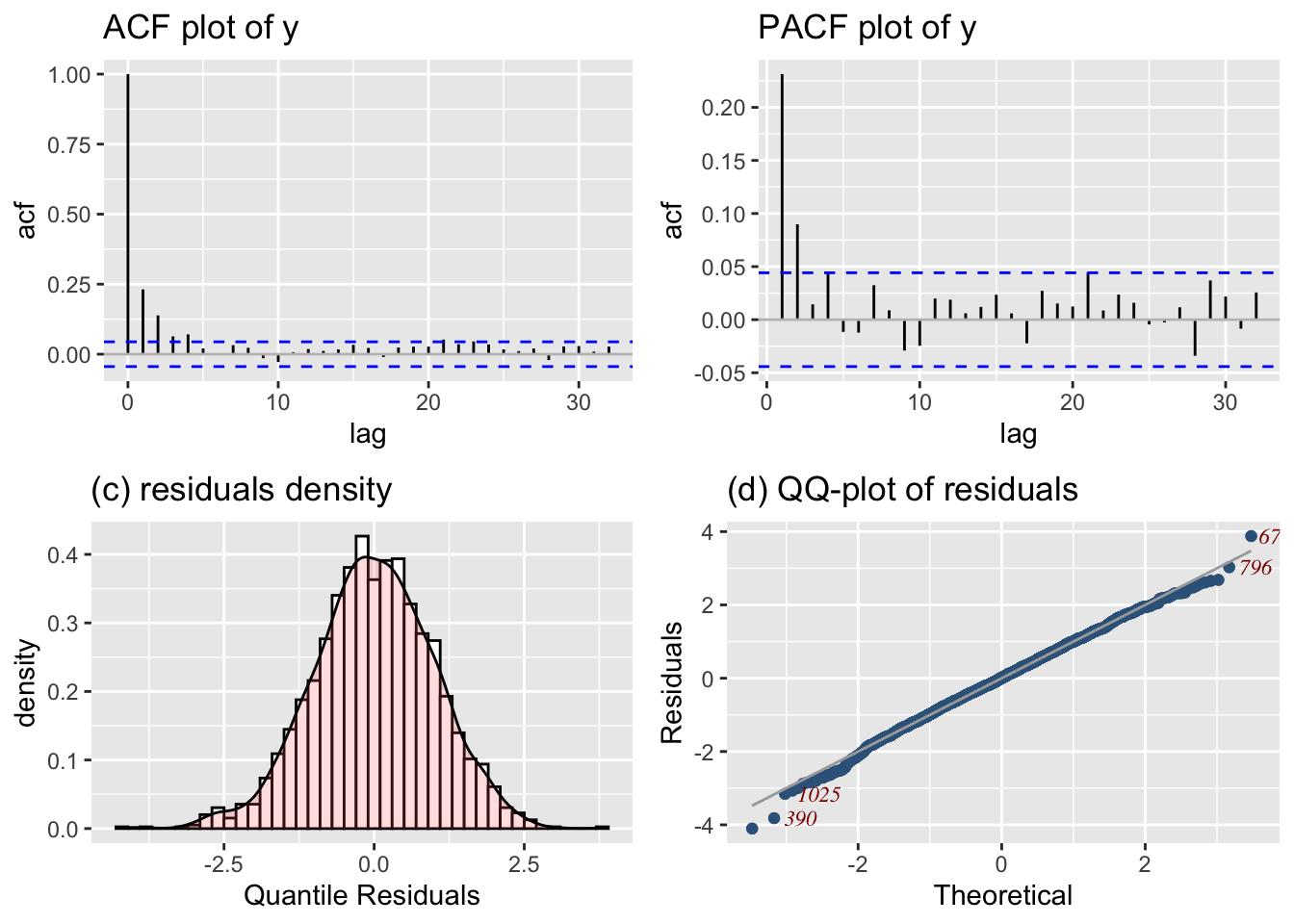

Figure 28 has theme="ecdf":

  resid_plots(g4, theme="ts")

Figure 28: The plot of residuals with `theme=ts’.

`resid_symmetry()`

A symmetry plot is useful for detecting asymmetry (skewnwess) in the residuals. Here we plot the symmetry plot of the residuals for model m4.

gg<-resid_symmetry(g4)
gg

Figure 29: A symmetry plot of the residuals.

Responce

`resp_mu()`

Plotting, the response variable against the fitted values is a traditional way of checking the adequacy of the model in linear regression model situation. The closer the points of the plot to 45% line the better the model. Also a hight correlation coeficient indicates a good fit. For GAMLSS this is equivalent of plotting the response against the fitted values of the $\mu$ model. A strong linear pattern indicates that the $\mu$ model is adequate.

Figure 30 plots the response variable against the fitted values for $\mu$. The plot also show the 45 degrees line between the two variables. The relation should be close to linear as possible. The correlation between the response and the fitted values for $\mu$ is 0.6031942, -0.1262289 which is reasonable hight.

resp_mu(g4)

Figure 30: Response against the `mu` fitted values.

`resp_param()`

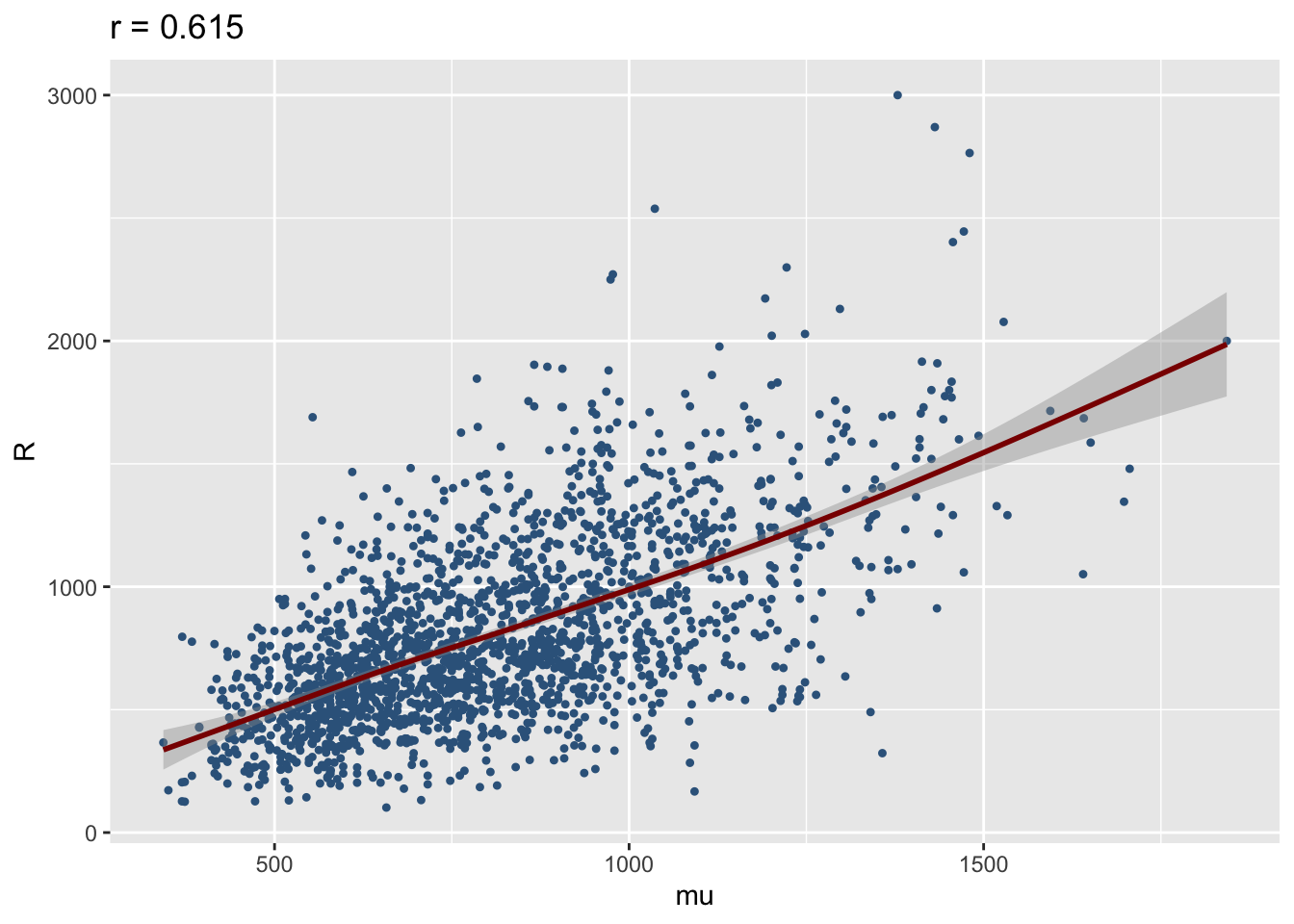

GAMLSS have more than one parameters, so plotting the response variable against the the other parameters fitted values could be of interest. The function resp_param() can do that. It plots the response against any parameter fitted values. Figure 31 shows the response against the fitted values for $\mu$ and $\sigma$ respectively for model g4. The first plot has the usual interpretation describes in Section Section 5.1 the second need more thought.

resp_param(g4)
# resp_param(g4, "sigma")

Figure 31: Residuals plot against the fitted `mu` and `sigma`, respectively, for model `g4’

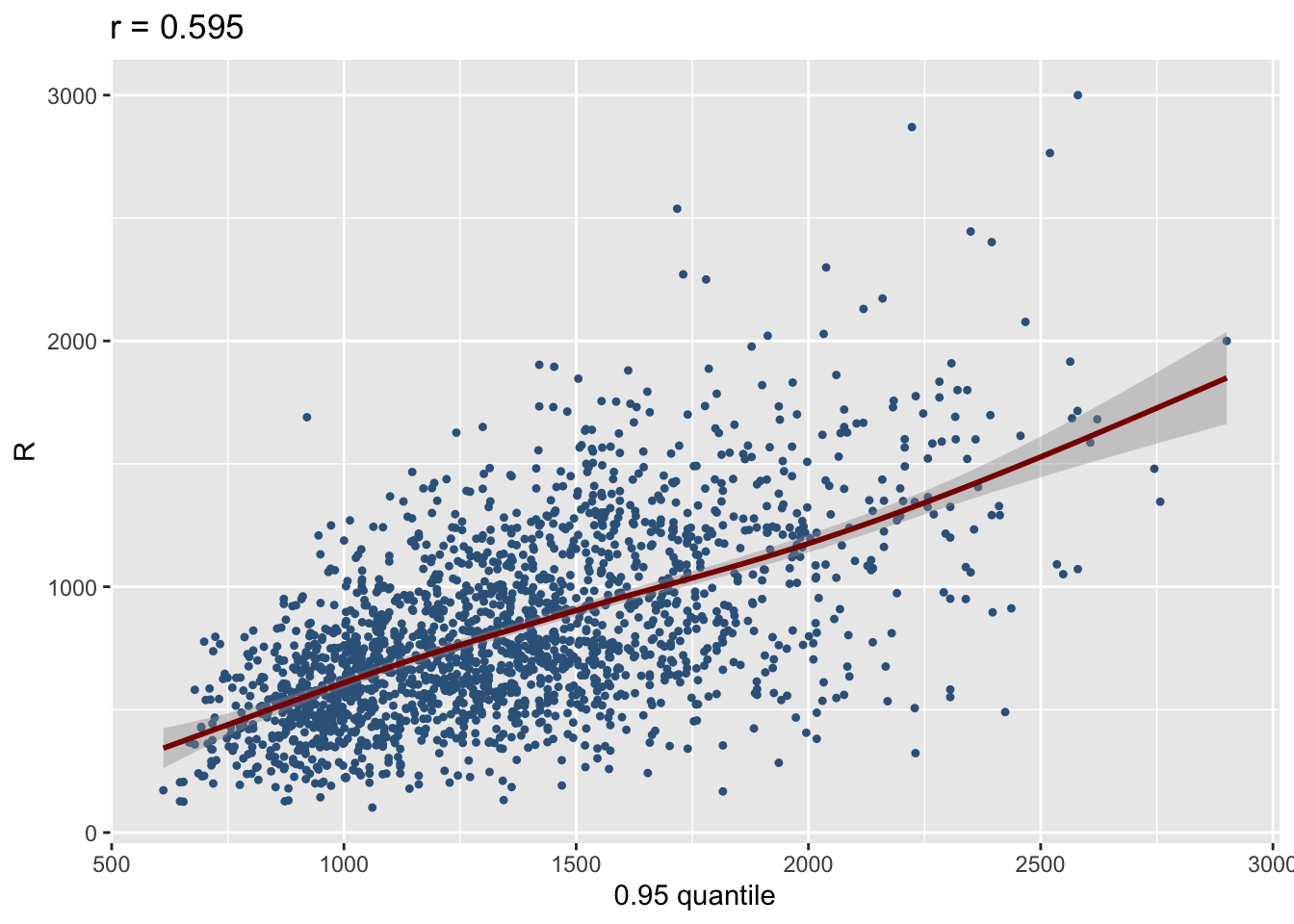

`resp_quantile`

The function resp_quantile plots the response variable against any fitted quantile. Here we plot the respose against the 0.95 quantile. Again the interpretation needs more thought.

resp_quantile(g4, quantile=0.95)

Fitted

`fitted_devianceIncr()`

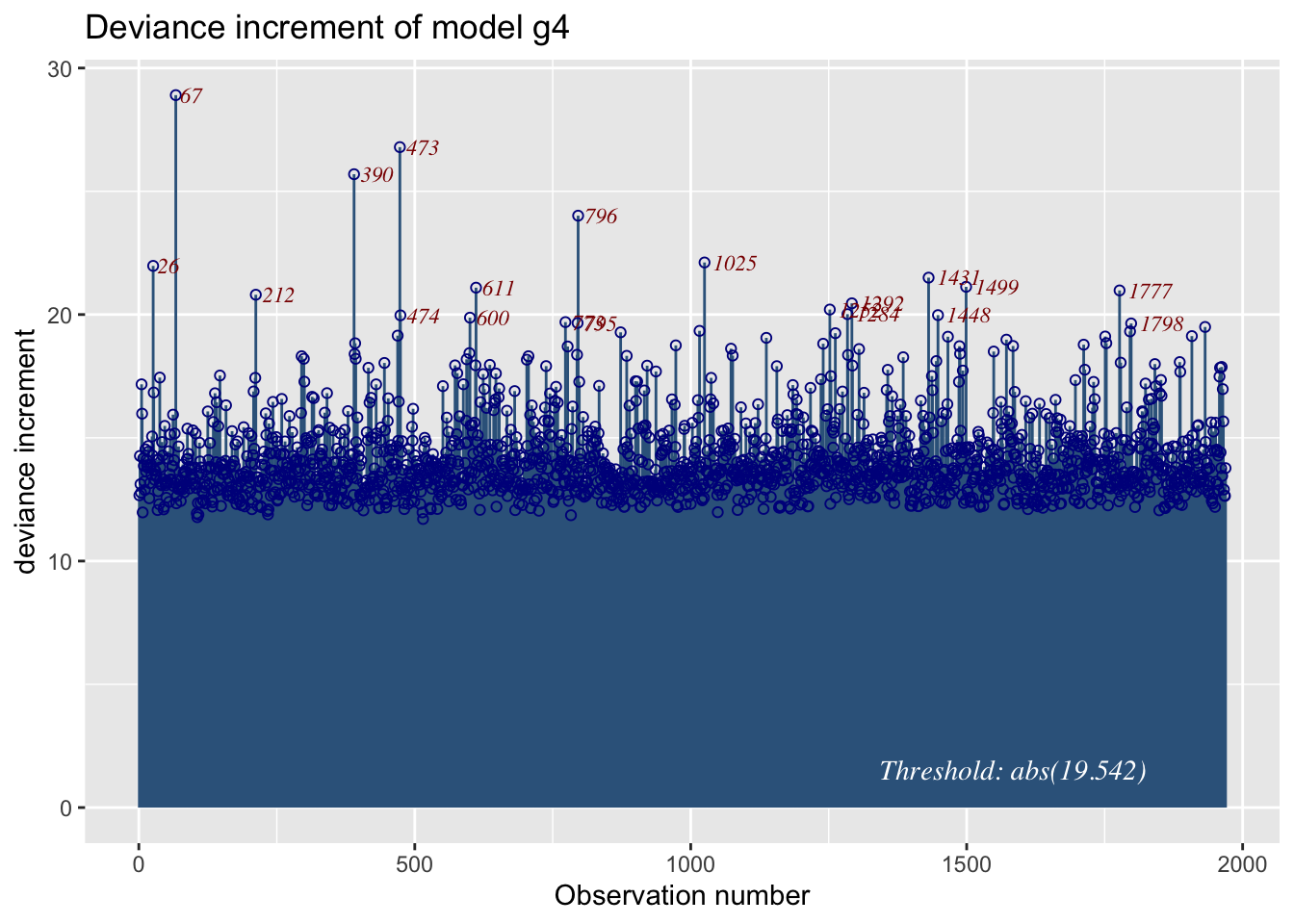

The functionfitted_devianceIncr() plots the deviance increment from a fitted gamlss model.

fitted_devianceIncr(g4)

Figure 33: Plotting deviance increment from a fitted GAMLSS model.

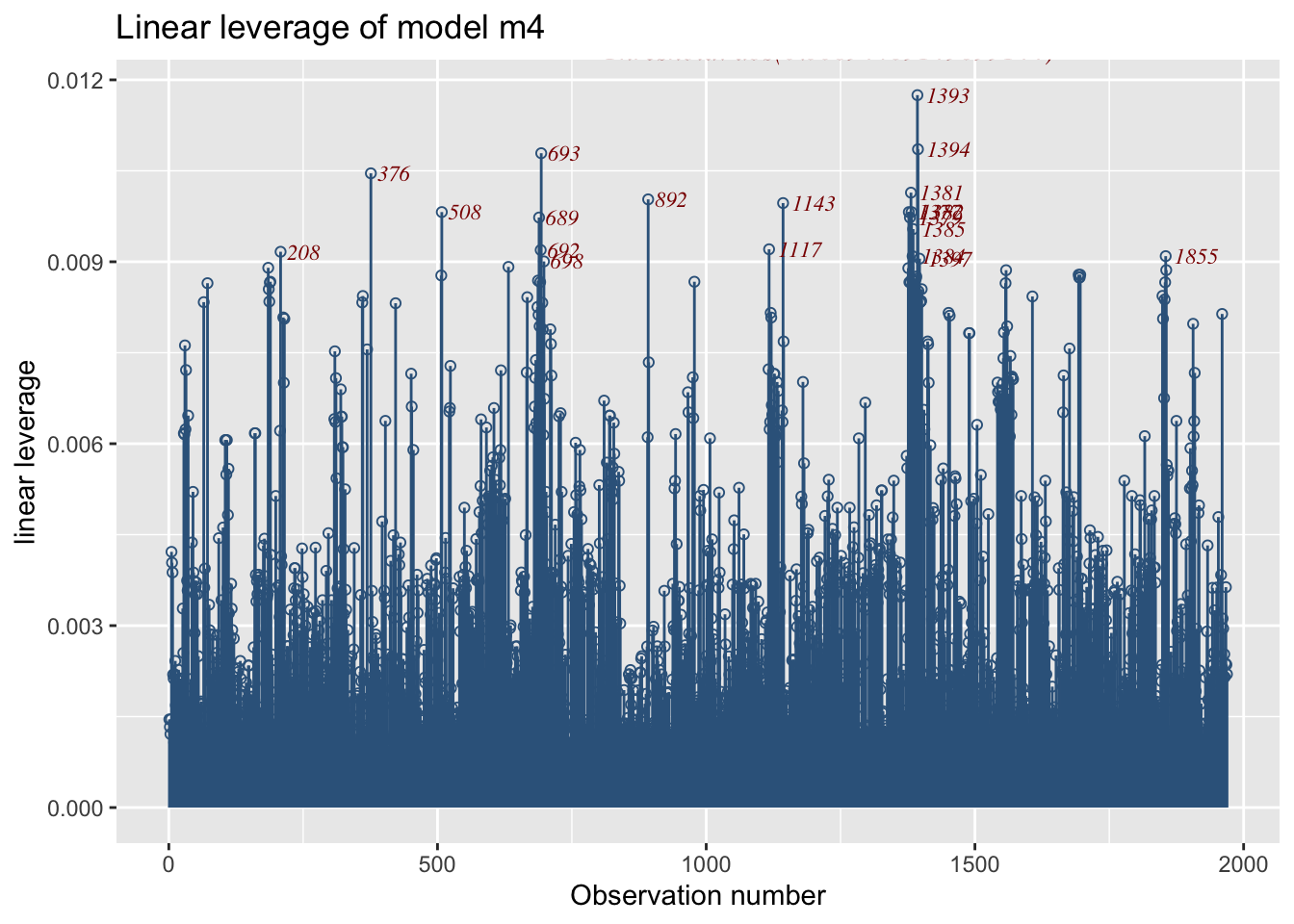

`fitted_leverage()`

The function plots the linear leverage from a fitted GAMLSS model.

fitted_leverage(m4)

1969 observations with 5 variables

Figure 34: Plotting linear leverage from a fitted GAMLSS model.

Warning

fitted_leverage is not working for gamlss2 objects

`fitted_pdf()`

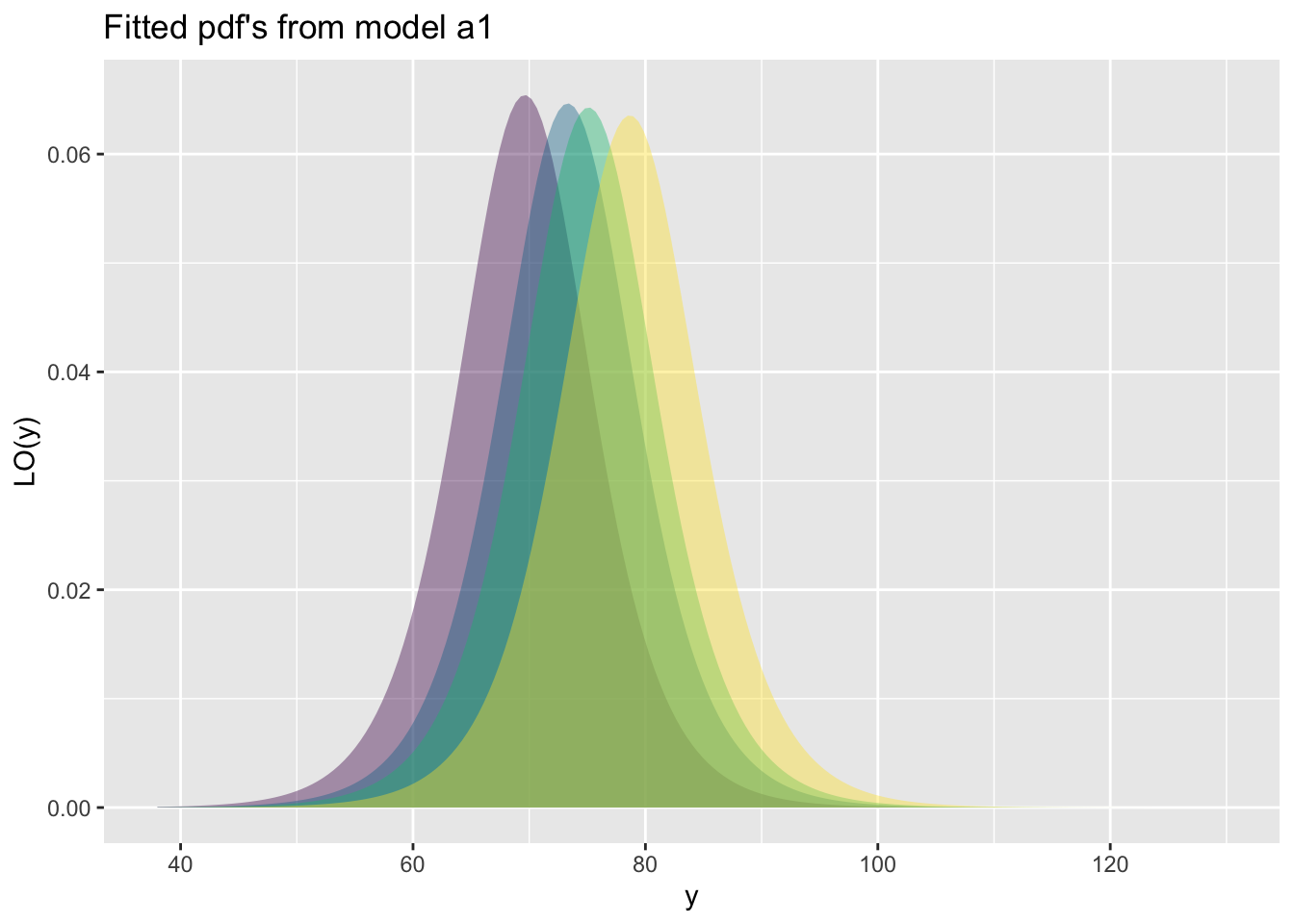

The function fitted_pdf() plots individual pdf’s from a fitted model. It needs the argument obs indicating which observation number to plot.

First a continuous distribution:

a1 <- gamlss2(y~pb(x),sigma.fo=~x, data=abdom, family=LO)

GAMLSS-RS iteration  1: Global Deviance = 4884.1282 eps = 0.342686
GAMLSS-RS iteration  2: Global Deviance = 4778.7262 eps = 0.021580
GAMLSS-RS iteration  3: Global Deviance = 4778.6926 eps = 0.000007

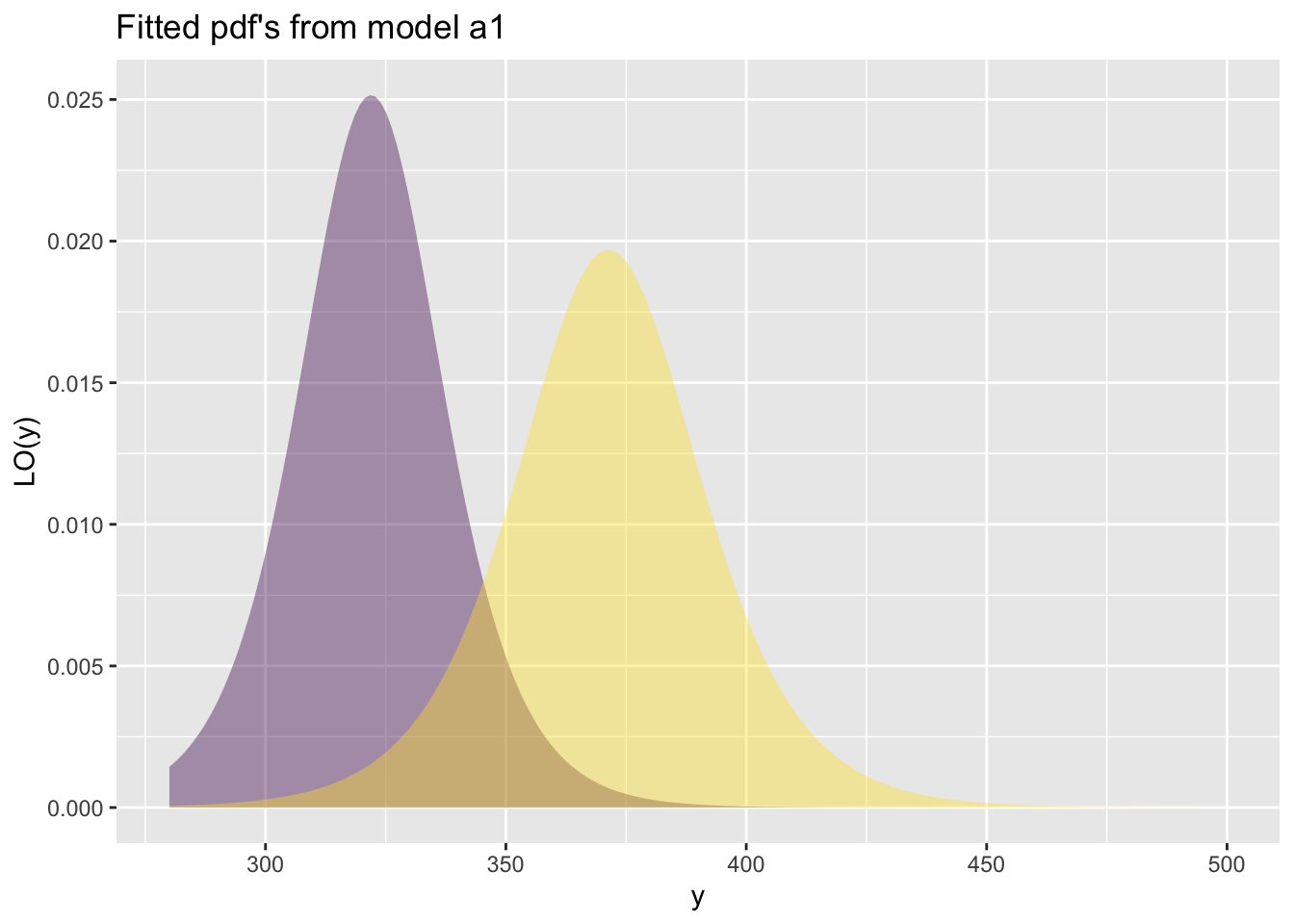

fitted_pdf(a1, obs=c(500,610),from=280, to=500)

Figure 35: Probability functions for a continuous responses.

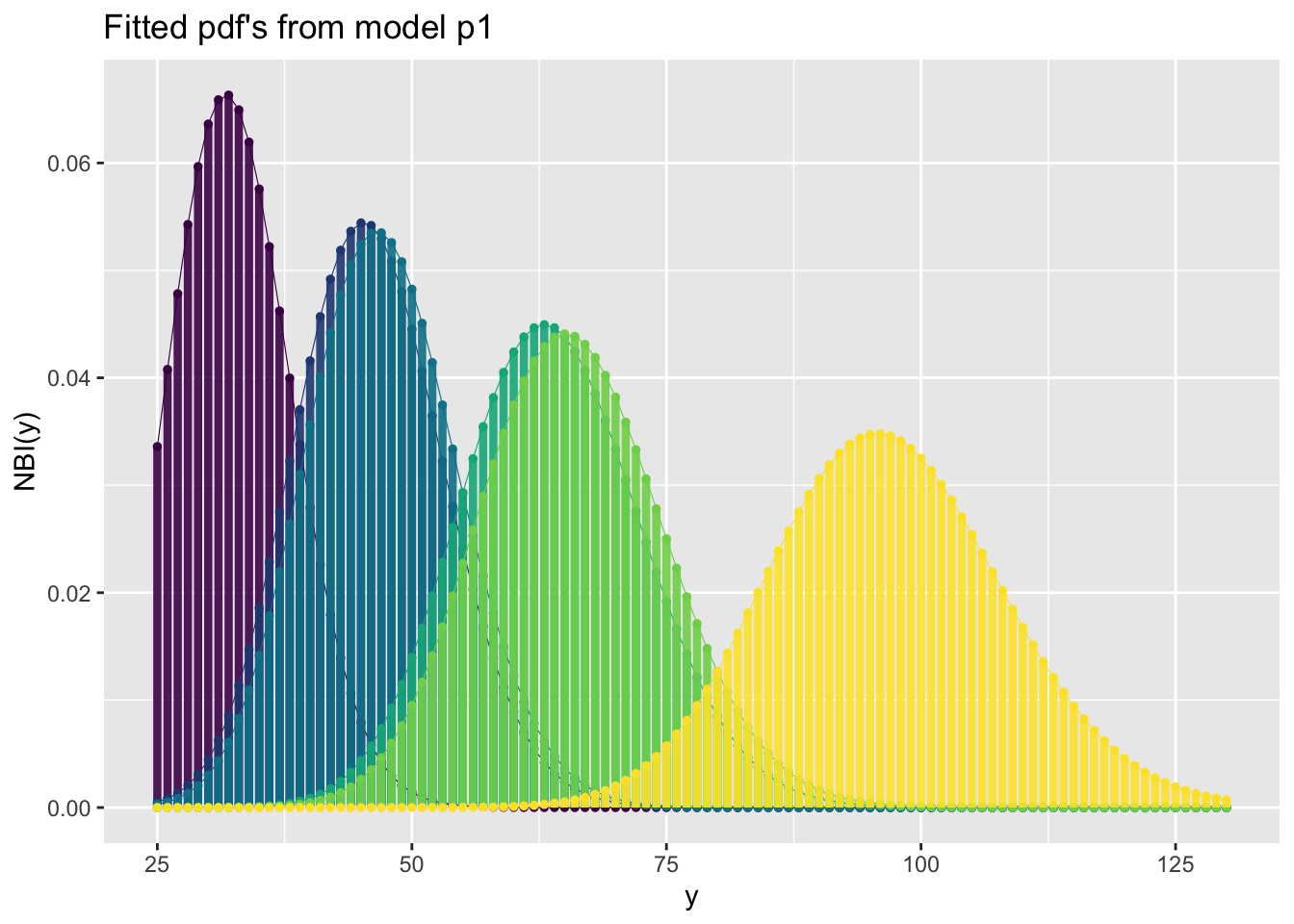

For a infinite count response:

p1 <- gamlss2(y~pb(x)+qrt, data=aids, family=NBI)

GAMLSS-RS iteration  1: Global Deviance = 366.4314 eps = 0.366767
GAMLSS-RS iteration  2: Global Deviance = 359.7701 eps = 0.018178
GAMLSS-RS iteration  3: Global Deviance = 359.7537 eps = 0.000045
GAMLSS-RS iteration  4: Global Deviance = 359.7536 eps = 0.000000

fitted_pdf(p1, obs=10:15, from=25, to=130, alpha=.9)

Figure 36: Probability functions for a count responses.

This is a binomial example:

h <- gamlss(y~ward+loglos+year, ~year+ward, family=BB, data=aep)

GAMLSS-RS iteration 1: Global Deviance = 4490.361
GAMLSS-RS iteration 2: Global Deviance = 4483.13
GAMLSS-RS iteration 3: Global Deviance = 4483.021
GAMLSS-RS iteration 4: Global Deviance = 4483.02
GAMLSS-RS iteration 5: Global Deviance = 4483.02

fitted_pdf(h, obs=c(10:15), alpha=.9)

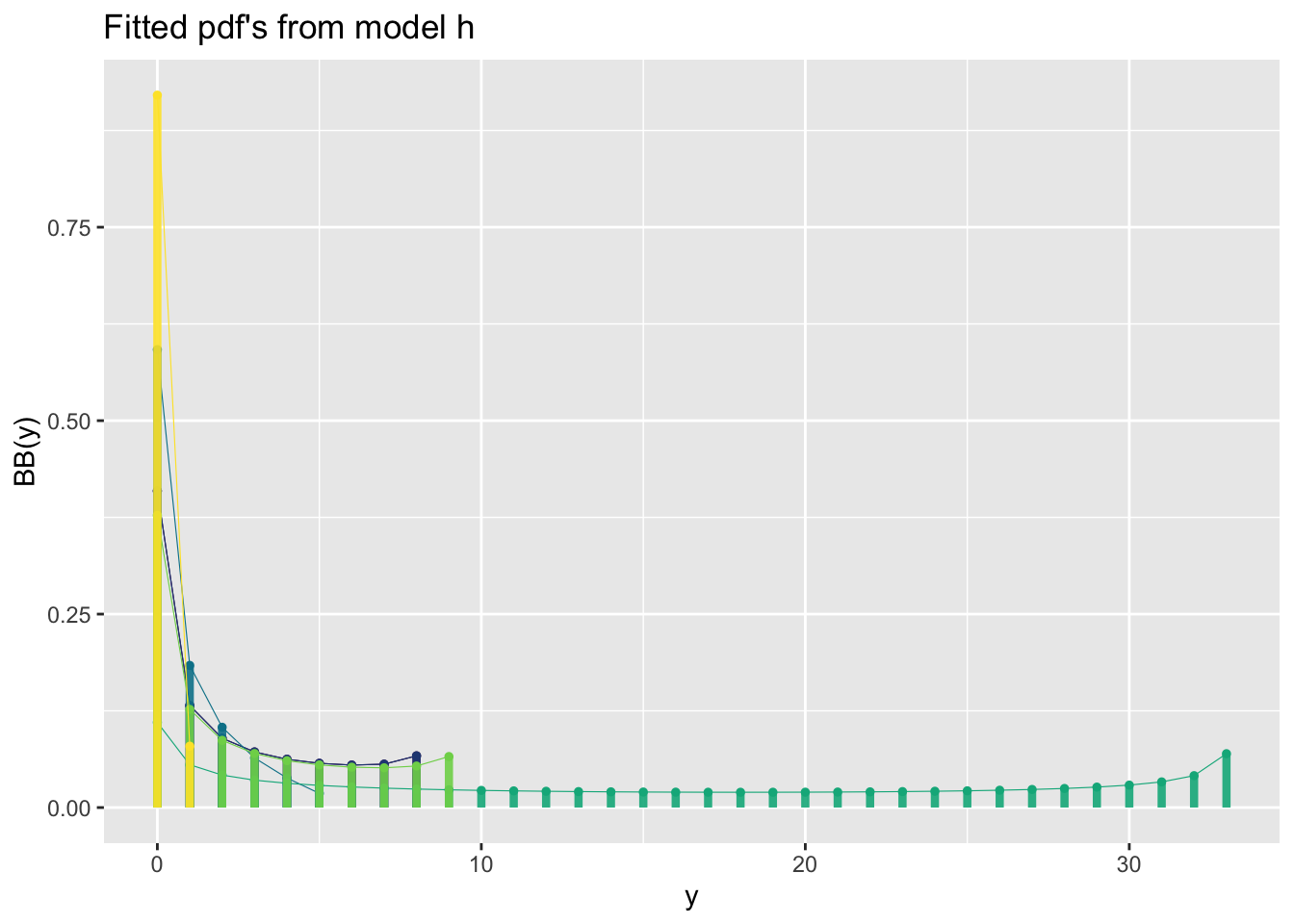

Figure 37: Probability functions for a binomial responses.

Warning

binomial type distributions are not working for gamlss2 objects

`fitted_cdf()`

The function fitted_cdf() plots individual pdf’s from a fitted model. It needs the argument obs indicating which observation number to plot. %

First a continuous distribution:

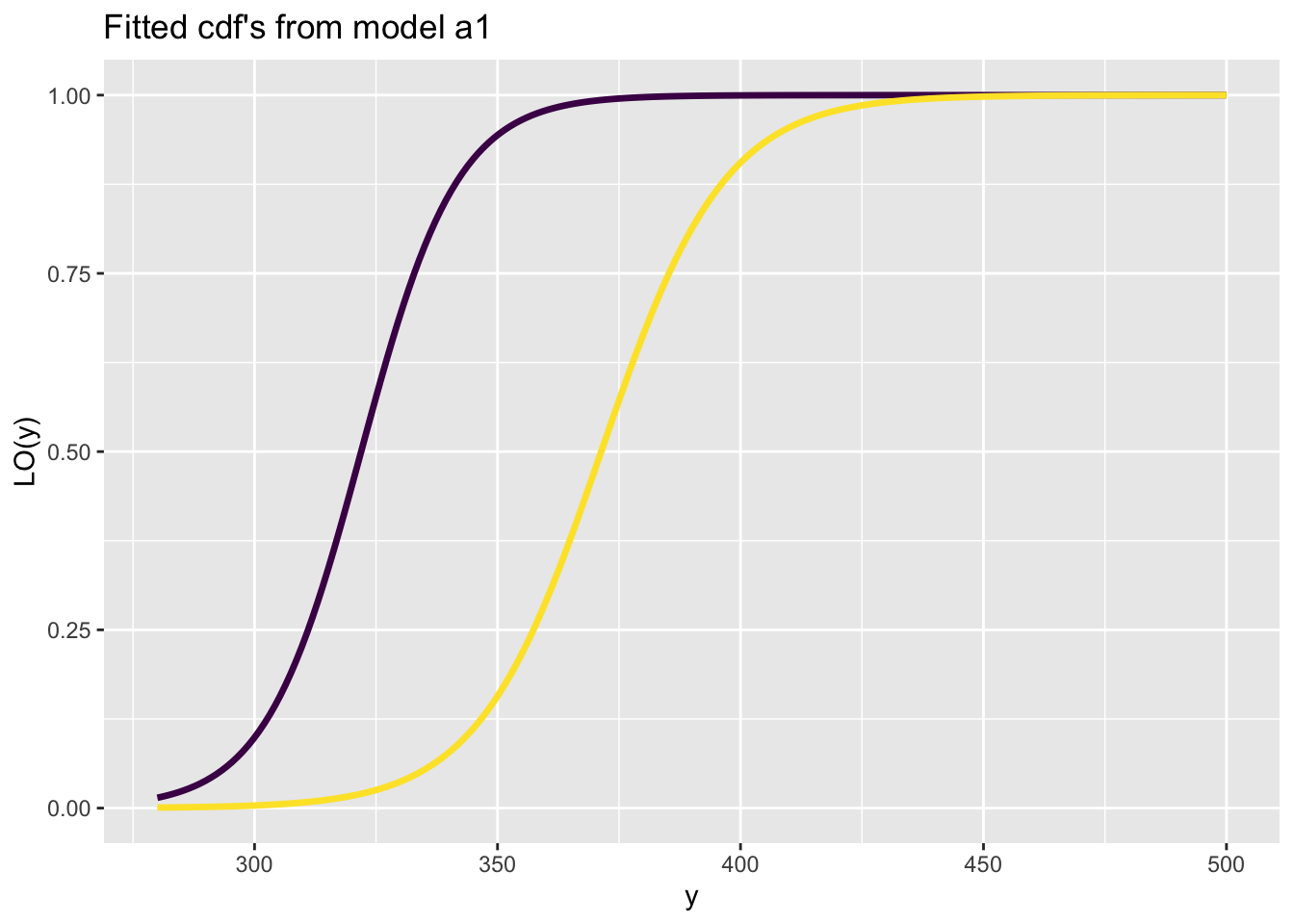

fitted_cdf(a1, obs=c(500,610),from=280, to=500)

Figure 38: Probability functions for a continuous responses.

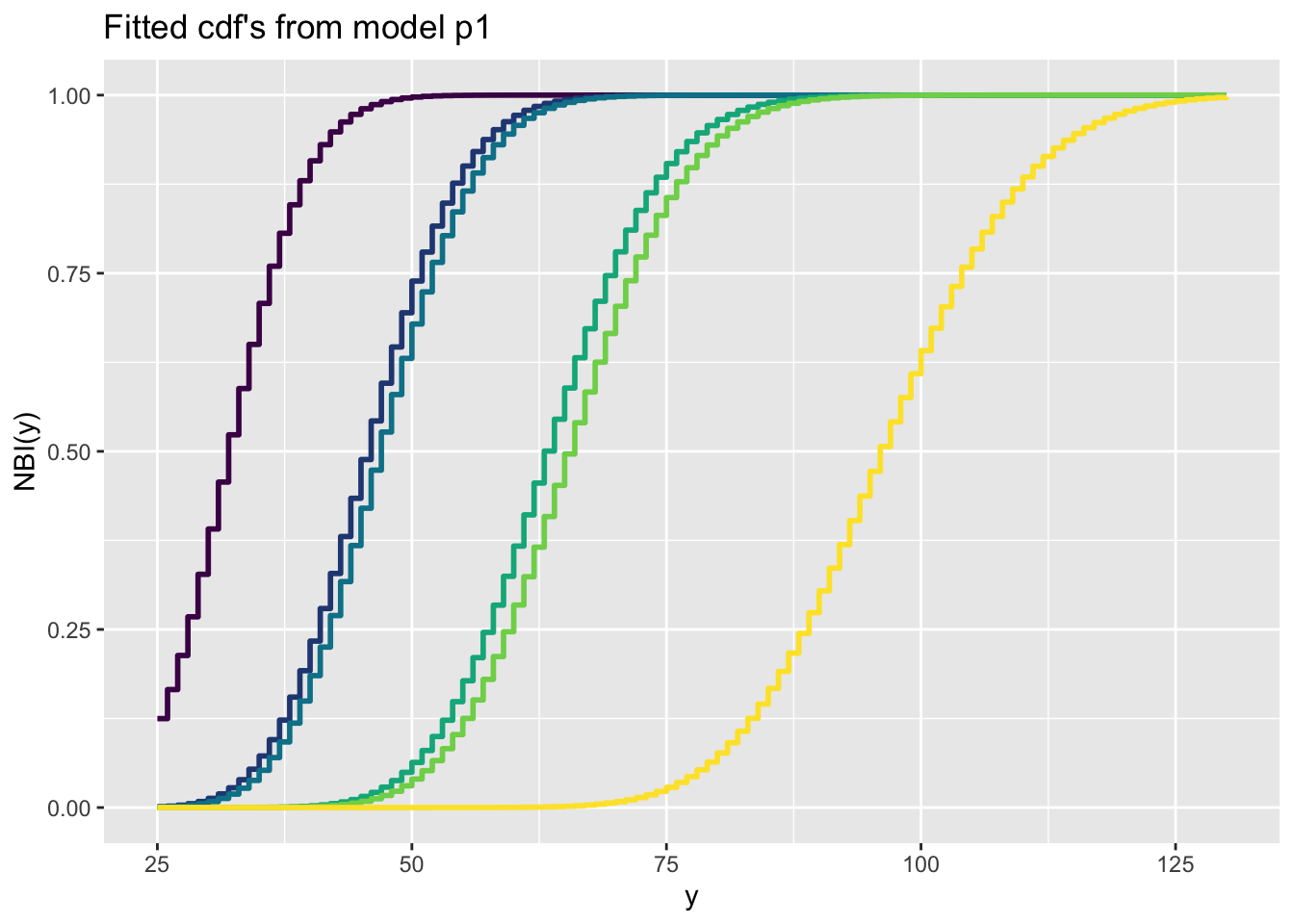

Here is a count response data example

fitted_cdf(p1, obs=10:15, from=25, to=130, alpha=.9)

Figure 39: Probability functions for a count responses.

Here is a binomial response data example

h<-gamlss(y~ward+loglos+year, sigma.formula=~year+ward, family=BB, data=aep)

GAMLSS-RS iteration 1: Global Deviance = 4490.361
GAMLSS-RS iteration 2: Global Deviance = 4483.13
GAMLSS-RS iteration 3: Global Deviance = 4483.021
GAMLSS-RS iteration 4: Global Deviance = 4483.02
GAMLSS-RS iteration 5: Global Deviance = 4483.02

fitted_cdf(h, obs=c(10:15),  alpha=.9)

Figure 40: Probability functions for a binomial responses.

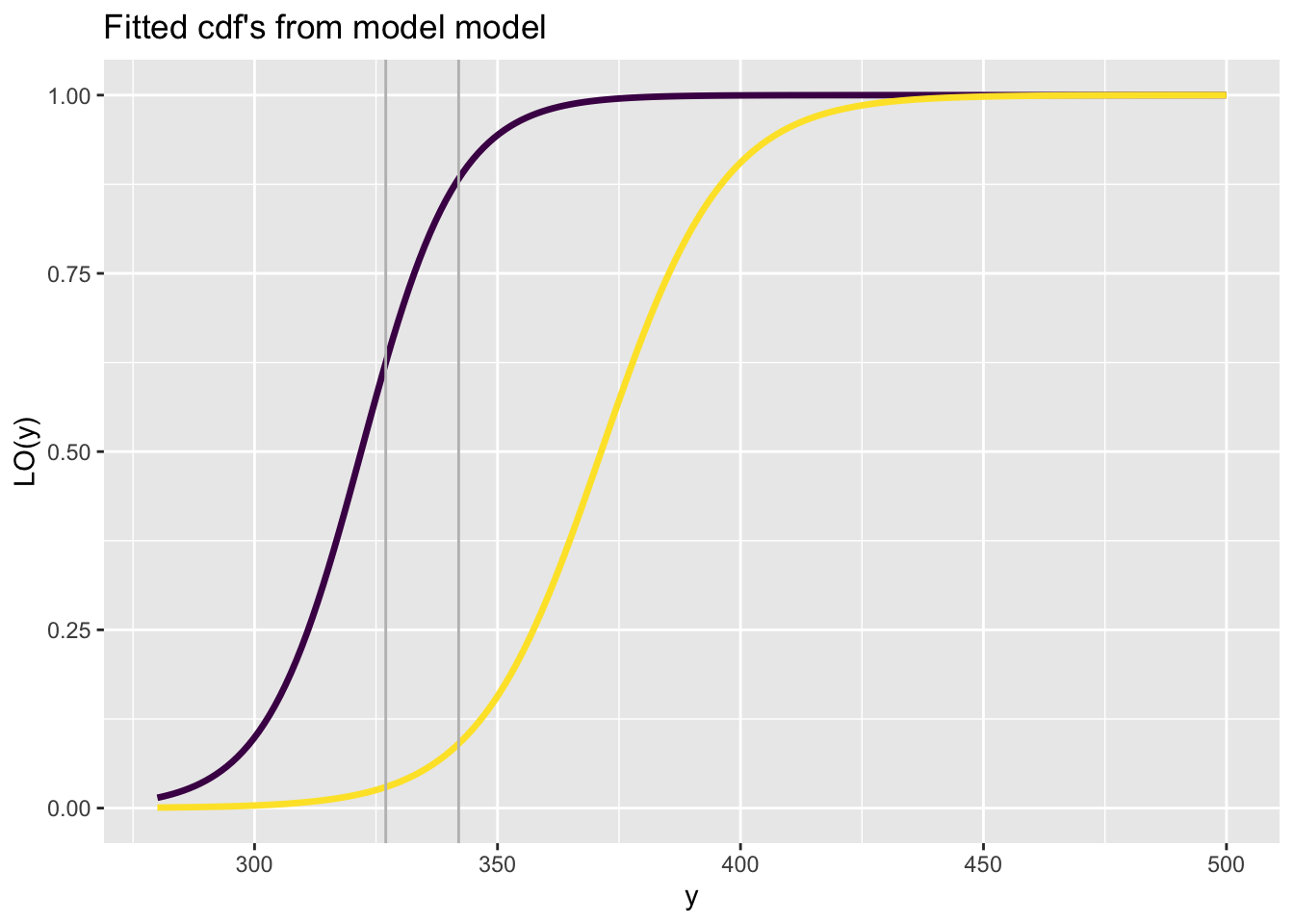

`fitted_cdf_data()`

The function fitted_cdf_data() plots individual pdf’s from a fitted model but also add the data points. It needs the argument obs indicating which obs

fitted_cdf_data(a1, obs=c(500,610),from=280, to=500)

Figure 41: Probability functions for a binomial responses.

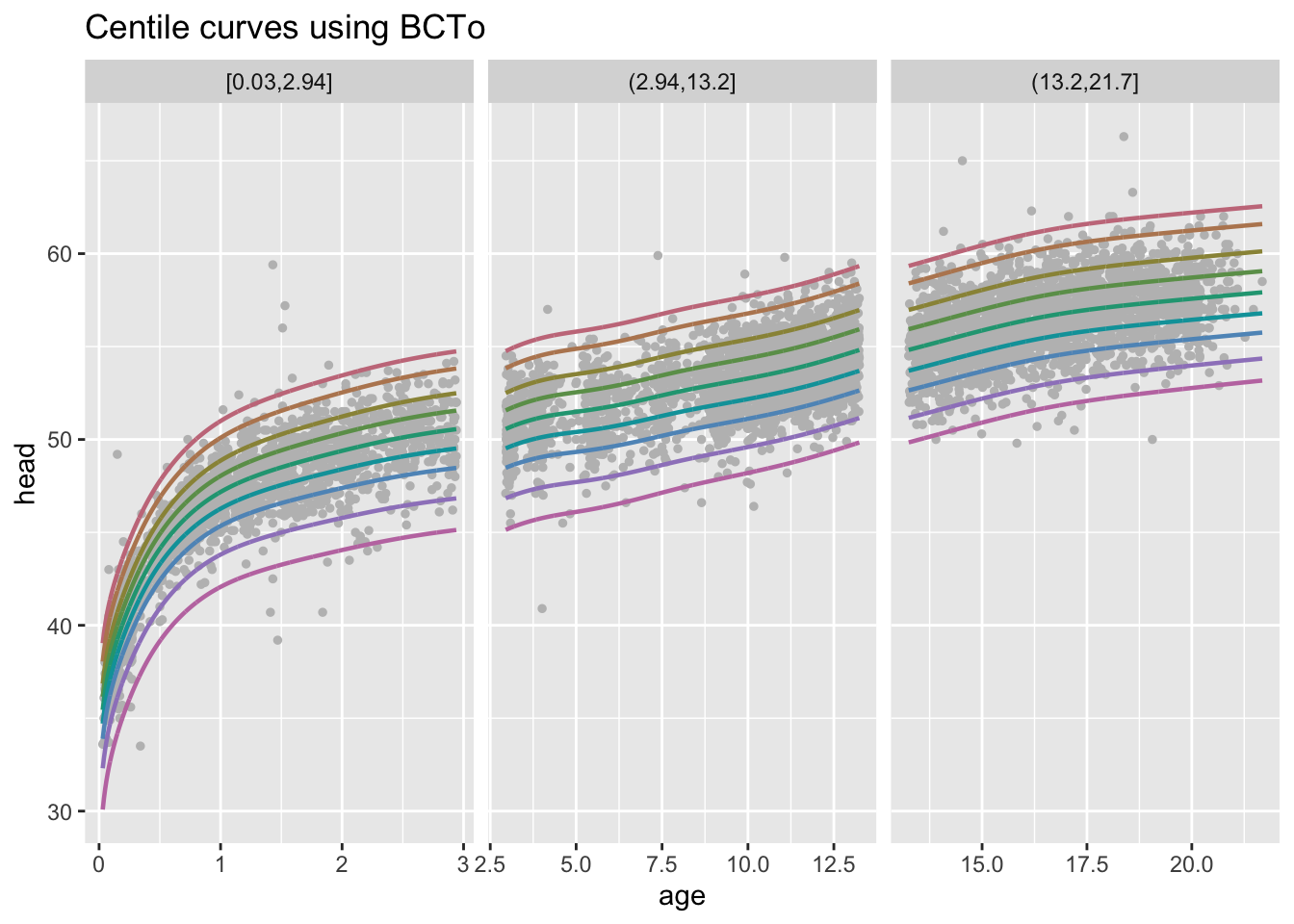

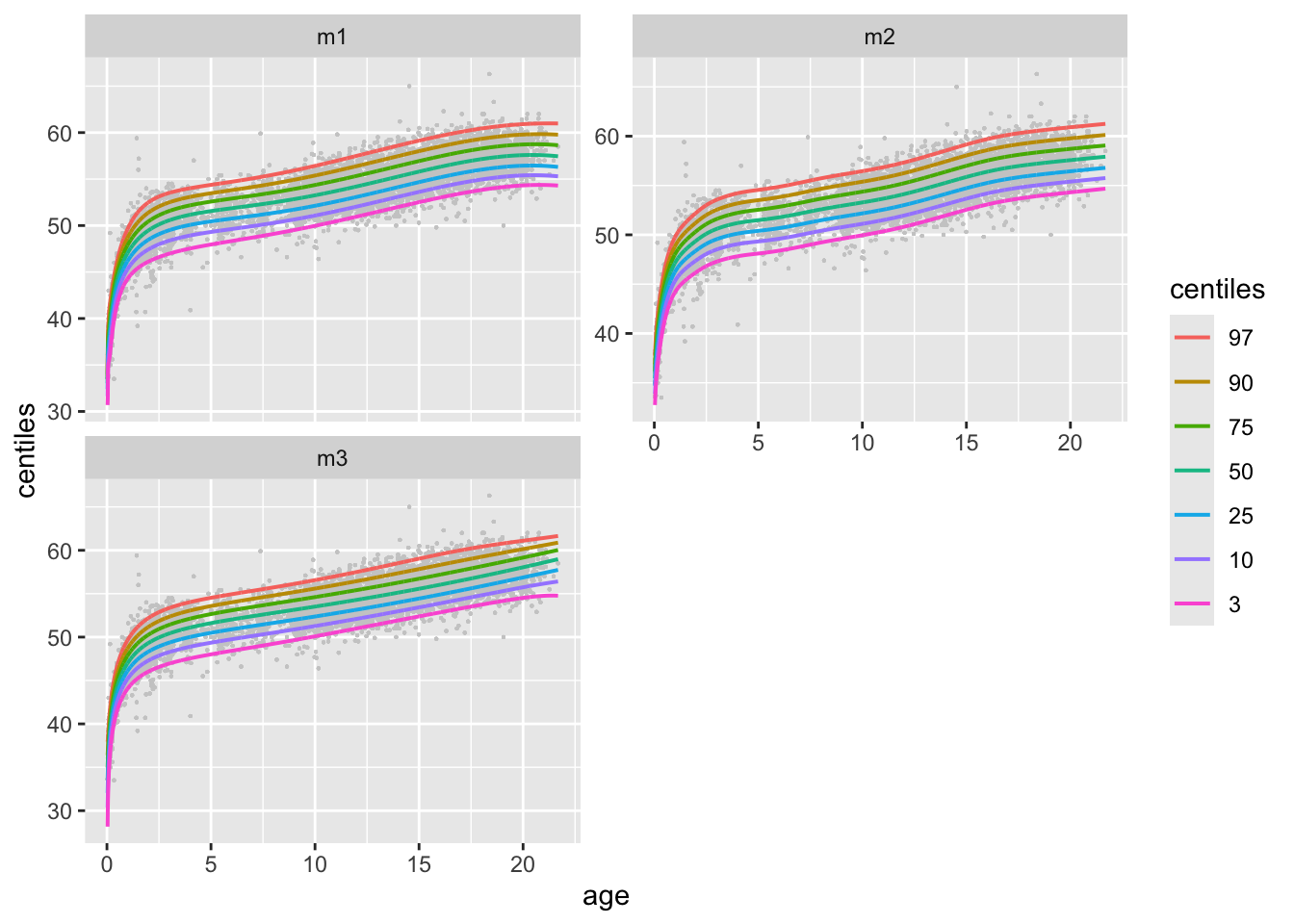

`fitted_centiles()`

See Section Section 11.1.

Model

`model_GAIC()`

The functions model_GAIC() and model_GAIC_lollipop() are identical but the appearance is different.

gg<-model_GAIC(g0,g1,g2,g3,g4, g5,g6,g7,g8,g9)
gg

`model_GAIC_lollipop()`

gg1<-model_GAIC_lollipop(g0,g1,g2,g3,g4, g5,g6,g7,g8,g9)
gg1

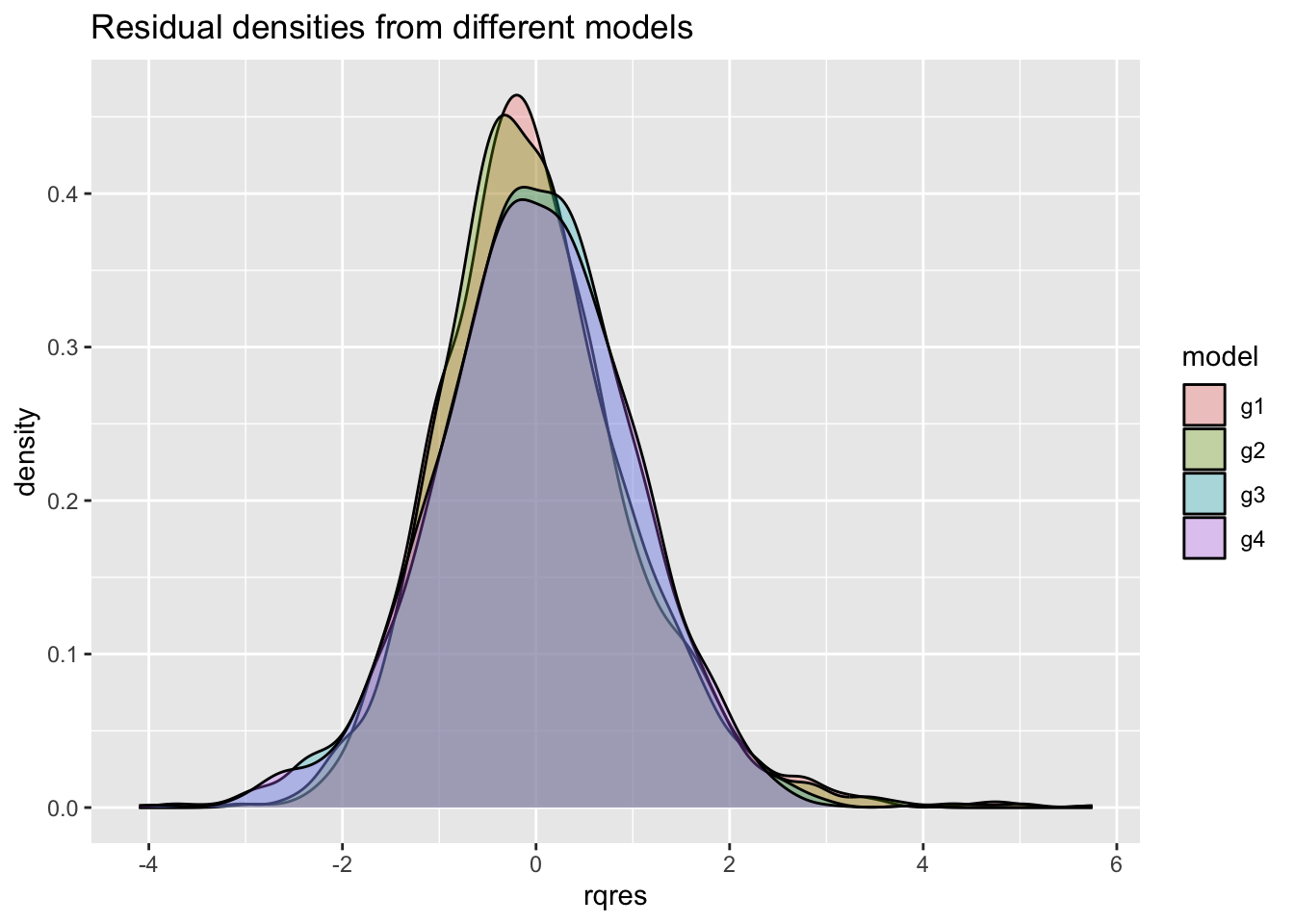

`model_density()`

To plot the residuals densities of all m1, m2, m3, and m4 models use:

gg <-  model_density(g1, g2, g3, g4)
gg

A density plot of the residuals from different models.

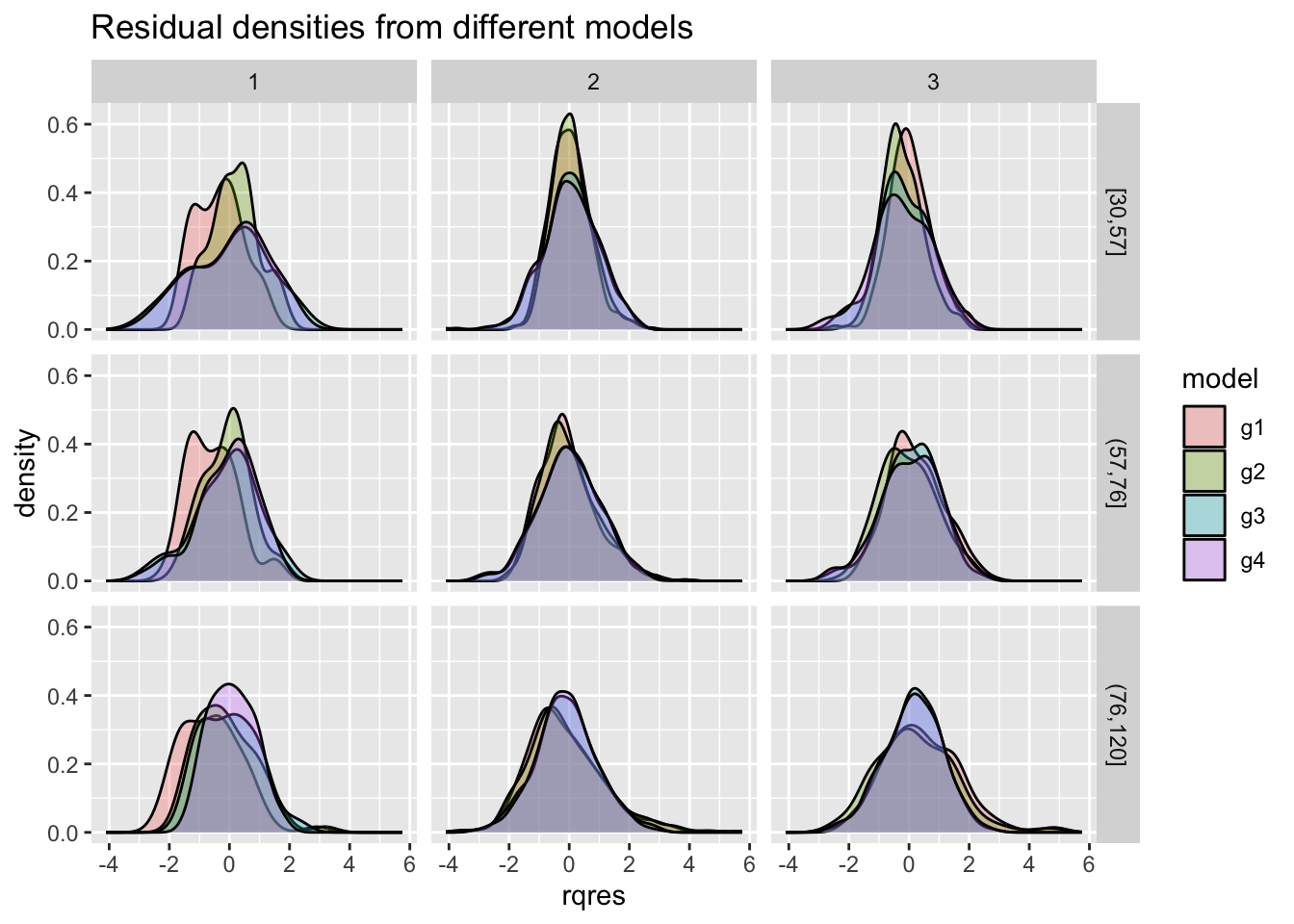

For multiple plots use:

gg+facet_grid(cut_number(rent$Fl, 3)~rent$loc)

`model_qqplot()`

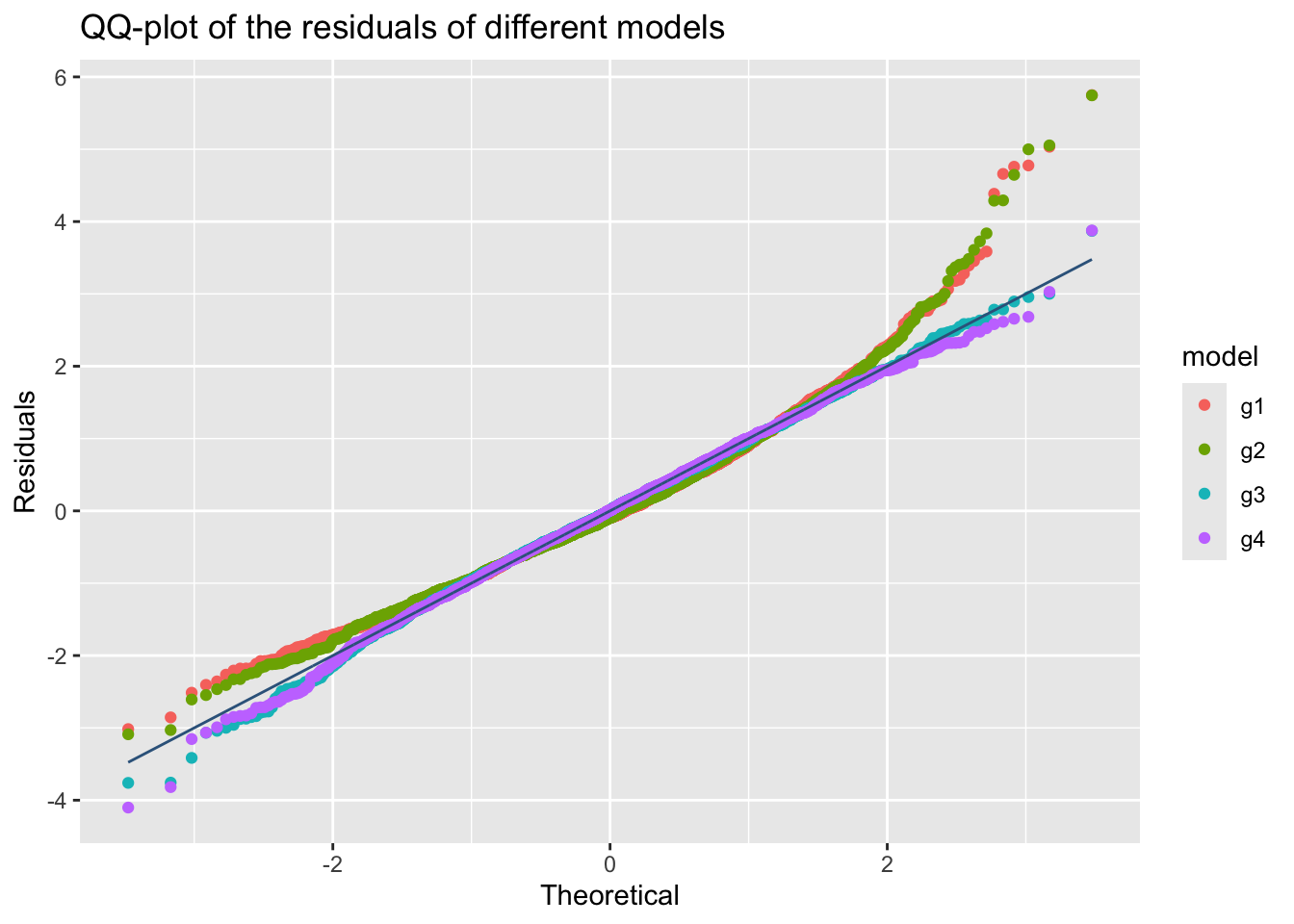

The function model_qqplot() can be use to get a QQ-plots for more that one fitted model residuals.

gg <- model_qqplot(g1, g2, g3, g4)
gg

Figure 44: QQ-plot of the residuals of models `m1`, `m2`, `m3` and `m4`.

Warning

something is wrong here g2 and g3 are not appearing

For multiple plots use;

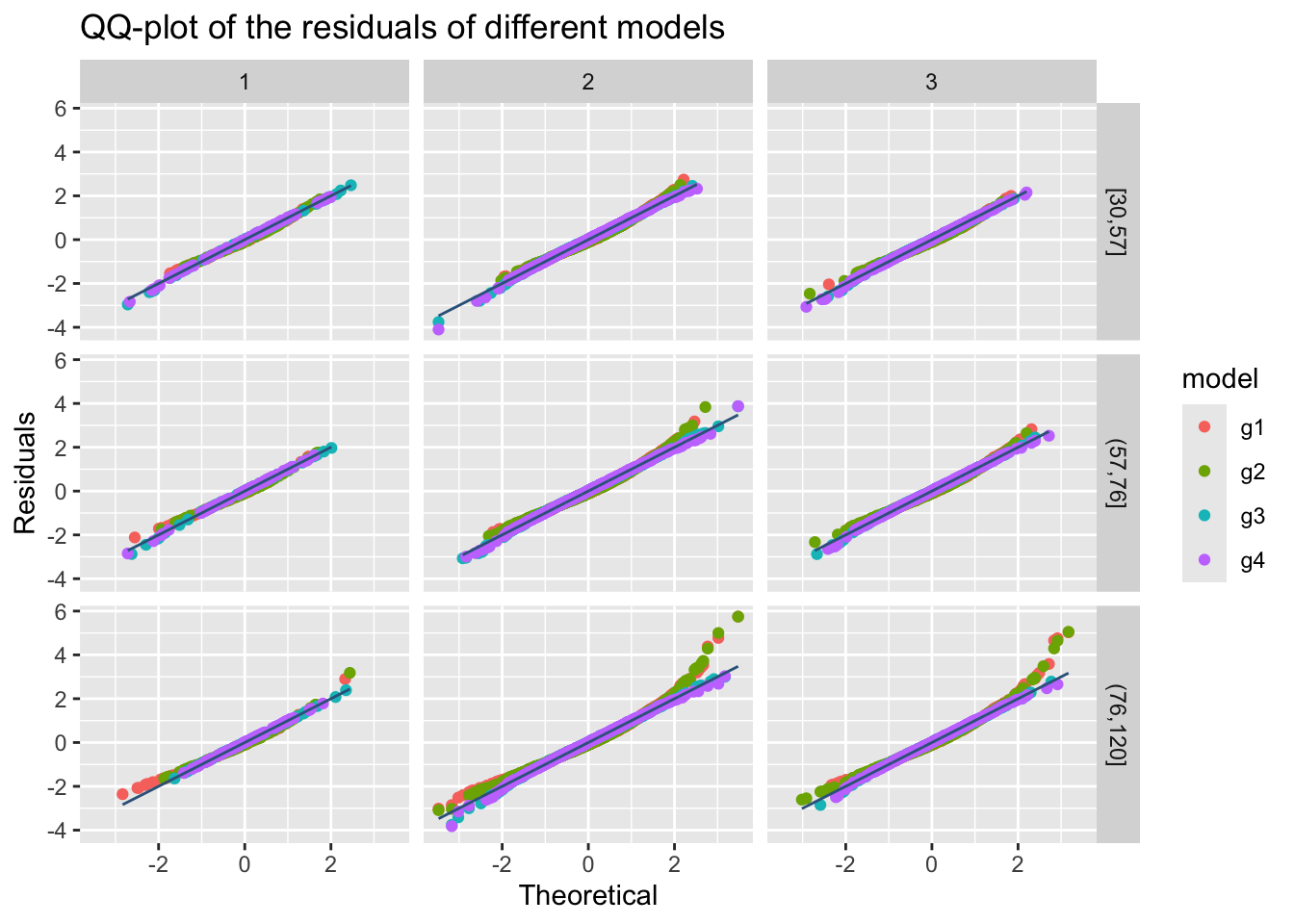

gg+facet_grid(cut_number(rent$Fl, 3)~rent$loc)

Figure 45: Multiple QQ-plots of the residuals of models `m1`, `m2`, `m3` and `m4`.

The resulting plot is shown on the Figure 45.

`model_wp()`

The function model_wp() can be use to get a worm-plots for multiple fitted models residuals.

gg <- model_wp(g1, g2, g3, g4)
gg

Figure 46: Worm-plot of the residuals of models `m1`, `m2`, `m3` and `m4`.

`model_wp_wrap()`

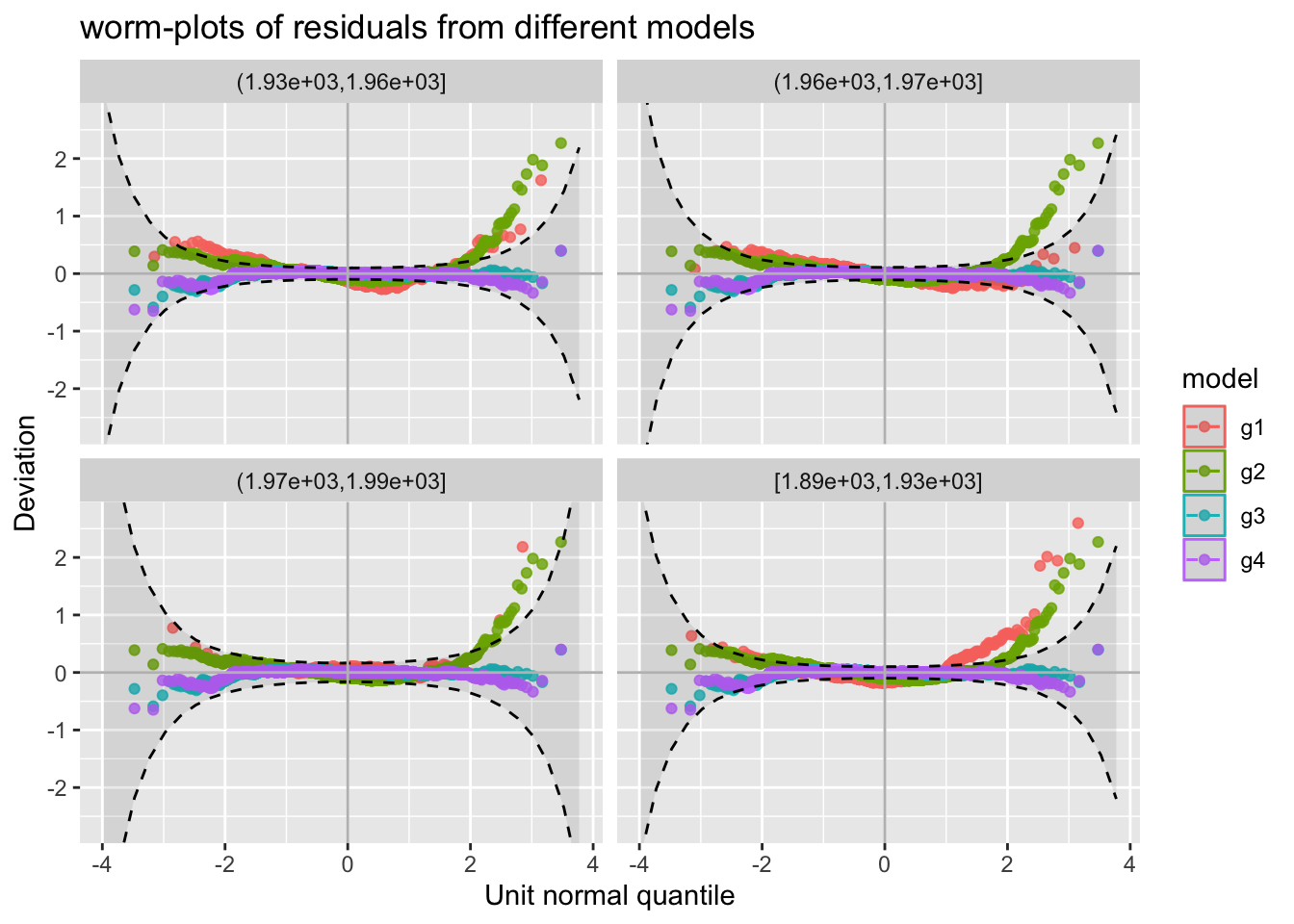

For model worm plots at differenbt values of the explnatory variables use;

gg1 <- model_wp_wrap(g1, g2, g3, g4, xvar=rent$A)
gg1

Figure 47: Multiple worm-plot of the residuals of models `m1`, `m2`, `m3` and `m4`.

The resulting plot is shown on the right side of Figure Figure 47.

`model_mom_bucket()

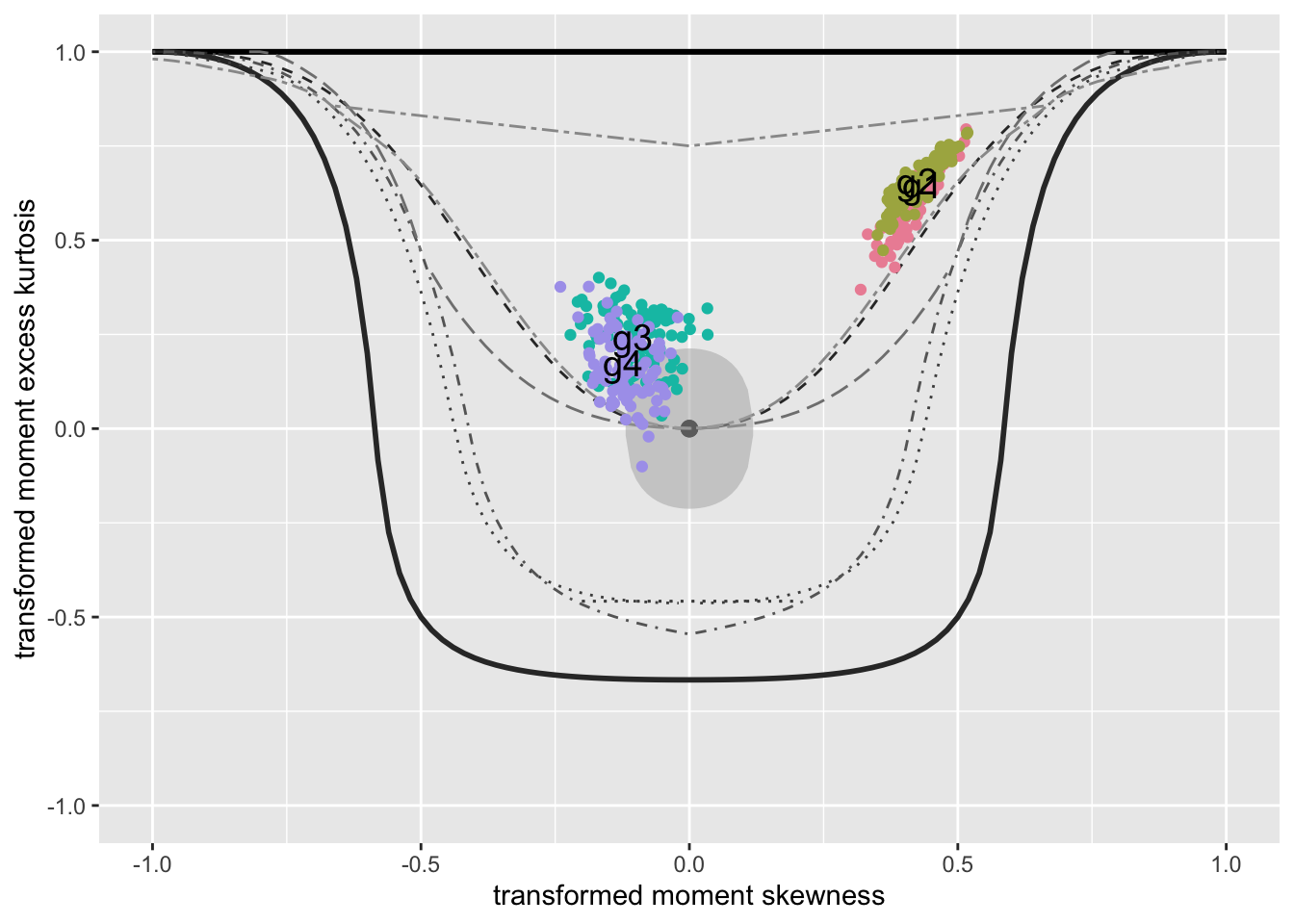

The function model_mom_bucket() (also known as mement_bucket()) can be use to get the moment bucket plot for one or more fitted model residuals. Note that moment_bucket() is synonymous to model_mom_bucket().

gg <- moment_bucket(g1, g2, g3, g4)
gg

Figure 48: Single moment bucket plots of the residuals of models `m1`, `m2`, `m3` and `m4`.

`moment_bucket_wrap()`

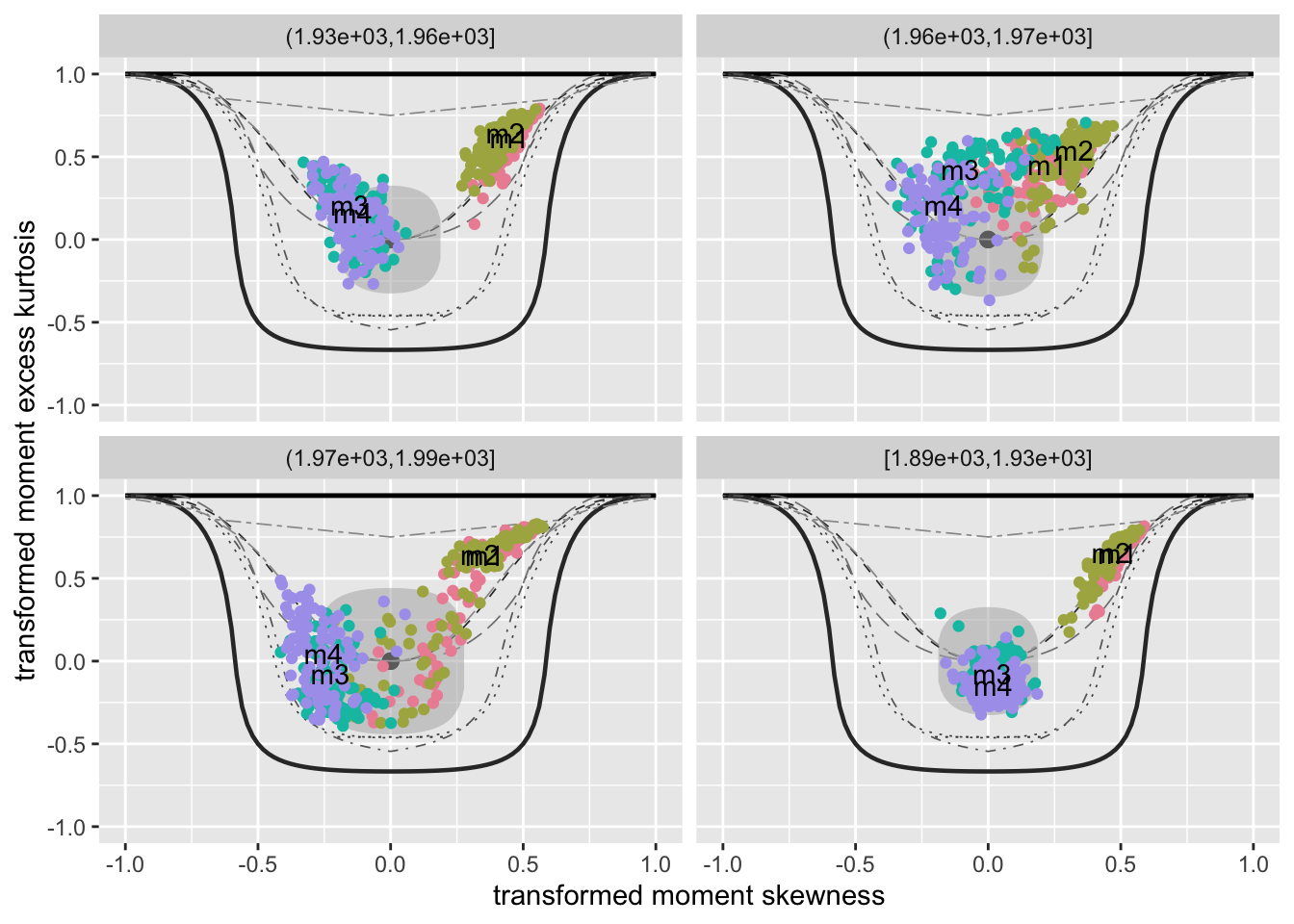

For multiple plots use

gg1 <- moment_bucket_wrap(m1, m2, m3, m4, xvar=rent$A)
gg1

Figure 49: Multiple moment bucket plots of the residuals of models `g1`, `g2`, `g3` and `g4`.

Warning

Not working with gamlls2 objects

The resulting plot is shown on the right side of Figure Figure 49.

`moment_gray_both()` and `moment_colour_both()`

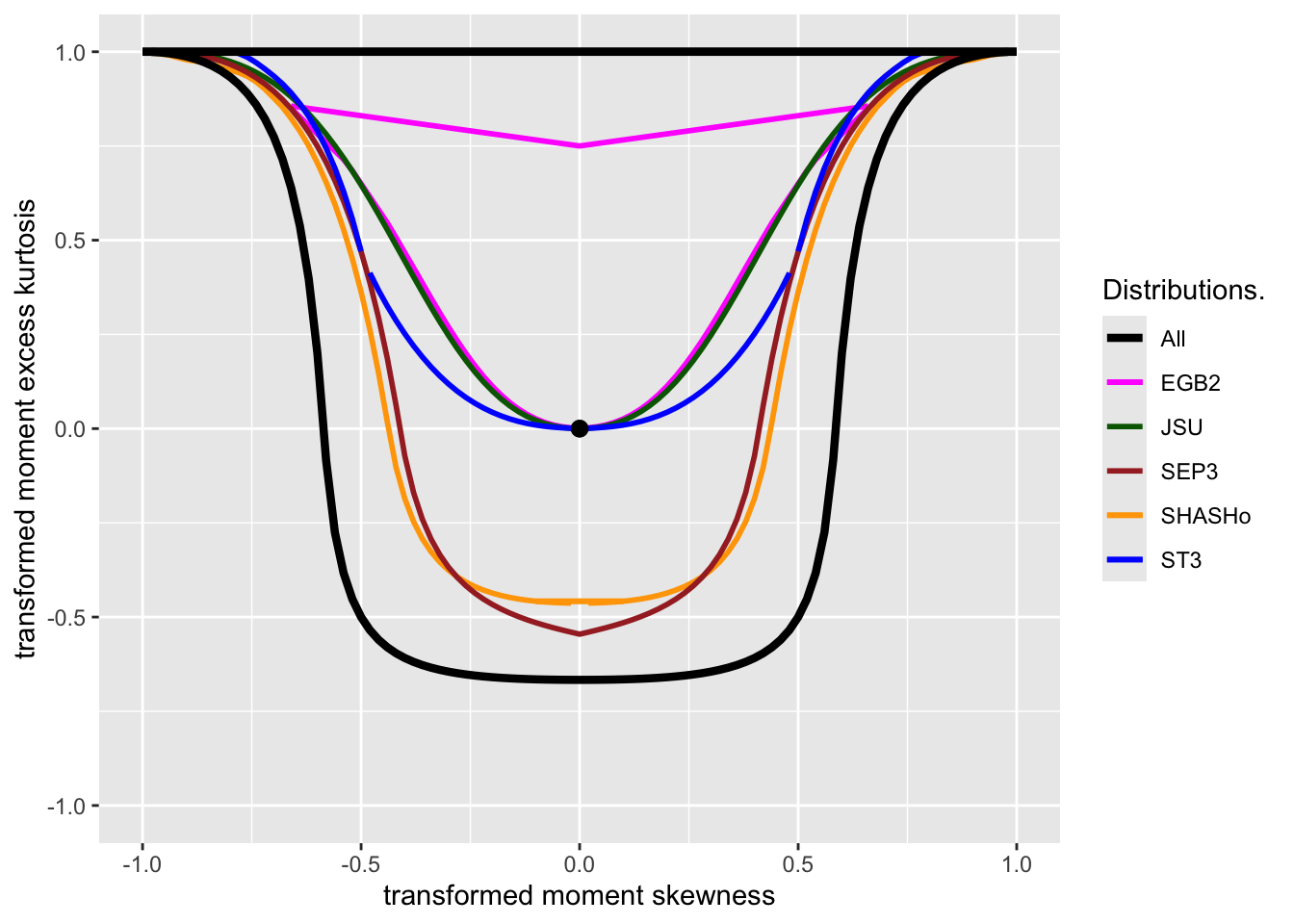

Note that the background of the bucket plots is generated by the functions

moment_gray_both()
moment_colour_both()

Figure 50: The background of the moment bucket plot.

Figure 51: The background of the moment bucket plot.

`model_devianceIncr_diff()`

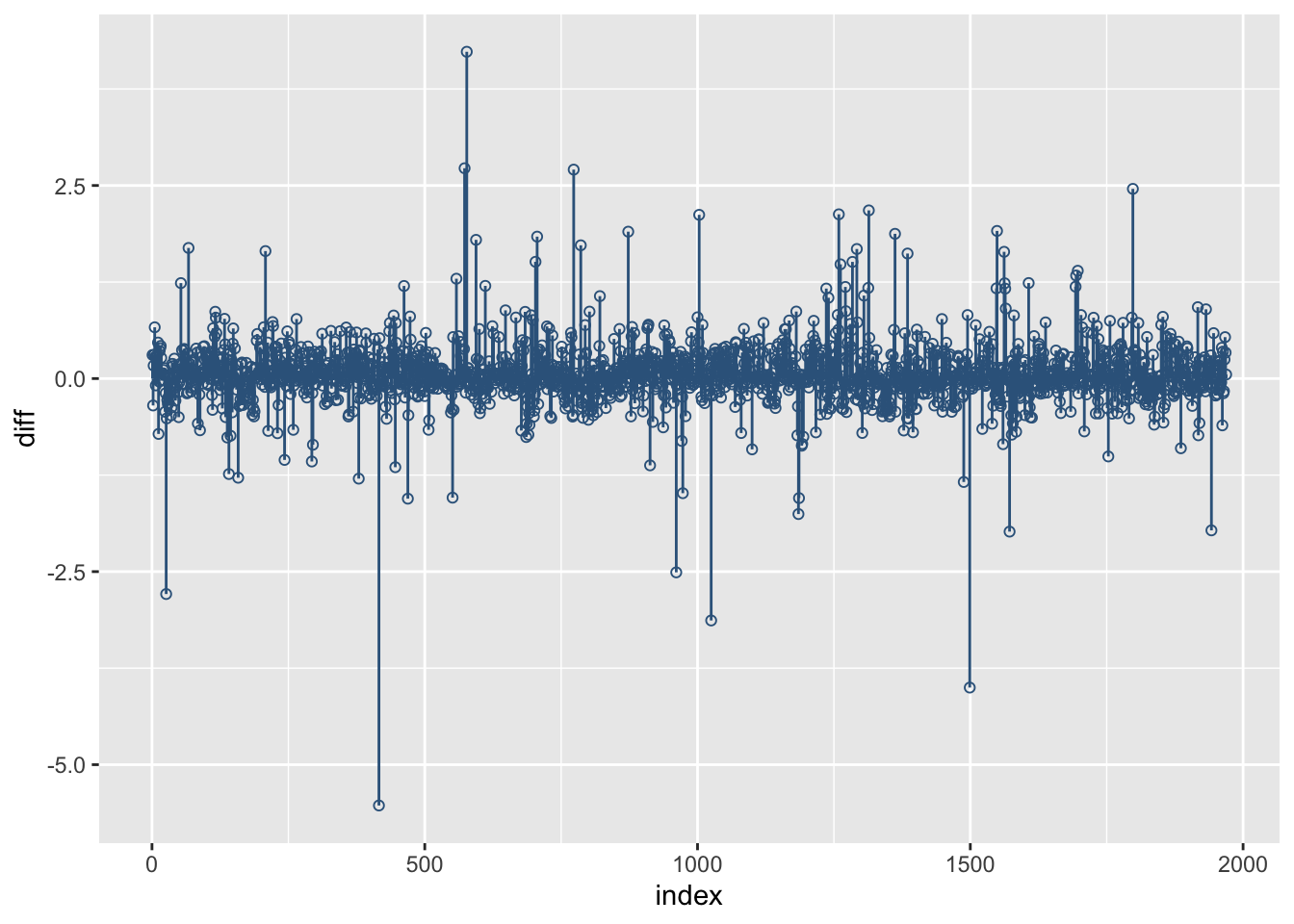

The function plots the difference in deviance increment between two fitted gamlss models.

model_devianceIncr_diff(m3,m4)

Figure 52: Deviance difference between models `m3` and `m4`.

Warning

Not working with gamlls2 objects

`model_pca()`

This function it uses Principal Component Analysis (PCA) for the residual of multiple models and plots a bi-plot the first and second components.

gg <- model_pca(g1,g2,g3,g4)
gg

Figure 53: A PCA of different models residuals`.

`model_centiles()`

See Section Section 11.3.

Vectors

`y_hist()`

Here we generate a vector from a BCCG distribution and plot its histogram and its density function .

y <- rBCCG(1000, mu=3, sigma=.1, nu=-1)
gg <- y_hist(y)
gg

Figure 54: Plotting a histogram of single variable and its density function.

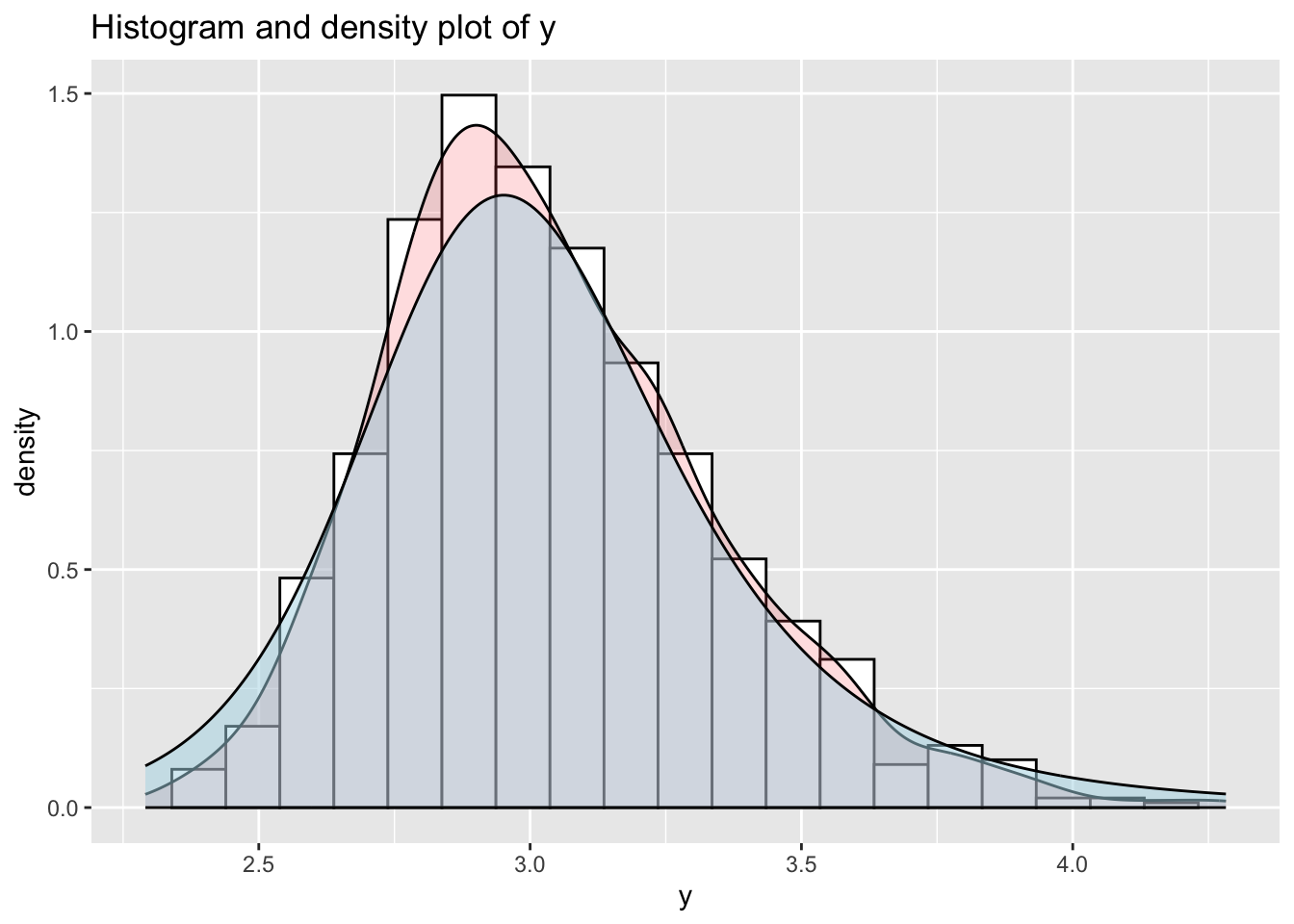

Here we add the true pdf of the generated variable.

gg + stat_function(fun = dBCT, args=list(mu=3, sigma=.1,  nu=-1, tau=5),
      geom = "area", alpha=0.5, fill="lightblue", color="black", n=301)

Figure 55: Plotting a histogram of single variable and the `true` distribution supperimpose

`y_dots()`

The dots function is appropriate for long tail distributions be cause emphasise the the long left ot right tail of $y$.

y <- rBCT(1000, mu=3, sigma=.1, nu=-1, tau=4)
gg <- y_dots(y)
gg

Figure 56: Plotting the $y$ in dots to emphisise the long right tail.

`y_ecdf()`

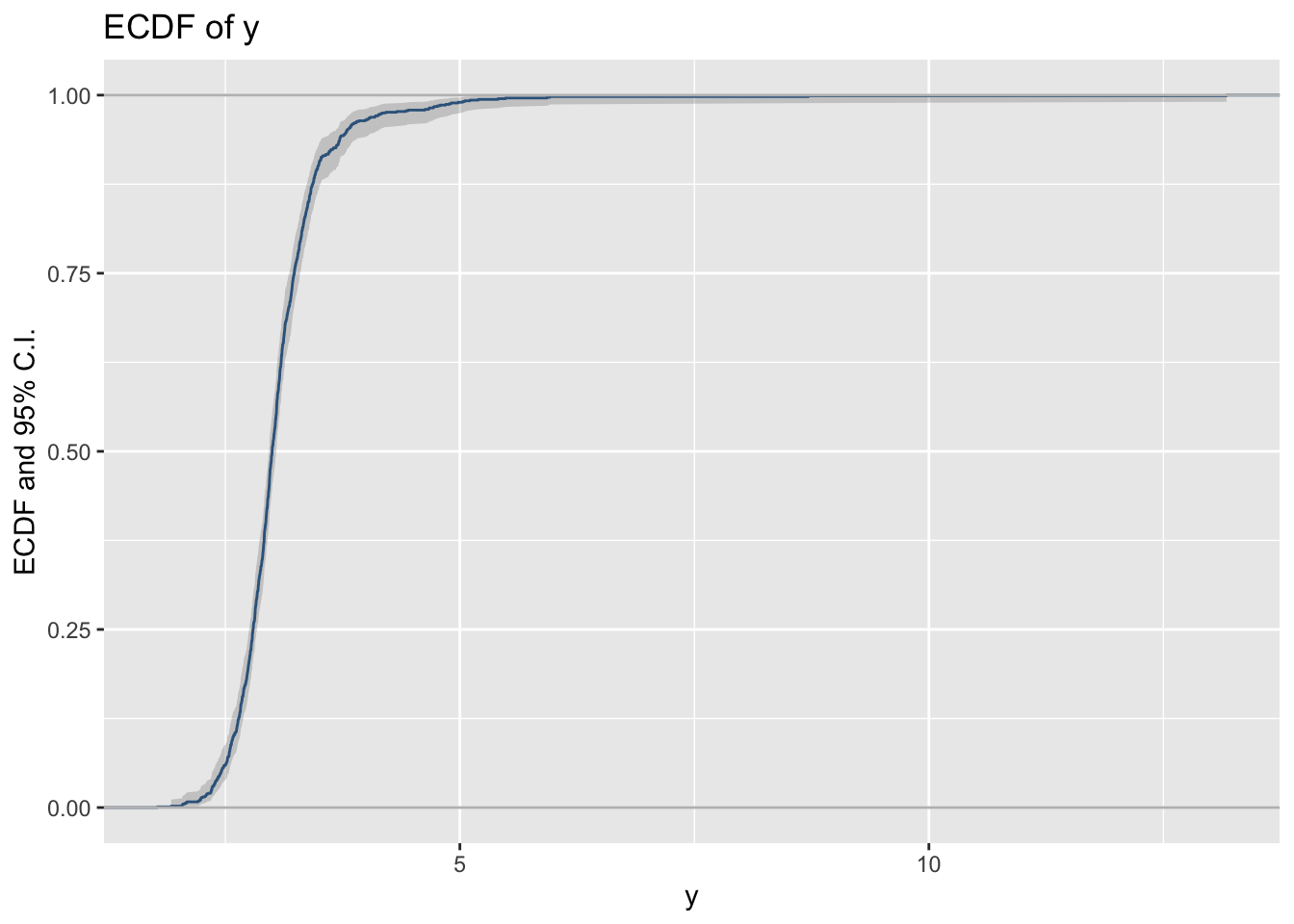

The empirical cdf of a variables can be plotted using the function y_ecdf()

y <- rBCT(1000, mu=3, sigma=.1, nu=-1, tau=4)
gg <- y_ecdf(y)
gg

Figure 57: Plotting the empirical cdf of a variable.

Here is how you can add the theoretical cdf.

gg+ stat_function(fun =
          pBCT, args=list(mu=3, sigma=.1,  nu=-1, tau=5),
          color="red", n=301)

Figure 58: Plotting the empirical cdf of a variable plues its theoretical cdf.

`y_acf()`

The functions y_acf() take a single time series vector and plot its auto-correlation function.

y_acf(diff(EuStockMarkets[,1]))

Figure 59: Plotting ACF of the first difference of FTSE.

`y_pacf()`

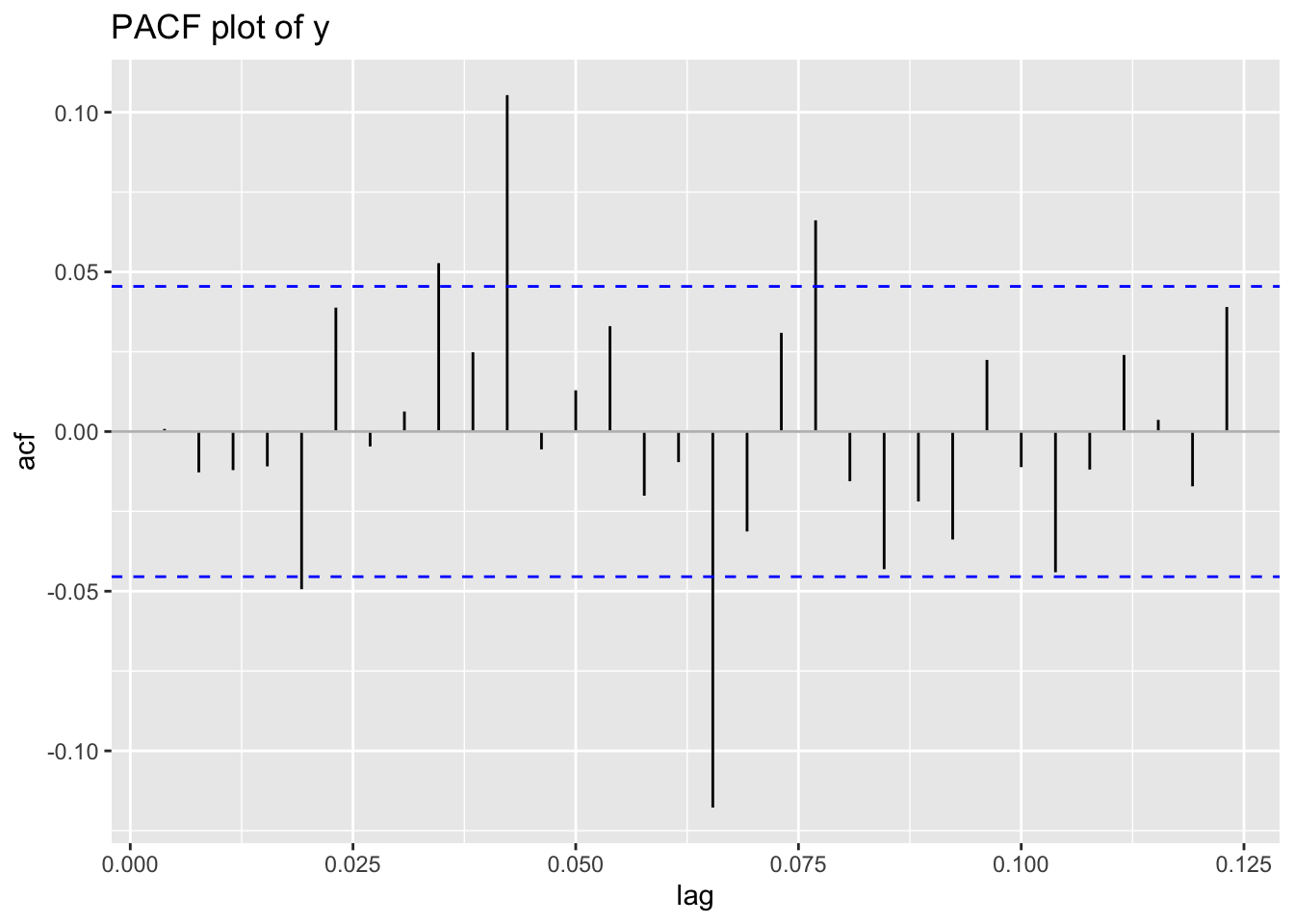

The functions y_pacf() take a single time series vector and plot its partial auto-correlation function.

y_pacf(diff(EuStockMarkets[,1]))

Figure 60: Plotting PACF of the first difference of FTSE.

`y_symmetry()`

Here we plot the symmetry plot of the variable $y$.

gg<-y_symmetry(rent$R)
gg

Figure 61: A symmetry plot of the rent data.

Partial effects

Those functions should be called fitted_pe\_\... but we have dropped the fitted part to simplify the notation.

`pe_terms()`

The function plots individual terms from a fitted gamlss model. It is equivalent to term.plot(). Note that the function will produce up to 9 term plots before ask for the next page.

gamlss.ggplots:::pe_terms(m4, partial=T)

Figure 62: Plotting terms from a fitted GAMLSS model.

The function pe_terms() uses the function lpred() to obtain the partial fitted terms. The function lpred() is using the parameter model.frame which has already evaluate the factors as a set of dummy variables. The partial terms are then evaluated by fixing the other terms on their means and after subtraction for the mean of the response.

Warning

Not working with gamlls2 objects

`pe_param()`

The function pe_param() plots the partial effect of one or two specified term(s) given all other terms in the model remain fixed at predetermined values. Depending on length of the argument term the function pe_param() uses the function pe_1_param() or pe_2_param() to plot the partial effects. Here we plot it against a continuous variable A:

pe_param(g4, "A")

Figure 63: Plotting partial terms from `A`.

Here we plot it against a categorical variable loc:

pe_param(g4, "loc")

Figure 64: Plotting partial terms from `loc`.

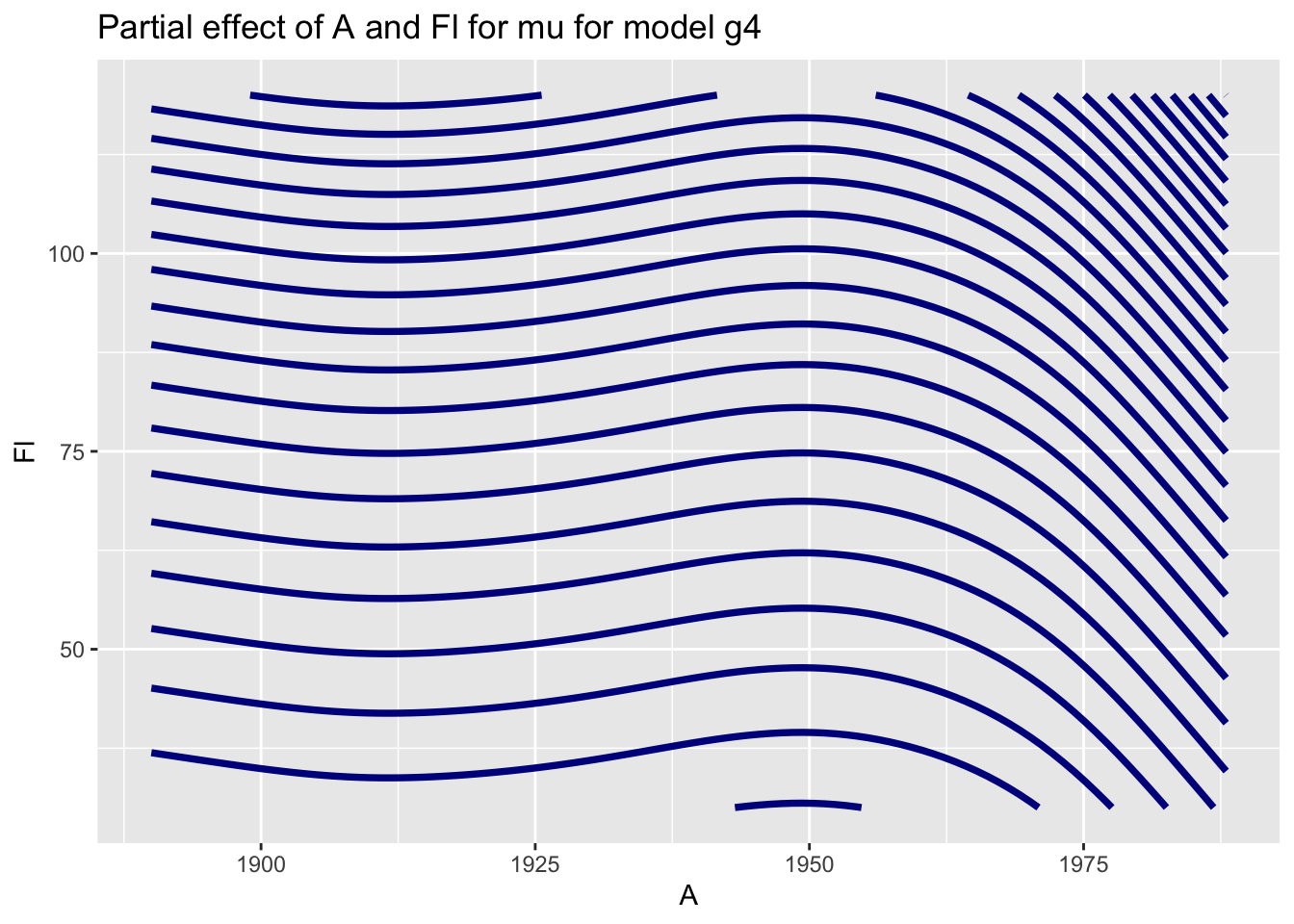

Here we use two continuous variables A and Fl:

gamlss.ggplots:::pe_param(g4, c("A", "Fl"))

Figure 65: Plotting partial terms from `A` and `Fl`.

Here we use two continuous variables A and Fl but with the argument filled = TRUE:

gamlss.ggplots:::pe_param(g4, c("A", "Fl"), filled = TRUE)

Figure 66: Plotting partial terms from `A` and `Fl`.

Here we use one continuous A and one categorical variables loc:

gamlss.ggplots:::pe_param(g4, c("A", "loc"))

Figure 67: Plotting partial terms from `loc` and `A`.

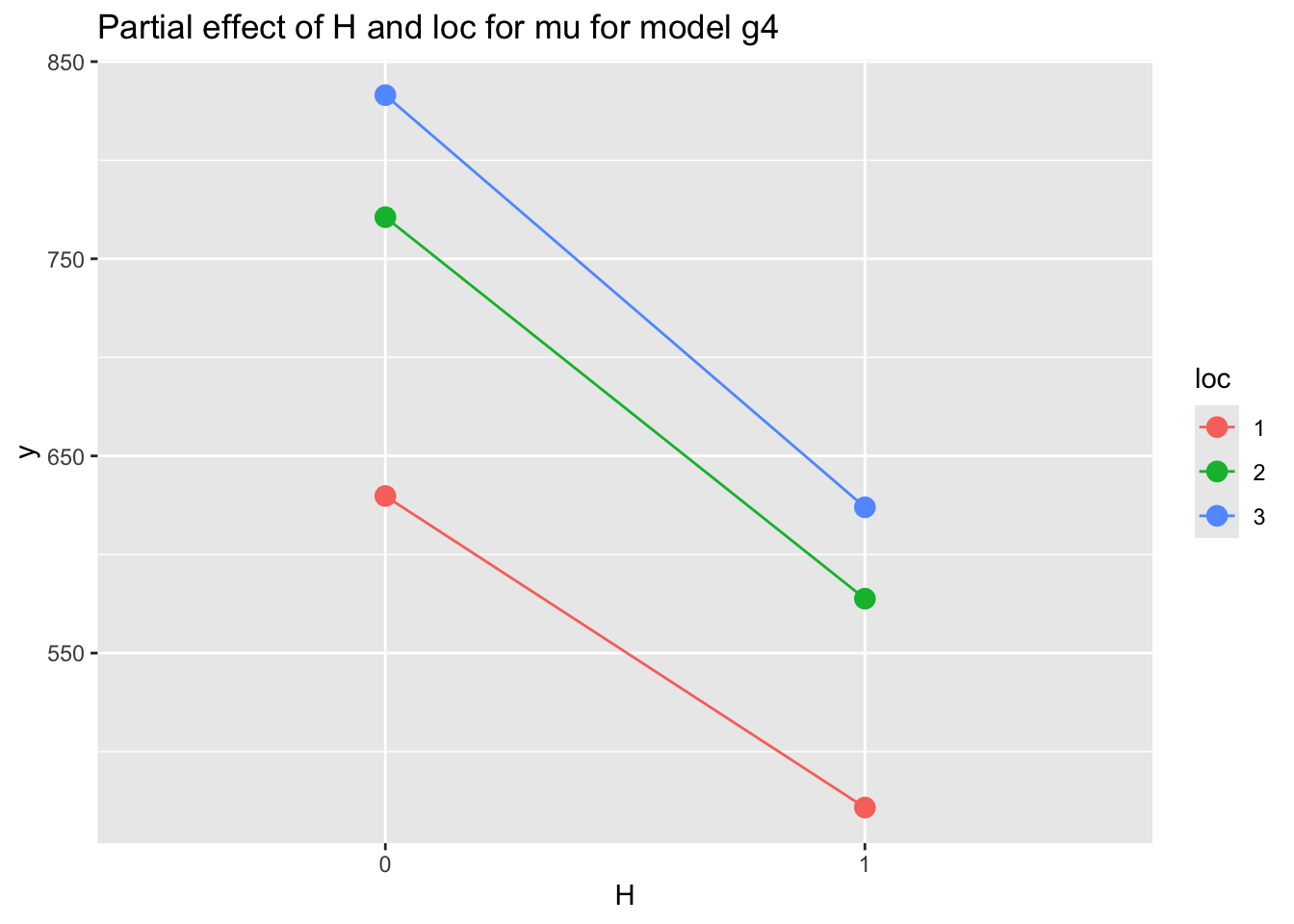

Here we use two categorical variables H and loc:

gamlss.ggplots:::pe_param(g4, c("H", "loc"))

Figure 68: Plotting partial terms from `loc` and `H`.

`pe_param_grid()`

The function pe_param_grid() show multiple plots of partial effects (main effect or first order interactions) given all other terms in the model remain fixed at predetermined values.

gamlss.ggplots:::pe_param_grid(g5, list(c("Fl", "A"), c("H", "loc")))

Figure 69: Plotting partial terms from `loc` and `H`.

gamlss.ggplots:::pe_param_grid(g5, list(c("Fl", "A"), c("H", "loc")))

Figure 70: Plotting the partial effect of terms in model `m6`. Note that the plot on the left panel is a genuine first order interaction term fitted with a 2 dimensional smoother using the interface with the package `mgcv` while the plot on the right panel is created using the two factors `H` and `loc` is just a two dimensional plot of the two main effects for `H` and `loc` respectively, since no interaction was fitted for those two terms

`pe_pdf()`

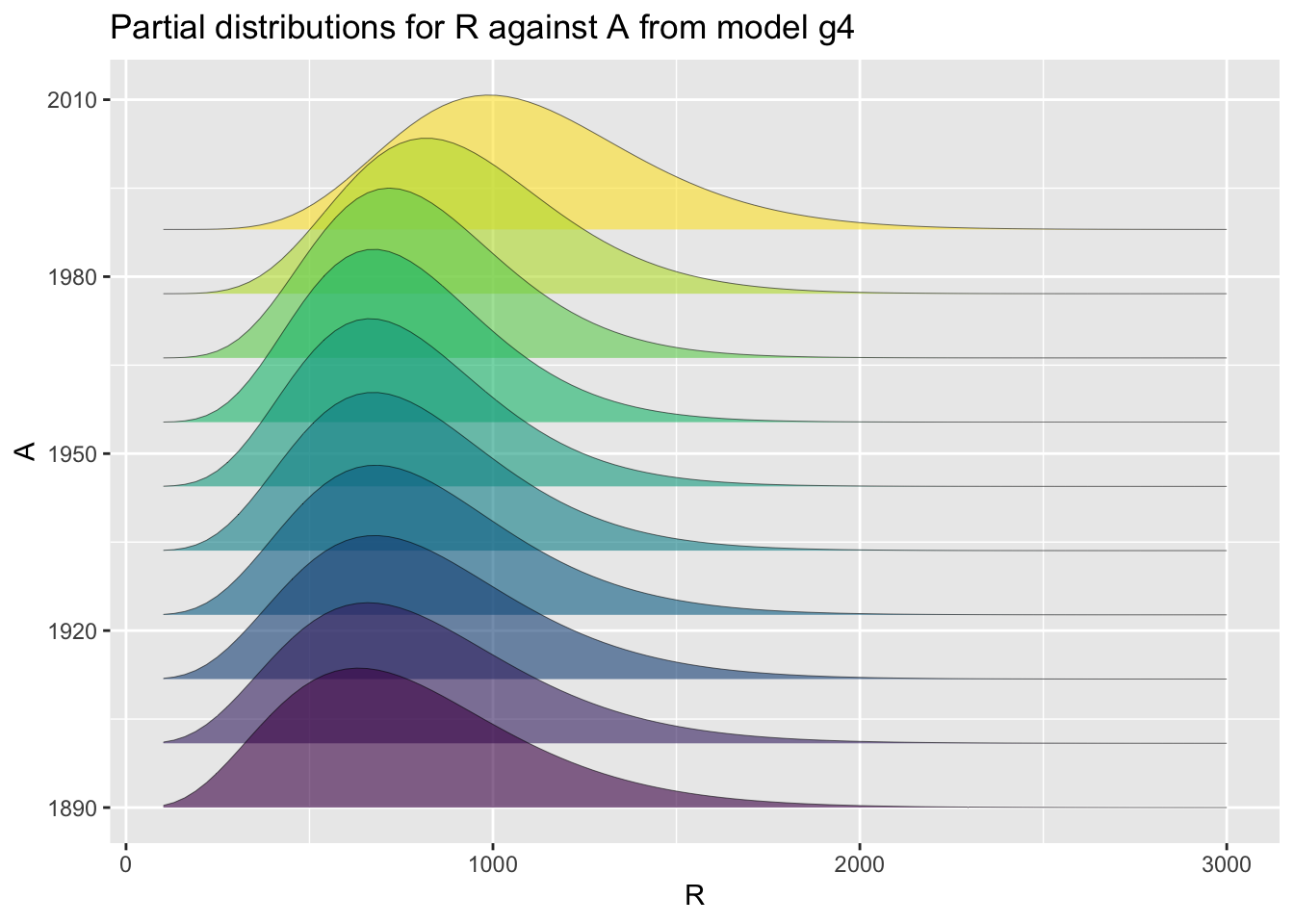

The function pe_pdf() plots the partial pdf of one specified term(s) given all other terms in the model remain fixed at predetermined values:

pe_pdf(g4, "A")

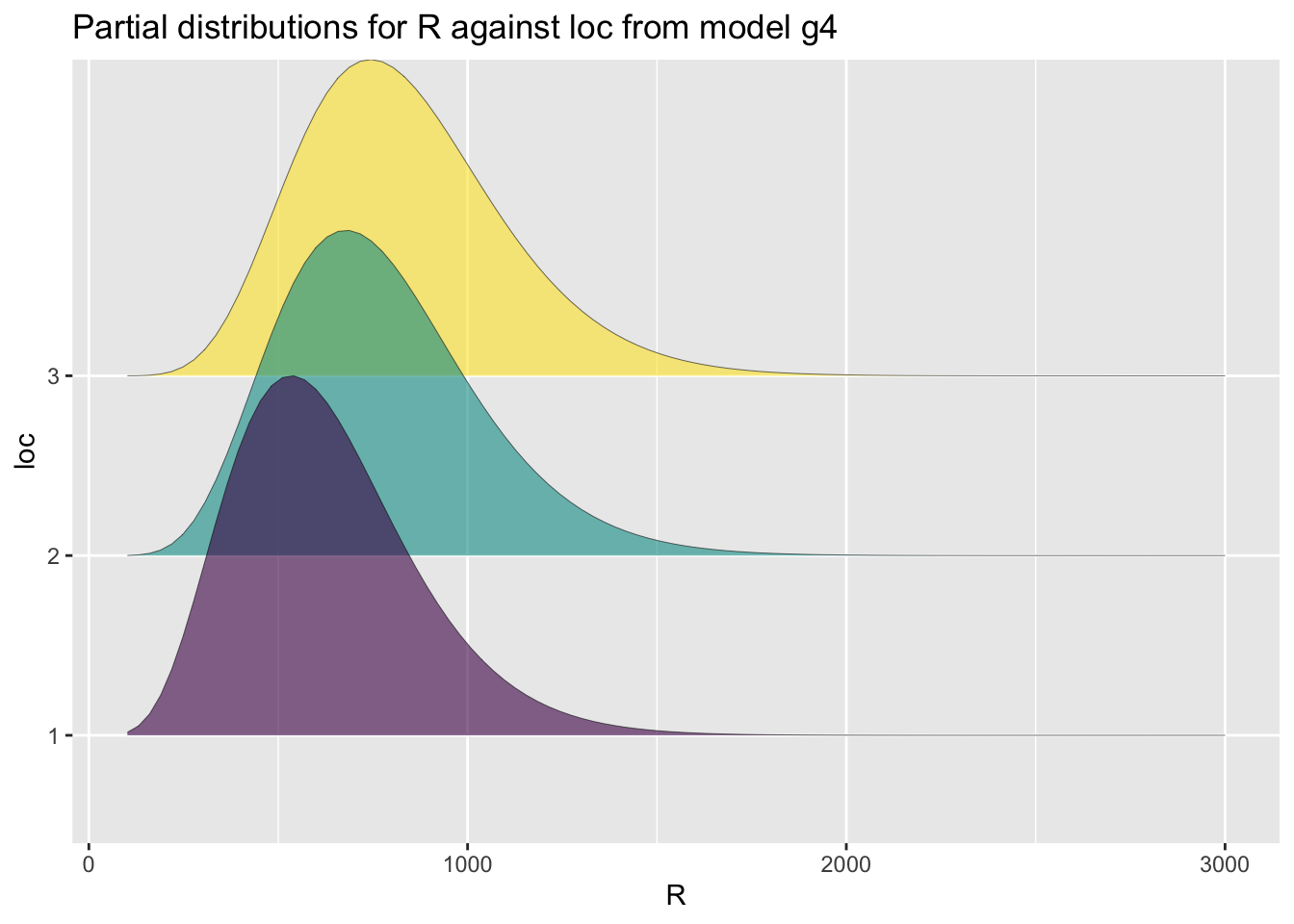

Here we plot it against a categorical variable loc:

pe_pdf(g4, "loc")

Figure 72: Plotting partial terms from `loc`.

`pe_pdf_grid()`

The function pe_pdf_grid() show multiple plots of fitted pdf’s given all other terms in the model remain fixed at predetermined values.

 gamlss.ggplots:::pe_pdf_grid(g5, c("Fl", "A","H", "loc"))

Figure 73: Plotting partial terms from `loc` and `H`.

prediction

`predict_pdf()`

Now with newdata we use `predict_pdf’:

predict_pdf(a1, newdata=abdom[c(11,15,20,25),], from=38, to=130)

Figure 74: Plotting linear leverage from a fitted GAMLSS model.

Centile estimation

Here we use three different GAMLSS models. Note that for all centile functions the name of the x-variable should appear in the plotting function as in the actual data otherwise the function will not find it:

fractional polynomials basis

m1 =gamlss(head~bfp(age,c(-2,-1,-.5,0,.5,1,2,3)),
           ~bfp(age,c(-2,-1,-.5,0,.5,1,2,3)),
           ~bfp(age,c(-2,-1,-.5,0,.5,1,2,3)),
           ~bfp(age,c(-2,-1,-.5,0,.5,1,2,3)),
           data=db, family=BCTo, trace=FALSE)

P-splines

m2 =gamlss(head~pb(age^.3),
           ~pb(age^.3),
           ~pb(age^.3),
           ~pb(age^.3),
           data=db, family=BCTo, c.crit=0.01,
           trace=FALSE, n.cyc=50)

fractional polynomials

m3 =gamlss(head~fp(age,3),
           ~fp(age,3),
           ~fp(age,3),
           ~fp(age,3),
           data=db, family=BCTo, c.crit=0.01,
           trace=FALSE, n.cyc=50)
GAIC.table(m1,m2, m3)

minimum GAIC(k= 2 ) model: m2
minimum GAIC(k= 3.84 ) model: m2
minimum GAIC(k= 8.86 ) model: m2

         df      k=2   k=3.84   k=8.86
m1 36.00000 26809.37 26875.61 27056.33
m2 22.66598 26789.02 26830.73 26944.51
m3 28.00000 26978.73 27030.25 27170.81

Warning

This needs to be translated to gamlls2 objects

Classical functions

Those the three classical GAMLSS centile functions;

centiles(m1)#  works
#######################################################################
centiles.fan(m1)#  works
#######################################################################
centiles.com(m1,m2,m3 )# works

Note that you can actually can specify the x variable and produce identical results:

centiles(m1, xvar=db$age)# works
centiles(m1, xvar=age)# works

`fitted_centiles()`

The fitted_centiles() function, produces identical results with the function centiles() of gamlss.

fitted_centiles(m2)

Figure 75: Plotting the centiles for model `m2`.

The function fitted_centiles()' can be used withfacet_wrap()`:

fitted_centiles(m2)+
  facet_wrap(cut_number(db$age, 3), scales = "free_x")

Figure 76: Plotting the centiles for models `m1`, `m2` and `m3`.

`fitted_centiles_legend()`

To have legend in the plot use the following which it takes more time.

fitted_centiles_legend(m1)

Figure 77: Plotting the centiles for model `m2`.

`model_centiles()`

If you wnat to check the centiles curves for all models used;

model_centiles(m1,m2,m3,  xvar=age)

Figure 78: Plotting the centiles for models `m1`, `m2` and `m3`.

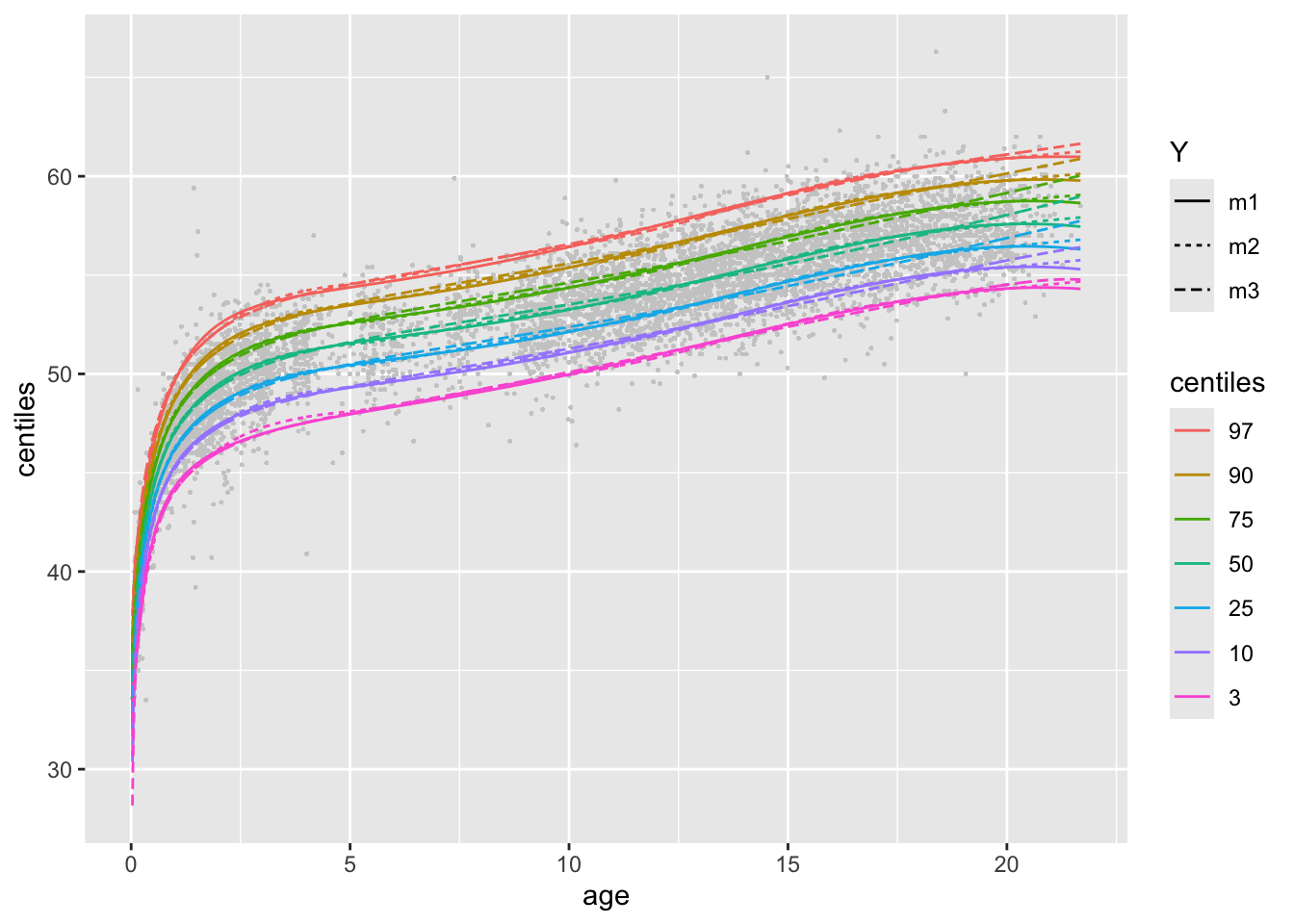

model_centiles(m1,m2,m3,  xvar=age, in.one=TRUE)

Figure 79: Plotting the centiles for models `m1`, `m2` and `m3`.

The function model_centiles(..., in.one=TRUE)' can be used withfacet_wrap()`:

model_centiles(m1,m2,m3, xvar=age, in.one=TRUE)+
  facet_wrap(cut_number(db$age, 4), scales = "free_x")# working

Figure 80: Plotting the centiles for models `m1`, `m2` and `m3`.

Boostrapping

to be continue

Introduction

Packages

Versions

Overview

Function Categories

1. Before-fitting a model functions

2. After-fitting a model functions

3. Utility functions

GAMLSS

Distributions

family_pdf()

Continuous

Discrere counts

Discrere binomial type

family_cdf

Continuous

Discrere counts

Discrere binomial type

family_cor()

Fits

The null model using Normal distribution.

Additive smooth model using Normal distribution.

Additive smooth model using gamma distribution.

Additive smooth model using s() and the gamma distribution.

Neural network using Gamma distribution

Regression trees fits using Gamma distribution

Residuals

resid_index()

Different models

Different range of an x-variable

resid_mu()

resid_quantile()

resid_xvar()

Against a continuous explanatory variable

Against a categorical explanatory variable

resid_qqplot()

For different values of x-variables

One x-variable

Two x-variables

resid_wp(), Worm plots

resid_wp_wrap()

resid_density()

The single density

The multiple densities

resid_ecdf()

resid_dtop()

resid_plots()

Different themes

resid_symmetry()

Responce

resp_mu()

resp_param()

resp_quantile

Fitted

fitted_devianceIncr()

fitted_leverage()

fitted_pdf()

fitted_cdf()

fitted_cdf_data()

fitted_centiles()

Model

model_GAIC()

model_GAIC_lollipop()

model_density()

model_qqplot()

model_wp()

model_wp_wrap()

`model_mom_bucket()

moment_bucket_wrap()

moment_gray_both() and moment_colour_both()

model_devianceIncr_diff()

model_pca()

model_centiles()

Vectors

y_hist()

y_dots()

y_ecdf()

y_acf()

y_pacf()

y_symmetry()

`family_pdf()`

`family_cdf`

`family_cor()`

The `null` model using Normal distribution.

Additive smooth model using `s()` and the gamma distribution.

`resid_index()`

`resid_mu()`

`resid_quantile()`

`resid_xvar()`

`resid_qqplot()`

`resid_wp()`, Worm plots

`resid_wp_wrap()`

`resid_density()`

`resid_ecdf()`

`resid_dtop()`

`resid_plots()`

`resid_symmetry()`

`resp_mu()`

`resp_param()`

`resp_quantile`

`fitted_devianceIncr()`

`fitted_leverage()`

`fitted_pdf()`

`fitted_cdf()`

`fitted_cdf_data()`

`fitted_centiles()`

`model_GAIC()`

`model_GAIC_lollipop()`

`model_density()`

`model_qqplot()`

`model_wp()`

`model_wp_wrap()`

`moment_bucket_wrap()`

`moment_gray_both()` and `moment_colour_both()`

`model_devianceIncr_diff()`

`model_pca()`

`model_centiles()`

`y_hist()`

`y_dots()`

`y_ecdf()`

`y_acf()`

`y_pacf()`

`y_symmetry()`

`pe_terms()`

`pe_param()`

`pe_param_grid()`

`pe_pdf()`

`pe_pdf_grid()`

`predict_pdf()`

`fitted_centiles()`

`fitted_centiles_legend()`

`model_centiles()`
